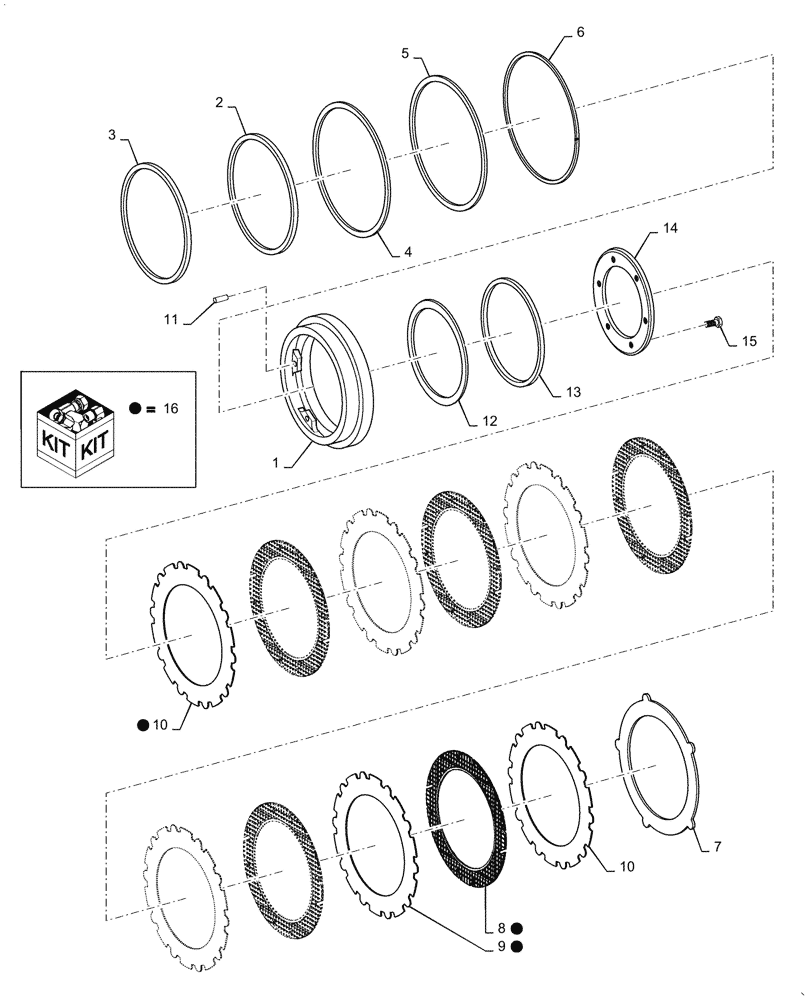

Запчасти Case 621G (33.202.040[03]) - VAR - 782122 - FRONT AND REAR AXLE BRAKE ASSEMBLY, STANDARD (33) - BRAKES & CONTROLS
![Схема запчастей Case 621G - (33.202.040[03]) - VAR - 782122 - FRONT AND REAR AXLE BRAKE ASSEMBLY, STANDARD (33) - BRAKES & CONTROLS](https://partsell.ru/storage/images/casece/5447956.png)
16
10
11
16
12
16
4
8
2
13
5
10
15
7
16
9
6
3
1
16
14
№
Артикул
Название
Примечание
Количество
1
47964988
PISTON
Brake
1шт.
2
8605314
SEAL,298mm ID x 310mm OD x 8mm Thk
Brake Piston
1шт.
3
8603577
RING
Piston Seal
1шт.
4
8605315
SEAL
Brake Piston
1шт.
5
8603579
RING
Piston Seal Support
1шт.
7
84150637
SHIM
End
1шт.
8
NSS
NOT SOLD SEPARAT
Available In Service Kit Only, Incl 16
4шт.
9
NSS
NOT SOLD SEPARAT
Available In Service Kit Only, Incl 16
3шт.
10
NSS
NOT SOLD SEPARAT
Available In Service Kit Only, Incl 16
2шт.
11
NSS
NOT SOLD SEPARAT
Incl in 1
6шт.
12
84329424
CUP WASHER
Brake Piston
1шт.
13
84329425
SPRING CUP
Brake Piston
1шт.
14
84395485
COVER PLATE
Brake Piston
1шт.
15
84395924
SCREW
Brake Piston Cover Plate
6шт.
16
87365252
REPAIR KIT
Brake Service Kit, One Kit Per Axle, Incl 8 - 10
1шт.
