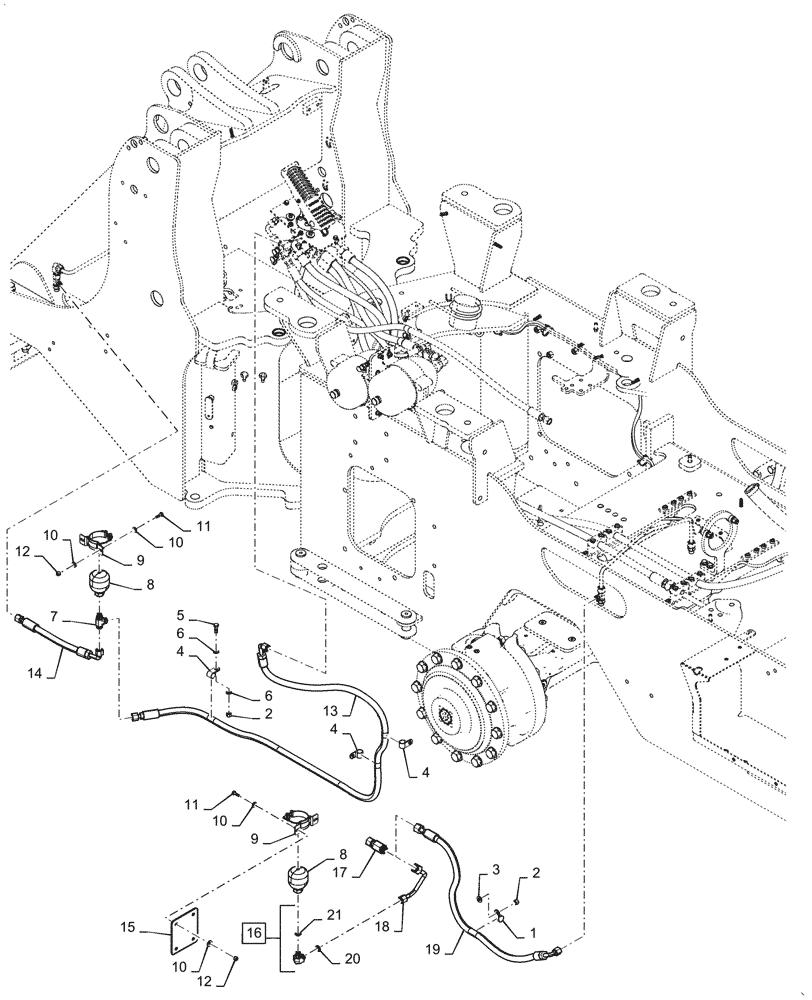

Запчасти Case 621G (33.202.040[02]) - HEAVY DUTY BRAKE LINE, AUX STEERING (33) - BRAKES & CONTROLS

1

515-24238

CLAMP,15/16", Insul, 7/16" Bolt

1шт.

2

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

3

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

5шт.

4

515-24222

CLAMP,7/8", Insul, 7/16" Bolt

3шт.

5

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

3шт.

6

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

7

84218880

RUN TEE,13/16" - 16 ORFS x 13/16" - 16 ORFS x 9/16" - 18 ORB

1шт.

8

84393492

ACCUMULATOR

Brake Damping

2шт.

9

84272713

CLAMP,73mm - 79mm

2шт.

10

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

8шт.

11

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.

12

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

13

47865102

HOSE

Brake Valve to Damper, 234mm L

1шт.

14

84384081

HOSE ASSY.

Brake Damper to Axle, 395.7mm L

1шт.

15

84382777

BRACKET, SUPPORTING

Brake Damper, Aux Steer

1шт.

16

201-332

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Incl 20, 21

1шт.

17

701-433

TEE,1" - 14 Male ORFS x 1" - 14 Male ORFS x 1" - 14 Female ORFS

Swivel

1шт.

18

84382781

HYD TUBE

Brake Damper, Aux Steer, 176.6mm L

1шт.

19

87587480

HOSE ASSY.

Brake, Rear Axle, 910mm L

1шт.

20

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Incl in 16

1шт.

21

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Incl in 16

1шт.
