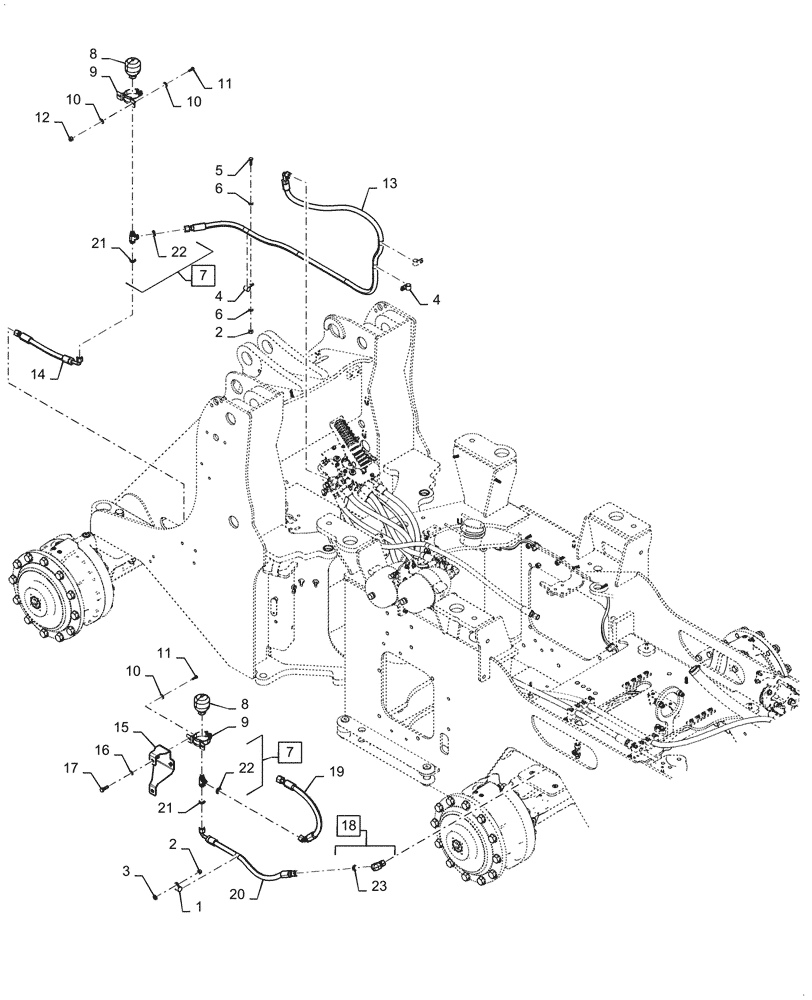

Запчасти Case 621G (33.202.030) - HEAVY DUTY BRAKE LINE (33) - BRAKES & CONTROLS

1

515-24238

CLAMP,15/16", Insul, 7/16" Bolt

1шт.

2

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

3

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.

4

515-24222

CLAMP,7/8", Insul, 7/16" Bolt

3шт.

5

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

1шт.

6

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

7

84218880

RUN TEE,13/16" - 16 ORFS x 13/16" - 16 ORFS x 9/16" - 18 ORB

Incl, 21, 22

2шт.

8

84393492

ACCUMULATOR

Brake Damping, No Aux Steering

3шт.

9

84272713

CLAMP,73mm - 79mm

2шт.

10

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

6шт.

11

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.

12

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

13

47865102

HOSE

Brake Valve to Damper, 234.2mm Lg

1шт.

14

84384081

HOSE ASSY.

Brake Damper to Axle, 395.7mm Lg

1шт.

15

84382776

BRACKET, SUPPORTING

Brake Damper, No Aux Steering

1шт.

16

895-18012

WASHER,13.5mm ID x 20mm OD x 2mm Thk

2шт.

17

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

2шт.

18

701-320

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Incl 23

1шт.

19

84382783

HOSE ASSY.

Brake Damper to Axle, No Aux Steering, 645mm Lg

1шт.

20

84382785

HOSE ASSY.

Brake Damper to Axle, No Aux Steering, 645mm Lg

1шт.

21

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

22

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

23

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.
