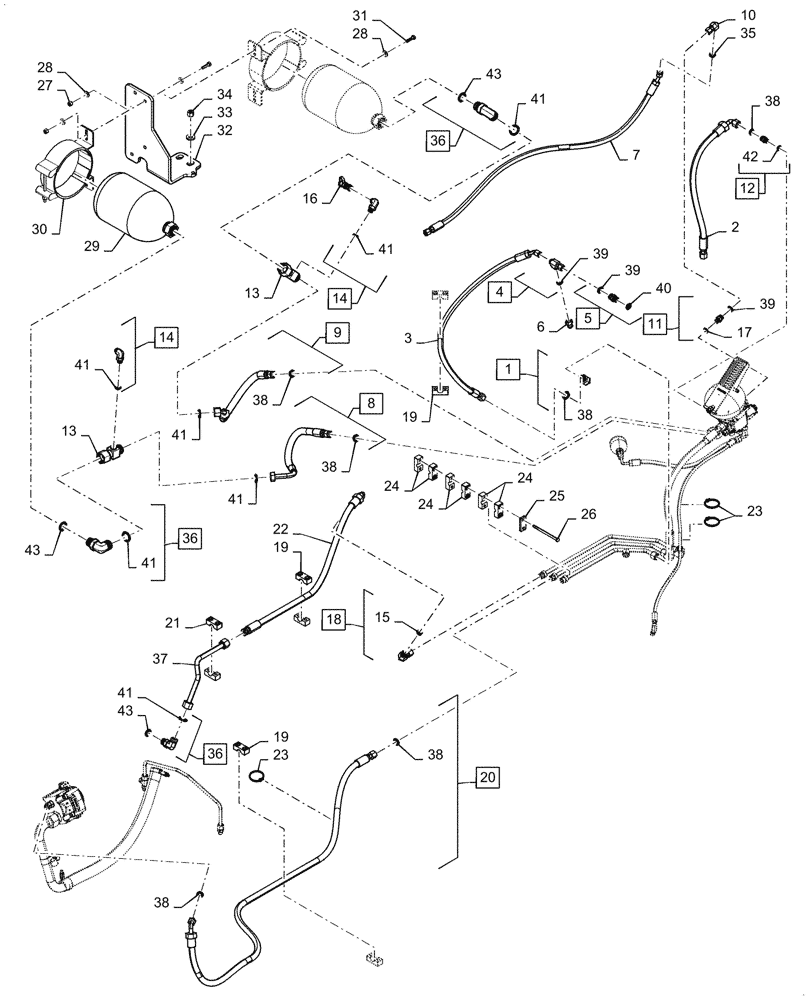

Запчасти Case 621G (33.202.010[02]) - VAR - 424224 - MAIN HYDRAULIC BRAKE (33) - BRAKES & CONTROLS

1

9840570

ELBOW,90 Degree, 13/16"-16 ORFS

Incl 38

3шт.

2

47857574

HOSE

Brake Valve Discharge, 777mm Lg

1шт.

3

47863652

HOSE

Rear Axle Brake, 715mm Lg

1шт.

4

86514261

TEE,13/16" - 16 JIC x 13/16" - 16 ORFS x 13/16" - 16 ORFS

Incl 39

2шт.

5

86579675

HYD CONNECTOR,13/16"-16 ORFS x M16 x 1.5 ORB

Incl 39, 40

4шт.

6

190316A1

COUPLING

Diagnostic

2шт.

7

47857577

HOSE

Return - Brake Valve To Tank, 1615mm Lg

1шт.

8

47888142

HOSE

Rear Brake Accumulator, 589mm Lg, Incl 38, 41

1шт.

9

47857573

HOSE

Front Brake Accumulator, 577mm Lg, Incl 38, 41

1шт.

10

47672852

TUBE

2шт.

11

86579676

HYD CONNECTOR,13/16" - 16 ORFS x M18 x 1.5 ORB

Incl 39, 45

2шт.

12

86579680

HYD CONNECTOR,1"-14 ORFS x M22 x 1.5mm ORB

Incl 38, 42

2шт.

13

372033A1

FITTING

Rear Brake Accumulator

2шт.

14

700-378

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Front Brake Accumulator, Incl 41

2шт.

15

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

16

190117A1

COUPLING

Diagnostic

2шт.

17

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

2шт.

18

84989411

ELBOW,90 Degree, 9/16"-18 ORFS x 9/16"-18 Fem Sw

Incl 15

1шт.

19

367489A1

BLOCK

Tube Mounting

4шт.

20

47767303

HOSE

Brake Pump Pressure, 2478.4mm Lg, Incl 38

1шт.

21

379374A1

BLOCK

Tube Mounting

3шт.

22

87658724

HOSE ASSY.

Fan Supply, 1049mm Lg

1шт.

23

L11541

CABLE TIE,203.2mm L, Nylon

3шт.

24

8500210

CLAMP

Block, Tube Mounting

6шт.

25

367658A1

PLATE

Clamp Cover

4шт.

26

827-10150

BOLT,Hex, M10 x 1.5 x 150mm, Cl 10.9

6шт.

27

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

28

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

8шт.

29

87728740

ACCUMULATOR

Service Brake

2шт.

30

8501315

CLAMP,167mm - 175mm

Accumulator

2шт.

31

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

4шт.

32

47857657

BRACKET

Brake Accumulator

1шт.

33

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

3шт.

34

832-10412

NUT,M12 x 1.75, Cl 8

4шт.

35

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

36

86579697

ELBOW,90 Degree, 1-3/16"-12 ORFS x M27 x 2.0 ORB

Incl 41, 43

1шт.

37

87658725

TUBE,19.05 mm OD x 290 mm L

Fan Valve

1шт.

38

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

5шт.

39

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

40

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

4шт.

41

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

3шт.

42

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

43

14438185

O-RING,24mm ID x 3mm

1шт.
