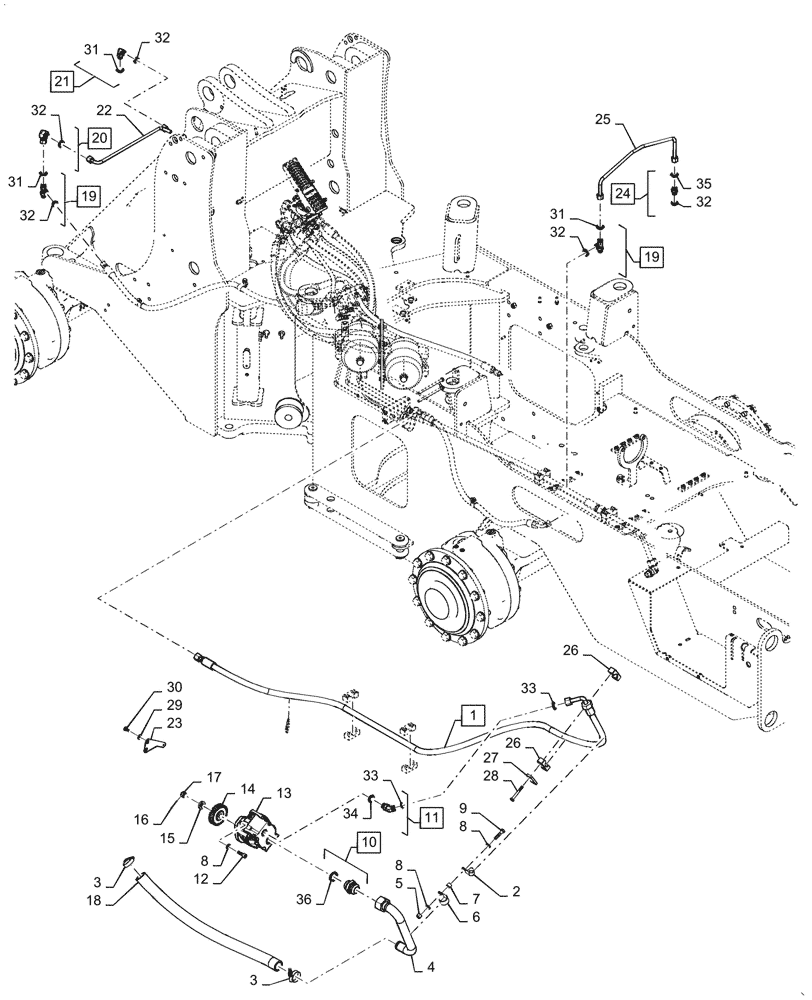

Запчасти Case 621G (33.202.010[01]) - MAIN HYDRAULIC BRAKE (33) - BRAKES & CONTROLS

1

47767303

HOSE

Assy, Brake Pump Pressure, Incl 33

1шт.

2

515-25254

CLAMP,1", Insul, 1/2" Bolt

1шт.

3

76084984

CLAMP,45mm - 67mm, Worm Clamp

2шт.

4

87554993

RIGID TUBE,28 mm ID x 38 mm OD x 310, 105 mm L

1шт.

5

832-10412

NUT,M12 x 1.75, Cl 8

1шт.

6

515-25381

CLAMP,1 1/2", Insul, 1/2" Bolt

1шт.

7

316937A1

SPACER,12.2mm ID x 19.1mm OD x 14mm Thk

Hood Linkage

1шт.

8

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

9

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

1шт.

10

87555427

HYD CONNECTOR

1 7/8"-12 SAE J514, 37° Flare x M33 x 2 ORB, Incl 36

1шт.

11

86639053

ELBOW,45 Degree, 1"-14 ORFS x M22 x 1.5 ORB

Incl 33, 34

1шт.

12

864-12035

HEX SOC SCREW,M12 x 35mm, Cl 8.8

2шт.

13

47526503

HYDRAULIC PUMP

25 CC Gear

1шт.

14

87389871

GEAR

Accessory Drive

1шт.

15

87373112

WASHER,20mm ID x 36mm OD x 7.5mm Thk

Gear Mounting

1шт.

16

733-3232

COTTER PIN,M3.2 x 32

1шт.

17

425-1310

SLOTTED NUT,5/8"-18, G5

1шт.

18

84399612

HOSE,38.1mm ID x 850mm L, SAE 100R4

Brake Pump Suction

1шт.

19

86579702

TEE,13/16" - 16 ORFS x 13/16" - 16 ORFS x M18 x 1.5 ORB

Incl 31, 32

2шт.

20

84989383

90 ELBOW,90 Degree, 13/16"-16 ORFS x 13/16"-16 Fem Sw

Incl 32

1шт.

21

86579691

90 ELBOW,90 Degree, 13/16"-18 ORFS x M18 x 1.5 ORB

Incl 31, 32

1шт.

22

87552628

TUBE,10.2 mm ID x 12.7 mm OD x 480, 50 mm L

1шт.

23

47542869

PLATE

Harness Routing

1шт.

24

86579676

HYD CONNECTOR,13/16" - 16 ORFS x M18 x 1.5 ORB

Incl 32, 35

2шт.

25

47985747

TUBE

520mm L

1шт.

26

8606002

CLAMP

Block Tube Mounting

1шт.

27

367658A1

PLATE

Clamp Cover

4шт.

28

827-10075

BOLT,Hex, M10 x 1.5 x 75mm, Cl 10.9

2шт.

29

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

30

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

2шт.

31

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

2шт.

32

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

33

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

34

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

35

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

36

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.
