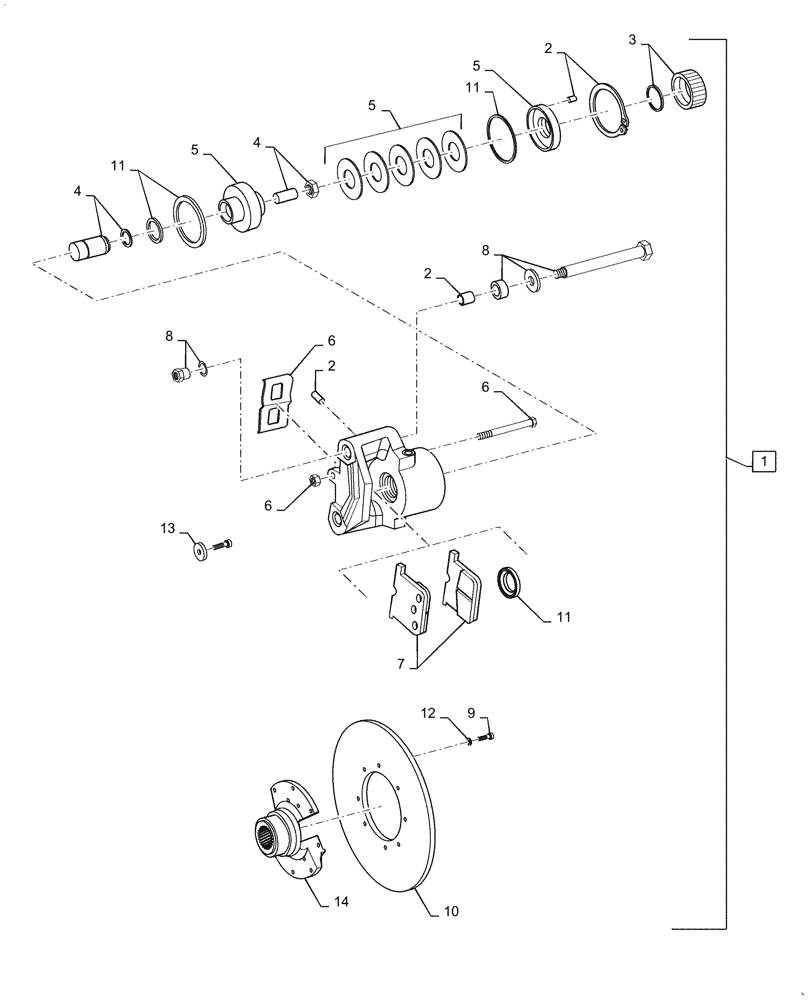

Запчасти Case 621G (33.110.010) - PARKING BRAKE (33) - BRAKES & CONTROLS

1

84252195

PARKING BRAKE

Incl 2 - 14

1шт.

2

84252199

SNAP RING

Piston Cap Retaining, Incl Piston Spacers

1шт.

3

84252201

CAP

End

1шт.

4

84252202

PIN

Break Piston

1шт.

5

84252205

PISTON

Repair Kit, Incl Piston Spacers, Gland, O-ring and Retaining Ring

1шт.

6

84252207

KIT

Repair Kit, Incl Screw, Plate and Nut

1шт.

7

84252208

BRAKE PAD

Set

1шт.

8

84252209

SET SCREW

Incl O-ring

1шт.

9

84357377

HEX SOC SCREW

Disc Mounting

6шт.

10

8603328

BRAKE DISC

Parking

1шт.

11

84252197

SEAL

Piston

1шт.

11

87757169

SCREEN

Piston

1шт.

12

84357378

WASHER

Disc Mounting

6шт.

13

84252210

WASHER

Mounting Hardware

1шт.

14

8603327

FLANGE

Disc Coupling

1шт.
