Запчасти Case 621G (27.120.010) - VAR - 782122 - FINAL DRIVE ASSEMBLY, STANDARD (27) - REAR AXLE SYSTEM

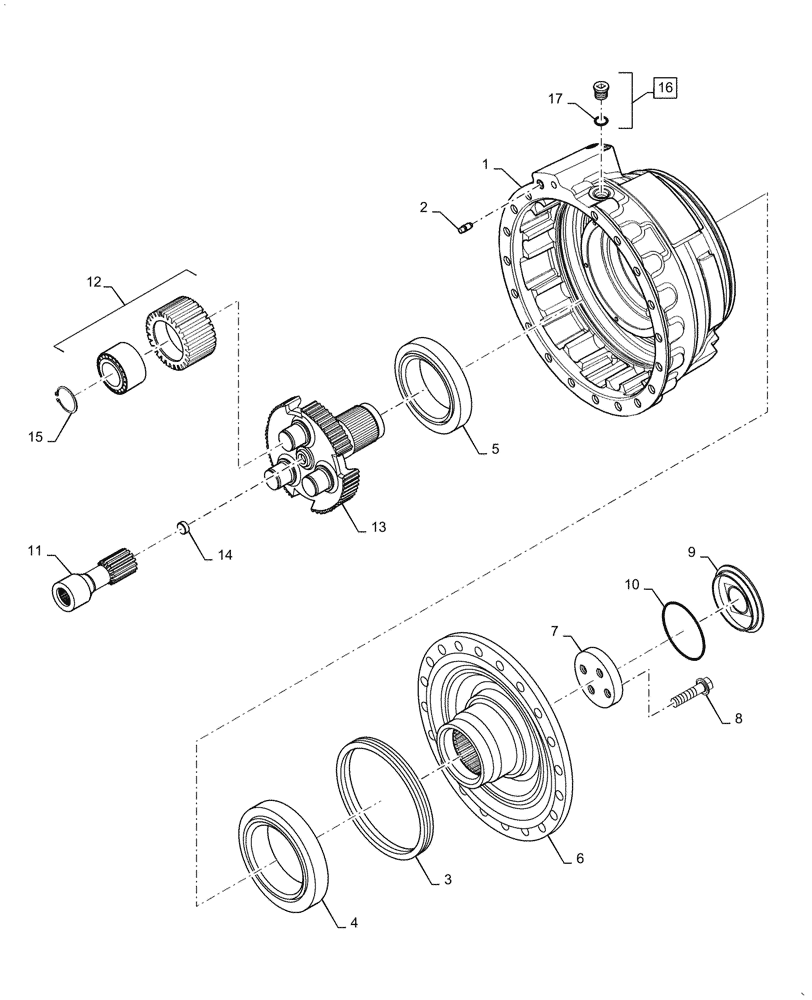

Схема запчастей Case 621G - (27.120.010) - VAR - 782122 - FINAL DRIVE ASSEMBLY, STANDARD (27) - REAR AXLE SYSTEM
5
2
3
15
14
4
8
11
16
12
7
9
6
17
13
10
1

Артикул

Название

Примечание

Количество

1

84496956

HOUSING

Final Drive

1шт.

2

76088742

VALVE

Breather

1шт.

3

84150634

SEAL

Wheel End

1шт.

4

47852582

SPH ROLLER BEARING

Cup and Cone

1шт.

5

87743209

TAPERED BEARING

Cup and Cone

1шт.

6

87743210

SHAFT

Output

1шт.

7

87743211

COVER

Shaft

1шт.

8

84329412

LOCK SCREW

Cover Mounting

4шт.

9

8603567

COVER

Wheel Flange Nut

1шт.

10

8603527

O-RING

Wheel Flange Nut Cover

1шт.

11

84395432

SUN GEAR

Planetary Carrier

1шт.

12

84497842

GEAR

Planetary

3шт.

13

84395439

SHAFT, PLANETARY CAR

Assembly

1шт.

14

8603571

PLUG

Planetary Carrier

1шт.

15

87358698

SNAP RING

Bearing Retainer

3шт.

16

84401558

PLUG

Housing, Incl 17

1шт.

17

8603208

O-RING,2mm Thk x 21mm ID

1шт.

Выбрано товаров: 17
