(27.106.030) - VAR - 424235 - DIFFERENTIAL ASSEMBLY, HEAVY DUTY

Запчасти Case 621G (27.106.030) - VAR - 424235 - DIFFERENTIAL ASSEMBLY, HEAVY DUTY (27) - REAR AXLE SYSTEM

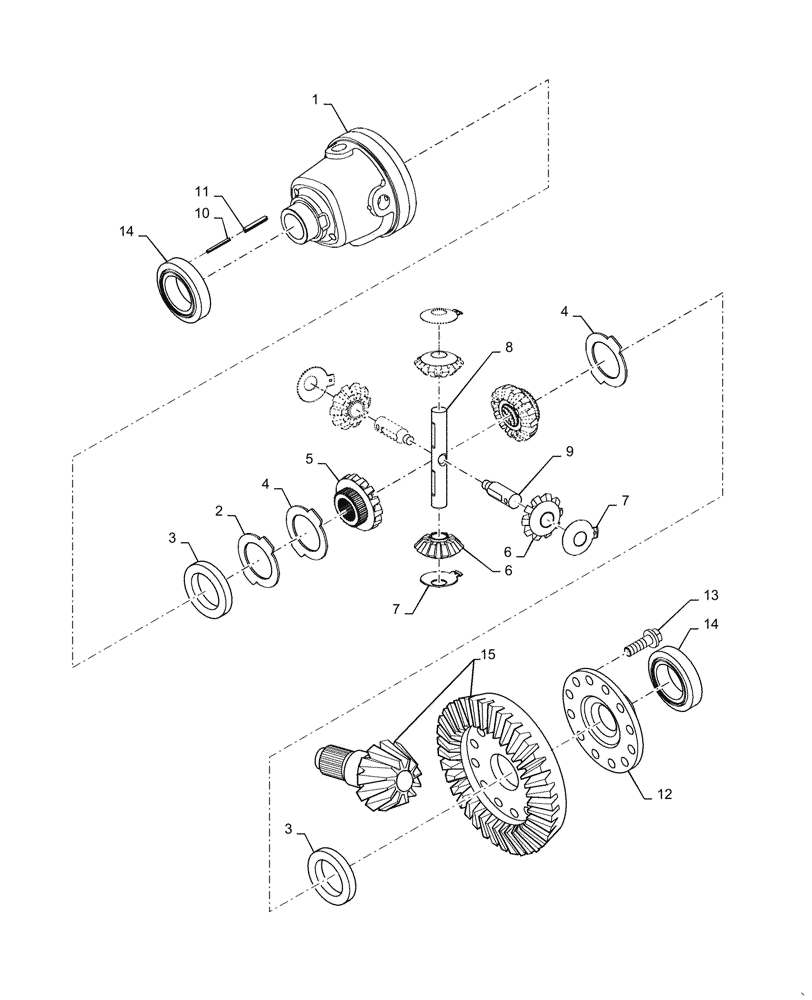

Схема запчастей Case 621G - (27.106.030) - VAR - 424235 - DIFFERENTIAL ASSEMBLY, HEAVY DUTY (27) - REAR AXLE SYSTEM
4
15
6
5
7
3
6
13
4
14
12
11
3
14
9
10
8
7
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84496901

HOUSING

Differential

1шт.

2

87742940

CLUTCH PLATE

Differential

1шт.

3

84395932

RING

Differential

2шт.

4

87742943

THRUST WASHER

Differential

2шт.

5

84496911

GEAR

Bevel Axle

2шт.

6

84496902

GEAR

Bevel Diff

4шт.

7

84496904

WASHER

Thrust

4шт.

8

84496905

SHAFT

Long

1шт.

9

84496906

SHAFT

Short

2шт.

10

84024216

LOCK PIN,5mm OD x 50mm L, Slotted

2шт.

11

87742960

PIN

Roller Bearing

2шт.

12

87742961

COVER

Housing

1шт.

13

184716A1

SCREW

Bevel Gear Cover Screw

12шт.

14

8603222

ROLLER BEARING,65mm ID x 140mm OD x 36mm W

2шт.

15

87743751

BEVEL GEAR

Gear and Pinion Set

1шт.
