(27.106.020) - VAR - 782122 - DIFFERENTIAL ASSEMBLY, STANDARD

Запчасти Case 621G (27.106.020) - VAR - 782122 - DIFFERENTIAL ASSEMBLY, STANDARD (27) - REAR AXLE SYSTEM

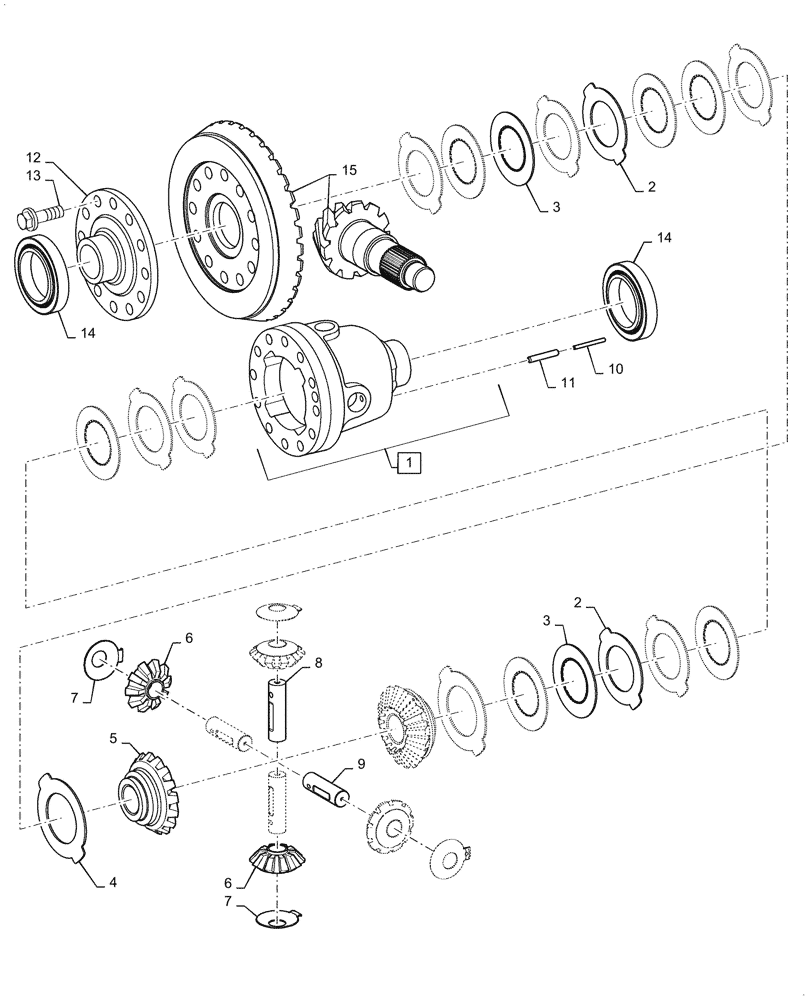

Схема запчастей Case 621G - (27.106.020) - VAR - 782122 - DIFFERENTIAL ASSEMBLY, STANDARD (27) - REAR AXLE SYSTEM
11
5
6
12
6
2
4
7
2
10
15
14
9
14
3
13
1
7
8
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84496901

HOUSING

Differential Case

1шт.

2

87742939

CLUTCH PLATE

1.8mm Outer

1шт.

2

87742940

CLUTCH PLATE

1.9mm Outer

1шт.

2

87742941

DISC,Axle, Friction

2.0mm Outer

1шт.

3

87742942

CLUTCH DISC

Inner

8шт.

4

87742943

THRUST WASHER

Gear

2шт.

5

84496911

GEAR

Bevel Axle

2шт.

6

84496902

GEAR

Bevel Diff

4шт.

7

84496904

WASHER

Thrust

4шт.

8

84496905

SHAFT

Gear

1шт.

9

84496906

SHAFT

Short Pin

2шт.

10

84475471

ROLL PIN

Differential Case Housing

2шт.

11

87742960

PIN

Differential Case Housing

2шт.

12

87742961

COVER

Housing

1шт.

13

184716A1

SCREW

Differential Housing

12шт.

14

8603222

ROLLER BEARING,65mm ID x 140mm OD x 36mm W

2шт.

15

84395480

BEVEL GEAR

Gear and Pinion, Serviced as a Set

1шт.
