(27.100.010) - VAR - 782122, 424235 - REAR AXLE ASSEMBLY, STANDARD AND HEAVY DUTY

Запчасти Case 621G (27.100.010) - VAR - 782122, 424235 - REAR AXLE ASSEMBLY, STANDARD AND HEAVY DUTY (27) - REAR AXLE SYSTEM

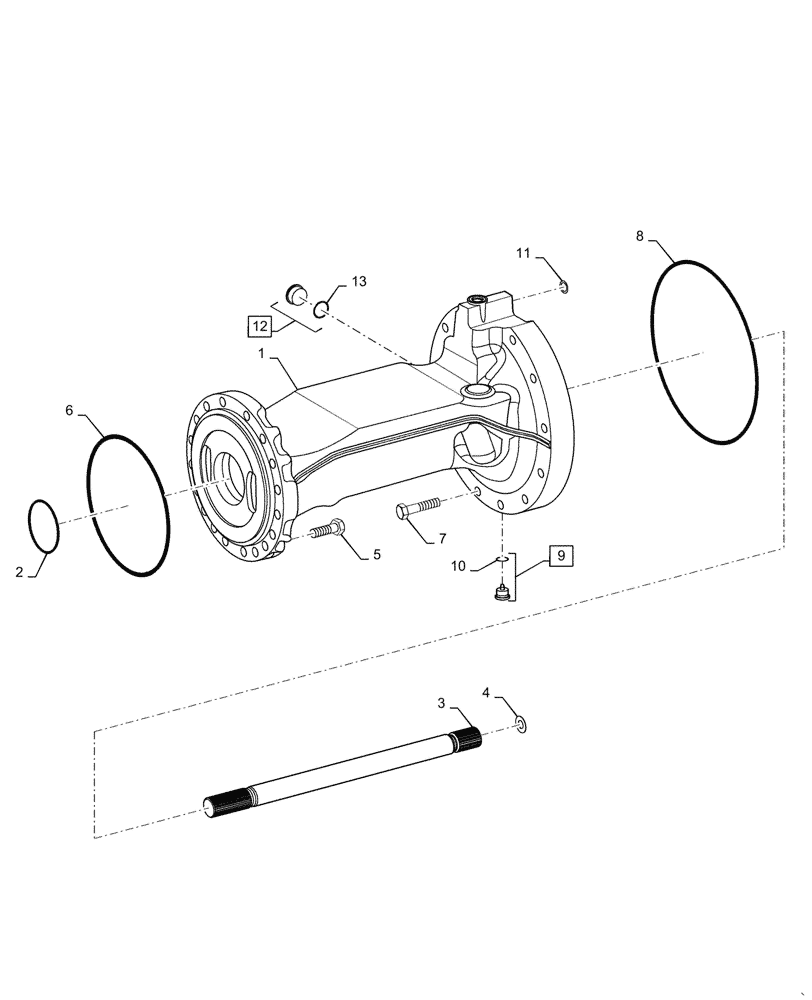

Схема запчастей Case 621G - (27.100.010) - VAR - 782122, 424235 - REAR AXLE ASSEMBLY, STANDARD AND HEAVY DUTY (27) - REAR AXLE SYSTEM
8
9
3
13
11
7
12
5
1
4
6
2
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84395838

AXLE HOUSING

CE Gray

1шт.

2

87742964

SHIM,0.8mm Thk

1шт.

2

87742965

SHIM,0.9mm Thk

1шт.

2

87743201

SHIM,1mm Thk

1шт.

2

87743202

SHIM,1.1mm Thk

1шт.

2

87743203

SHIM,1.2mm Thk

1шт.

2

84150625

SHIM,0.6mm Thk

1шт.

2

84150626

SHIM,0.65mm Thk

1шт.

2

84150627

SHIM,0.7mm Thk

1шт.

2

84150628

SHIM,0.75mm Thk

1шт.

2

84150629

SHIM,0.85mm

1шт.

2

84150630

SHIM,0.95mm Thk

1шт.

2

84150632

SHIM,1.05mm Thk

1шт.

2

84150633

SHIM,1.15mm Thk

1шт.

3

87743204

SHAFT

Stub

1шт.

4

8603730

SHIM,0.2mm Thk

1шт.

4

8603669

SHIM,0.4mm Thk

1шт.

4

8603731

SHIM,1mm Thk

1шт.

4

8603732

SHIM,1.5mm Thk

1шт.

5

71448875

SCREW

Axle Hub Mounting

18шт.

6

87743205

O-RING

Hub Sealing

1шт.

7

514-1107

BOLT,Hex, M18 x 1.5 x 85mm, Cl 10.9

12шт.

8

8603674

O-RING,2.5mm Thk x 362mm ID, 70 Duro

1шт.

9

84352083

PLUG

Lower Axle Houing, Incl 10

1шт.

10

8603208

O-RING,2mm Thk x 21mm ID

1шт.

11

87746031

O-RING

Vent Sealing

1шт.

12

84262309

PLUG

Upper Housing, Incl 13

1шт.

13

84395282

O-RING

Upper Houing Plug

1шт.
