(25.102.050) - VAR - 424235 - DIFFERENTIAL ASSEMBLY, HEAVY DUTY

Запчасти Case 621G (25.102.050) - VAR - 424235 - DIFFERENTIAL ASSEMBLY, HEAVY DUTY (25) - FRONT AXLE SYSTEM

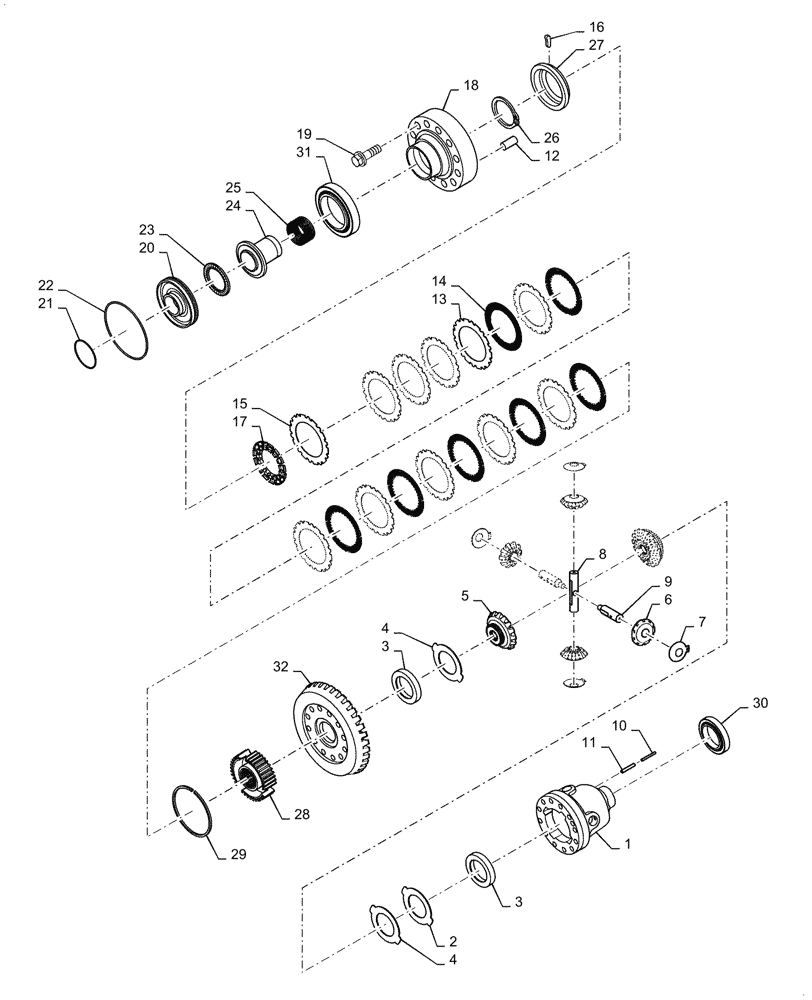

Схема запчастей Case 621G - (25.102.050) - VAR - 424235 - DIFFERENTIAL ASSEMBLY, HEAVY DUTY (25) - FRONT AXLE SYSTEM
8
10
15
31
5
7
4
14
1
18
24
3
3
21
29
30
2
32
13
6
11
23
16
25
22
19
20
17
27
4
28
9
26
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84496901

HOUSING

Differential

1шт.

2

87742940

CLUTCH PLATE

Differential

1шт.

3

84395932

RING

Differential

2шт.

4

87742943

THRUST WASHER

Differential

2шт.

5

84496911

GEAR

Bevel Axle

2шт.

6

84496902

GEAR

Bevel Differential

4шт.

7

84496904

WASHER

Thrust

4шт.

8

84496905

SHAFT

Differential Long

1шт.

9

84496906

SHAFT

Differential Short

2шт.

10

84475471

ROLL PIN

Outer Housing

2шт.

11

87742960

PIN

Outer Housing

2шт.

12

84395942

PIN

Differential Cover

6шт.

13

84395981

CLUTCH & DISC ASSY

Outer 1.2mm

1шт.

13

84395994

CLUTCH & DISC ASSY

Outer 1.3mm

1шт.

13

84396046

CLUTCH & DISC ASSY

Outer 1.4mm

1шт.

14

84396051

CLUTCH & DISC ASSY

Inner

7шт.

15

84396069

CLUTCH & DISC ASSY

Outer

1шт.

16

84353934

LEVER

Sleeve

12шт.

17

84396078

CAGE

End Cap

1шт.

18

84396082

COVER

Forward Cover

1шт.

19

84396084

BOLT

Forward Cover Mounting

12шт.

20

84396088

PISTON

Forward Cover

1шт.

21

71449056

GASKET

Piston

1шт.

22

71448649

SEALING RING

Forward Cover

1шт.

23

84396096

ROLLER CAGE BEARING

Cup and Cone, Forward Cover

1шт.

24

84396099

SLEEVE

Compression Spring

1шт.

25

84396103

COMPRESSION SPRING

Forward Cover

1шт.

26

84407161

CIRCLIP

Sleeve Retaining

1шт.

27

84396106

SLEEVE,0.7mm ID x 3.7mm OD x 4.5mm L

1шт.

28

84396110

SPLINED COUPLING

Gear

1шт.

29

73143044

SNAP RING

Splined Coupling

1шт.

30

8603222

ROLLER BEARING,65mm ID x 140mm OD x 36mm W

1шт.

31

84396115

TAPERED BEARING

Differential Housing

1шт.

32

87742937

GEAR SET

Gear and Pinion Set

1шт.
