(25.108.020) - VAR - 424235 - FINAL DRIVE ASSEMBLY, HEAVY DUTY

Запчасти Case 521G (25.108.020) - VAR - 424235 - FINAL DRIVE ASSEMBLY, HEAVY DUTY (25) - FRONT AXLE SYSTEM

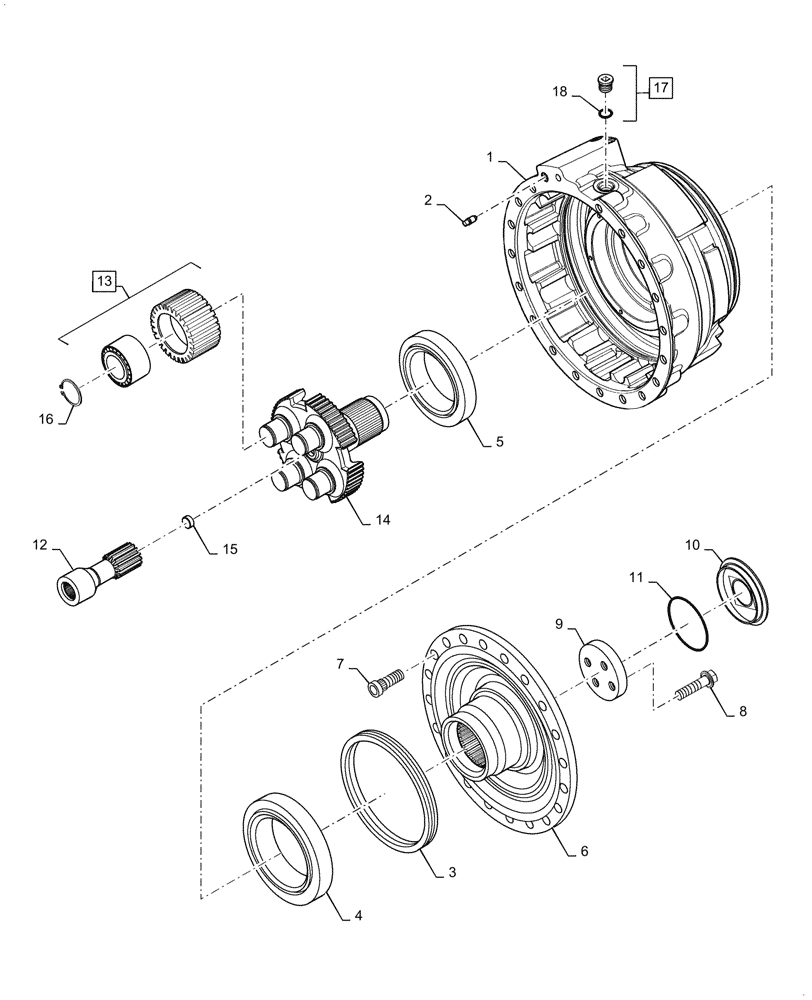

Схема запчастей Case 521G - (25.108.020) - VAR - 424235 - FINAL DRIVE ASSEMBLY, HEAVY DUTY (25) - FRONT AXLE SYSTEM
5
11
10
17
6
1
18
3
7
14
2
8
15
16
4
13
9
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84396154

HOUSING

Final Drive

1шт.

2

76088742

VALVE

Breather

1шт.

3

87588611

SEAL

Wheel End

1шт.

4

47852582

SPH ROLLER BEARING

Cone and Cup, Internal Housing

1шт.

5

87743209

TAPERED BEARING

Cone and Cup, External Housing

1шт.

6

84396164

FLANGE

Wheel, Plate

1шт.

7

84497836

SCREW

Mounting

12шт.

8

84329412

LOCK SCREW

Cover, Mounting

4шт.

9

87743211

COVER

Final Drive

1шт.

10

8603567

COVER

Wheel Flange

1шт.

11

8603527

O-RING

Cover to Flange

1шт.

12

84395432

SUN GEAR

Final Drive

1шт.

13

84497842

GEAR

Planetary Bearing

4шт.

14

84497844

PLANET CARRIER

Assembly

1шт.

15

8603571

PLUG

Planet Carrier

1шт.

16

87358698

SNAP RING

Planetary Gear

4шт.

17

84401558

PLUG

Final Drive Housing, Incl 18

1шт.

18

8603208

O-RING,2mm Thk x 21mm ID

Housing Plug

1шт.
