Запчасти Case 521G (25.100.030) - VAR - 782122, 424235 - FRONT AXLE HOUSING, STANDARD AND HEAVY DUTY (25) - FRONT AXLE SYSTEM

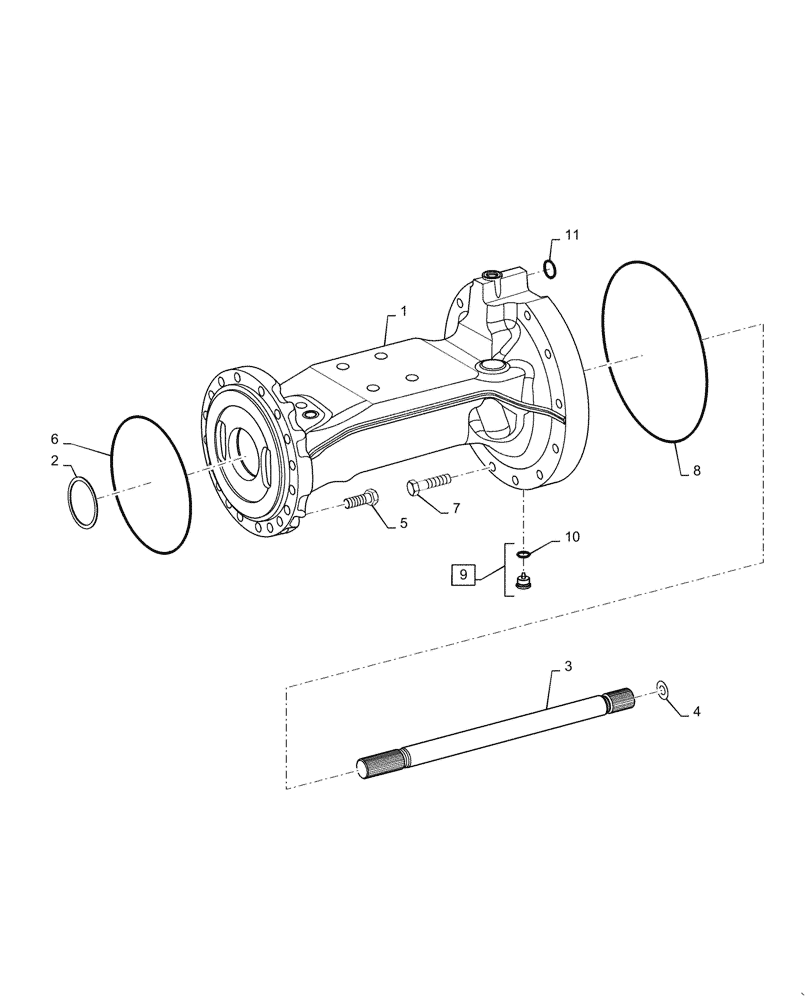

Схема запчастей Case 521G - (25.100.030) - VAR - 782122, 424235 - FRONT AXLE HOUSING, STANDARD AND HEAVY DUTY (25) - FRONT AXLE SYSTEM
5
11
4
10
9
6
2
1
7
8
3

Артикул

Название

Примечание

Количество

1

84395757

AXLE HOUSING

Front

1шт.

2

87742964

SHIM,0.8mm Thk

0.8 mm

1шт.

2

87742965

SHIM,0.9mm Thk

0.9 mm

1шт.

2

87743201

SHIM,1mm Thk

1.0 mm

1шт.

2

87743202

SHIM,1.1mm Thk

1.1 mm

1шт.

2

87743203

SHIM,1.2mm Thk

1.2 mm

1шт.

2

84150625

SHIM,0.6mm Thk

0.6 mm

1шт.

2

84150626

SHIM,0.65mm Thk

0.65 mm

1шт.

2

84150627

SHIM,0.7mm Thk

0.7 mm

1шт.

2

84150628

SHIM,0.75mm Thk

0.75 mm

1шт.

2

84150629

SHIM,0.85mm

0.85 mm

1шт.

2

84150630

SHIM,0.95mm Thk

0.95 mm

1шт.

2

84150632

SHIM,1.05mm Thk

1.05 mm

1шт.

2

84150633

SHIM,1.15mm Thk

1.15 mm

1шт.

3

87743204

SHAFT

Stub

1шт.

4

8603730

SHIM,0.2mm Thk

1шт.

4

8603669

SHIM,0.4mm Thk

1шт.

4

8603731

SHIM,1mm Thk

1шт.

4

8603732

SHIM,1.5mm Thk

1шт.

5

71448875

SCREW

Mounting

18шт.

6

87743205

O-RING

Front Axle

1шт.

7

514-1107

BOLT,Hex, M18 x 1.5 x 85mm, Cl 10.9

12шт.

8

8603674

O-RING,2.5mm Thk x 362mm ID, 70 Duro

1шт.

9

84352083

PLUG

Front Axle Housing, Incl 10

1шт.

10

8603208

O-RING,2mm Thk x 21mm ID

1шт.

11

87746031

O-RING

Front Axle Housing

1шт.

Выбрано товаров: 26
