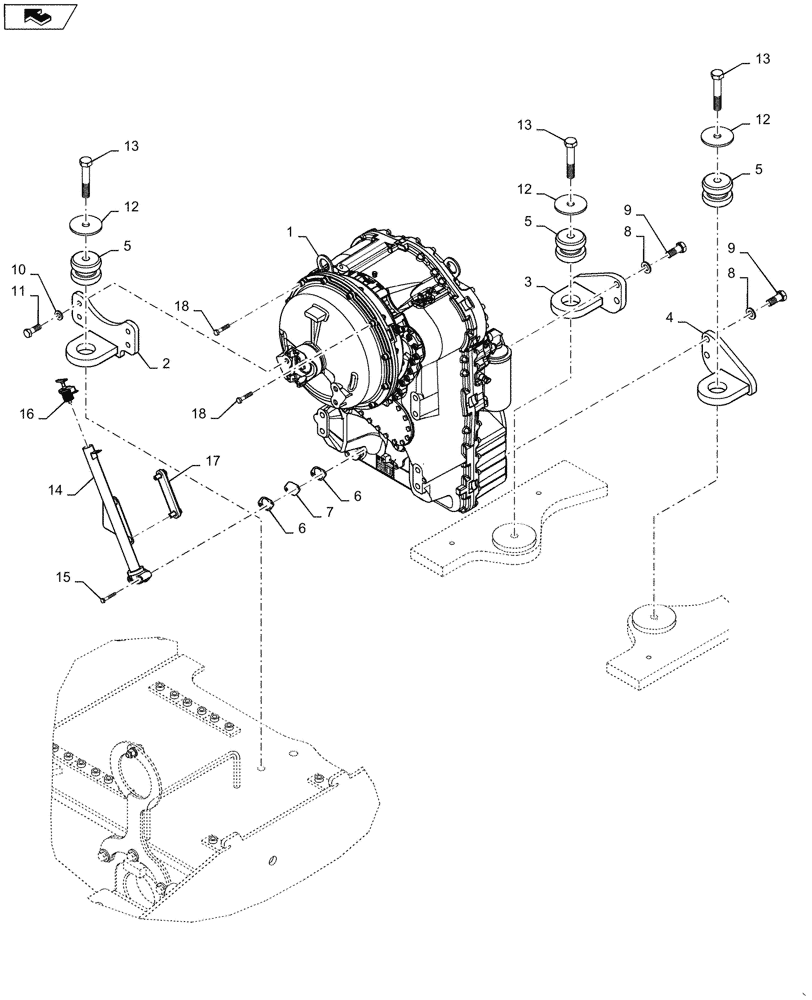

Запчасти Case 521G (21.113.020) - VAR - 424224 - TRANSMISSION MOUNTING, 4 SPEED (21) - TRANSMISSION

1

47752583

TRANSMISSION

4 Speed

1шт.

2

357661A1

BRACKET

Transmission Top

1шт.

3

357657A1

BRACKET

Transmission Left

1шт.

4

357654A1

BRACKET

Transmission Right

1шт.

5

361187A1

ISOLATOR

3.82" L x 3.43" W

3шт.

6

8603281

GASKET

Transmission Fill

2шт.

7

E135229

FILTER SCREEN

Transmission Fill

1шт.

8

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

4шт.

9

627-20050

BOLT,Hex, M20 x 2.5 x 50mm, Cl 10.9, Full Thd

4шт.

10

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

11

627-16045

BOLT,Hex, M16 x 2 x 45mm, Cl 10.9, Full Thd

4шт.

12

379611A1

WASHER

986.6mm OD x 23.8mm ID x 6.4mm Thk

3шт.

13

827-22120

BOLT,Hex, M22 x 2.5 x 120mm, Cl 10.9

3шт.

14

386349A1

TUBE

Transmission Fill

1шт.

15

827-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 10.9

2шт.

16

443565A1

CAP

Transmission Fill

1шт.

17

86988366

SIGHTGLASS

Transmission Fluid Level

1шт.

18

827-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 10.9

2шт.
