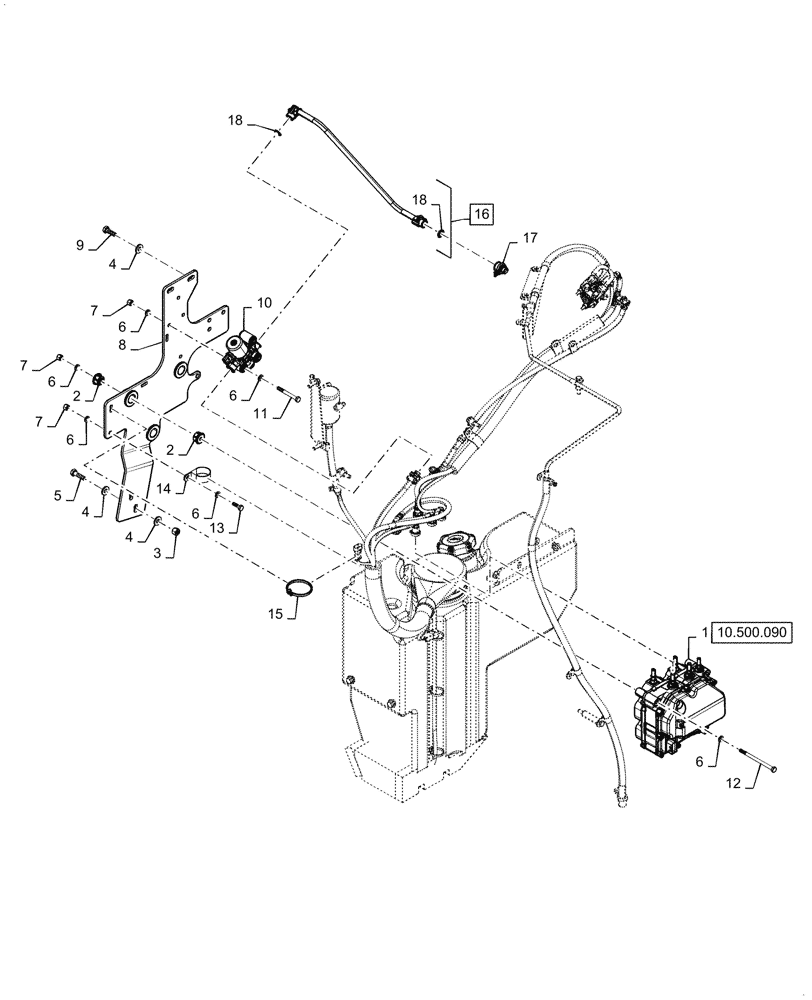

Запчасти Case 521G (10.500.050) - SELECTIVE CATALYTIC REDUCTION CONTROL (10) - ENGINE

1

47565936

MODULE

Denox Supply

1шт.

2

2855150

INSULATOR BLOCK

6шт.

3

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

4

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

6шт.

5

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

2шт.

6

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

13шт.

7

832-10408

NUT,M8 x 1.25, Cl 8.8

7шт.

8

48026473

BRACKET

Supply Module

1шт.

9

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.

10

84466547

HEATER VALVE

24V

1шт.

11

827-8070

BOLT,Hex, M8 x 1.25 x 70mm, Cl 10.9

3шт.

12

827-8120

BOLT,Hex, M8 x 1.25 x 120mm, Cl 10.9

3шт.

13

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

1шт.

14

515-23412

CLAMP,1 5/8", Insul, 3/8" Bolt

1шт.

15

L11541

CABLE TIE,203.2mm L, Nylon

1шт.

16

47687285

HOSE

Coolant, Engine to Valve, 465mm L, Incl 18

1шт.

17

84345040

ADAPTER

246 NG to M16 x 1.5'

1шт.

18

84206573

O-RING,2.5mm Thk x 12mm ID, -70

2шт.
