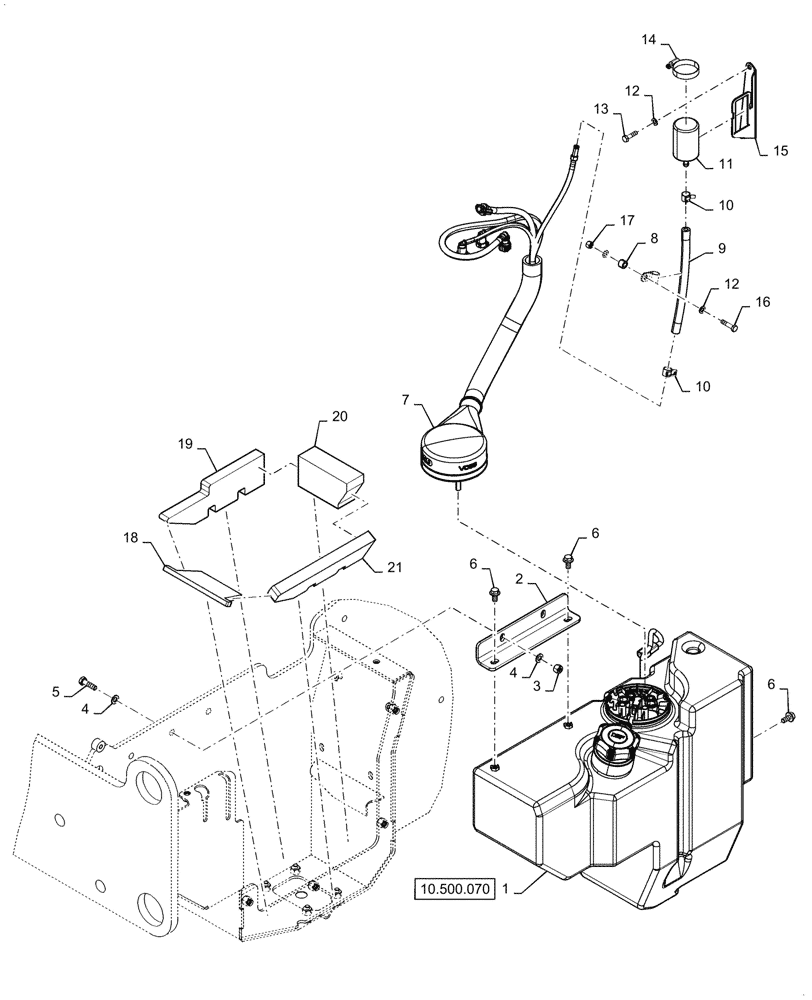

Запчасти Case 521G (10.500.040) - DEF TANK & FILTER INSTALLATION (10) - ENGINE

1

47665418

TANK

DEF

1шт.

2

84299672

BRACKET

Tank Hold

1шт.

3

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

4

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

5

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

1шт.

6

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

4шт.

7

47696883

HOSE

DEF

1шт.

8

84238738

SPACER,10.34mm ID x 15.88mm OD x 12mm L

1шт.

9

47846285

HOSE

Heater

1шт.

10

87584302

CLAMP,16mm - 19mm, Spring

2шт.

11

47437399

FUEL FILTER

Fuel Tank Vent

1шт.

12

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

13

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

2шт.

14

214-1432

HOSE CLAMP,#32, 1.56" - 2.5", Type F Worm

1шт.

15

47651106

BRACKET

Def Tank Vent Filter

1шт.

16

627-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 10.9, Full Thd

1шт.

17

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

18

48049981

SEAL

Filter

1шт.

19

48049980

SEAL

Inside

1шт.

20

48049979

SEAL

Short

1шт.

21

48051364

SEAL

Outside

1шт.
