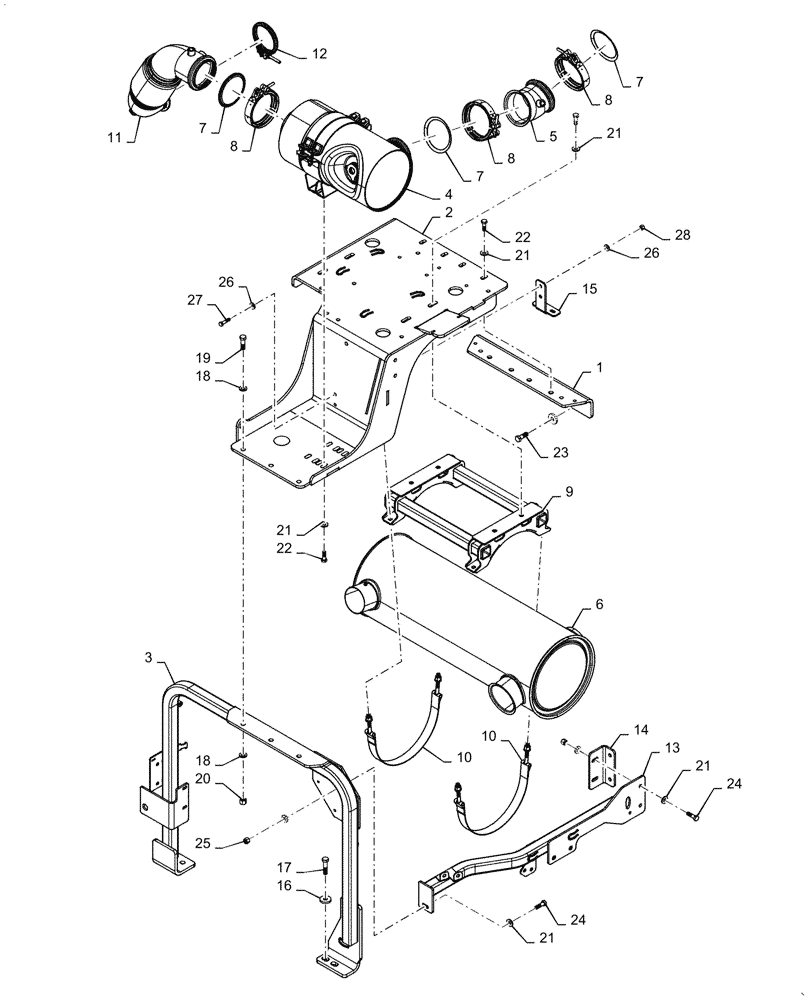

Запчасти Case 521G (10.500.010) - EXHAUST SYSTEM (10) - ENGINE

1

47702004

SUPPORT

Muffler

1шт.

2

47715381

SUPPORT

Muffler

1шт.

3

47812125

SUPPORT

Muffler

1шт.

4

47584116

MUFFLER

DOC, 6.77" x 3.94"

1шт.

5

47894578

PIPE

DOC to SCR

1шт.

6

48000446

MUFFLER

SCR

1шт.

7

84349222

GASKET,1.3mm Thk

3шт.

8

47390967

CLAMP,123.5mm ID

4"

3шт.

9

47715384

FRAME

SCR Cradle

1шт.

10

47472949

STRAP

Securing, SCR / DOC

2шт.

11

47894579

PIPE

Exhaust System, Turbo to DOC

1шт.

12

47461754

CLAMP

Turbo Flap

1шт.

13

47748324

SUPPORT

Supply Module

1шт.

14

47748077

BRACKET

Cooling Frame

1шт.

15

47589058

BRACKET

Cooling

1шт.

16

86592701

WASHER,13mm ID x 35mm OD x 5mm Thk

8шт.

17

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

4шт.

18

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

6шт.

19

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

3шт.

20

832-10412

NUT,M12 x 1.75, Cl 8

3шт.

21

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

18шт.

22

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

12шт.

23

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

4шт.

24

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

3шт.

25

832-10410

NUT,M10 x 1.5, Cl 8

3шт.

26

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

6шт.

27

627-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 10.9, Full Thd

4шт.

28

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.
