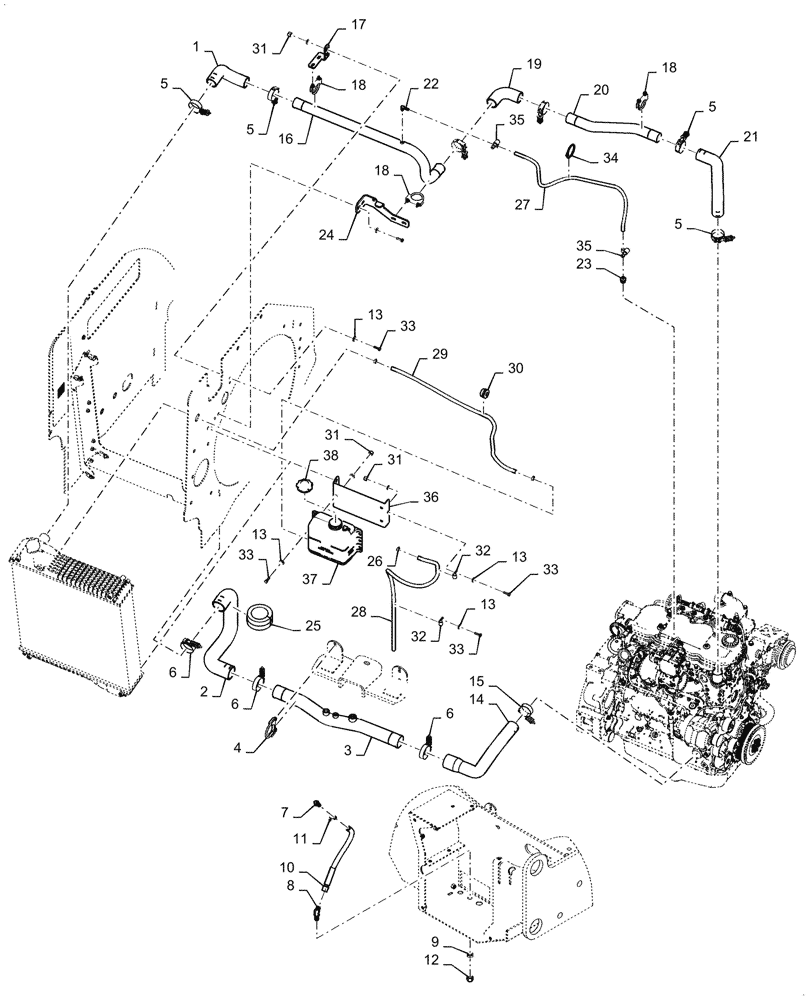

Запчасти Case 521G (10.400.030) - ENGINE COOLING SYSTEM HOSE INSTALLATION (10) - ENGINE

1

47976835

HOSE

Radiator, Upper

1шт.

2

47976832

HOSE

Radiator, Lower

1шт.

3

47803591

PIPE

Coolant, Bottom

1шт.

4

393632A1

CLAMP

2шт.

5

47994367

CLAMP

6шт.

6

47934774

CLAMP,63.5mm - 71.4mm, Spring

3шт.

7

217-152

FITTING,1/2" Hose Barb x 3/8" Male NPTF

1шт.

8

218-715

ELBOW,45 Degree Blkhd, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

1шт.

9

524036

BHD LOCK NUT,Blkhd, 3/4"-16

1шт.

10

47457805

HYDRAULIC HOSE

Drain, Coolant

1шт.

11

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

1шт.

12

218-755

CAP,37 Degree, 3/4"-16

1шт.

13

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

17шт.

14

47976831

HOSE

Coolant, Bottom

1шт.

15

47973117

CLAMP

1шт.

16

47474359

TUBE

Radiator

1шт.

17

47570410

BRACKET

Coolant Tube

1шт.

18

382189A1

CLAMP

3шт.

19

47976834

HOSE

Elbow

1шт.

20

47570430

TUBE

Radiator

1шт.

21

47976833

HOSE

Coolant Thermostat

1шт.

22

217-292

FITTING,90 Degree Elbow, 1/4" Hose Barb x 1/8" Male NPTF

1шт.

23

87635840

VALVE

Check Valve

1шт.

24

47692656

BRACKET

Coolant Tube

1шт.

25

8500167

SEAL

1шт.

26

A171099

HOSE CLAMP,13.2mm - 15.4mm

3шт.

27

31-1190

HOSE,6.4mm ID x 965mm L, SAE 30R2

Breather Hose

1шт.

28

31-2939

HOSE,7.9 mm ID x 1270.00 mm

Breather Hose

1шт.

29

48022215

HOSE

Breather Hose

1шт.

30

198824C1

GROMMET,12.7mm ID x 41.1mm OD x 26.9mm Thk

1шт.

31

832-10408

NUT,M8 x 1.25, Cl 8.8

6шт.

32

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

2шт.

33

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

11шт.

34

L11541

CABLE TIE,203.2mm L, Nylon

4шт.

35

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

2шт.

36

48021712

PLATE

Coolant Overflow

1шт.

37

A184395

RESERVOIR

Coolant Recovery

1шт.

38

1547924C1

CAP

Reservoir

1шт.
