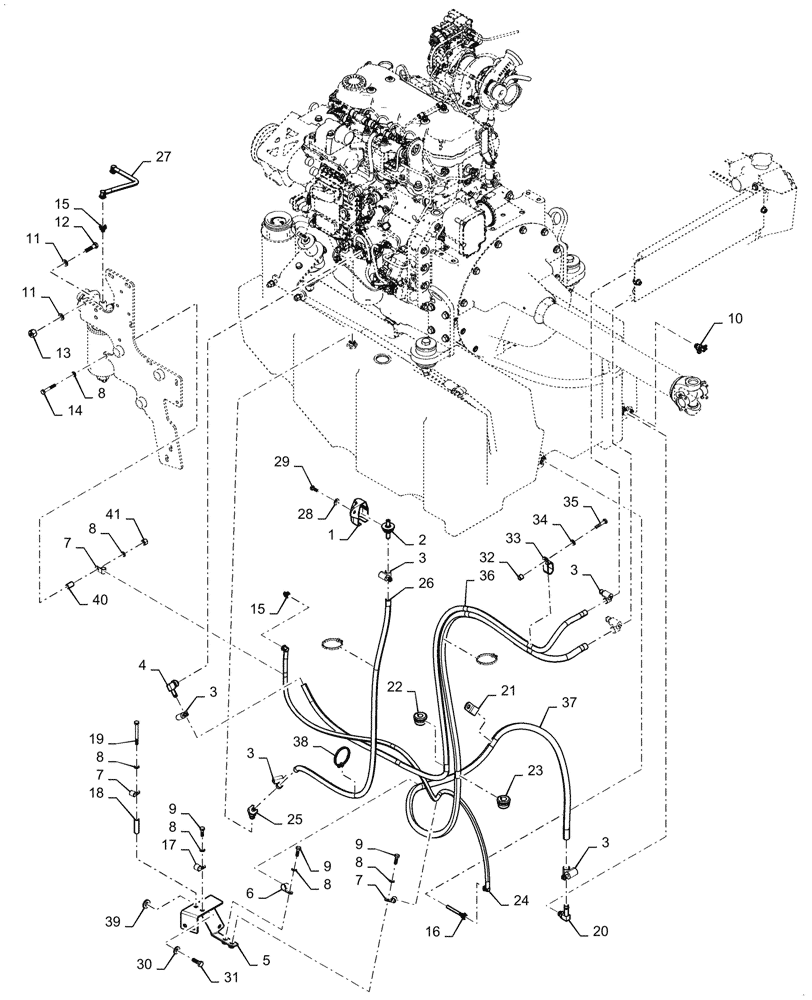

Запчасти Case 521G (10.216.040) - FUEL LINE INSTALLATION (10) - ENGINE
№
Артикул
Название
Примечание
Количество
1
186814A1
CAP
Fuel Tank Vent
1шт.
2
T103750
BREATHER
Breather
1шт.
3
214-1406
HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm
6шт.
4
87400460
90 ELBOW
1шт.
5
47572777
BRACKET
Fuel Hose
1шт.
6
515-22190
CLAMP,3/4", Insul, 5/16" Bolt
1шт.
7
515-22127
CLAMP,1/2", Insul, 5/16" Bolt
3шт.
8
895-10008
WASHER,M8 x 16 x 1.6
6шт.
9
627-8025
BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd
3шт.
10
47937635
VALVE
Drain, 9/16
1шт.
13
832-10410
NUT,M10 x 1.5, Cl 8
3шт.
14
827-8050
BOLT,Hex, M8 x 1.25 x 50mm, Cl 10.9
1шт.
15
47728714
ADAPTER
246 NG12 to M14 x 1.5mm
2шт.
16
47930709
TUBE
Fuel Suction
1шт.
17
515-22159
CLAMP,5/8", Insul, 5/16" Bolt
1шт.
18
87302564
SPACER,9.2mm ID x 13.7mm OD x 50.8mm L
1шт.
19
827-8080
BOLT,Hex, M8 x 1.25 x 80mm, Cl 10.9
1шт.
20
217-374
FITTING,90 Degree Elbow, 1/2" Hose Barb x 9/16" - 8 Male ORB
1шт.
21
515-25190
CLAMP,3/4", Insul, 1/2" Bolt
1шт.
22
198825C1
GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk
1шт.
23
198826C1
GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk
1шт.
24
48028262
TUBE
Tank to Pre Filter
1шт.
25
217-312
FITTING,45 Degree Elbow, 3/8" Hose Barb x 9/16" - 18 Male ORB
1шт.
26
87450701
HOSE
Breather
1шт.
27
48028264
TUBE
Prefilter to Engine
1шт.
28
895-15008
WASHER,9mm ID x 20mm OD x 1.6mm Thk
1шт.
29
627-8020
BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd
1шт.
30
896-15010
WASHER,11mm ID x 24mm OD x 3mm Thk
2шт.
31
806-10030
BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9
2шт.
32
87722494
SPACER,8.5mm ID x 14mm OD x 12mm L
2шт.
33
L101181
CLAMP,0.75" D Clamping pipes x 2
2шт.
34
892-11010
LOCK WASHER,M10
2шт.
35
827-8040
BOLT,Hex, M8 x 1.25 x 40mm, Cl 10.9
2шт.
36
31-3082
HOSE,0.38" ID x 8.00"
Filter to Cooler
1шт.
37
390650A1
HOSE, BULK
Return to Tank
1шт.
38
L11541
CABLE TIE,203.2mm L, Nylon
4шт.
39
896-15012
WASHER,13.5mm ID x 28mm OD x 4mm Thk
2шт.
40
414937A1
SPACER
1шт.
41
832-10408
NUT,M8 x 1.25, Cl 8.8
1шт.
Выбрано товаров: 41
