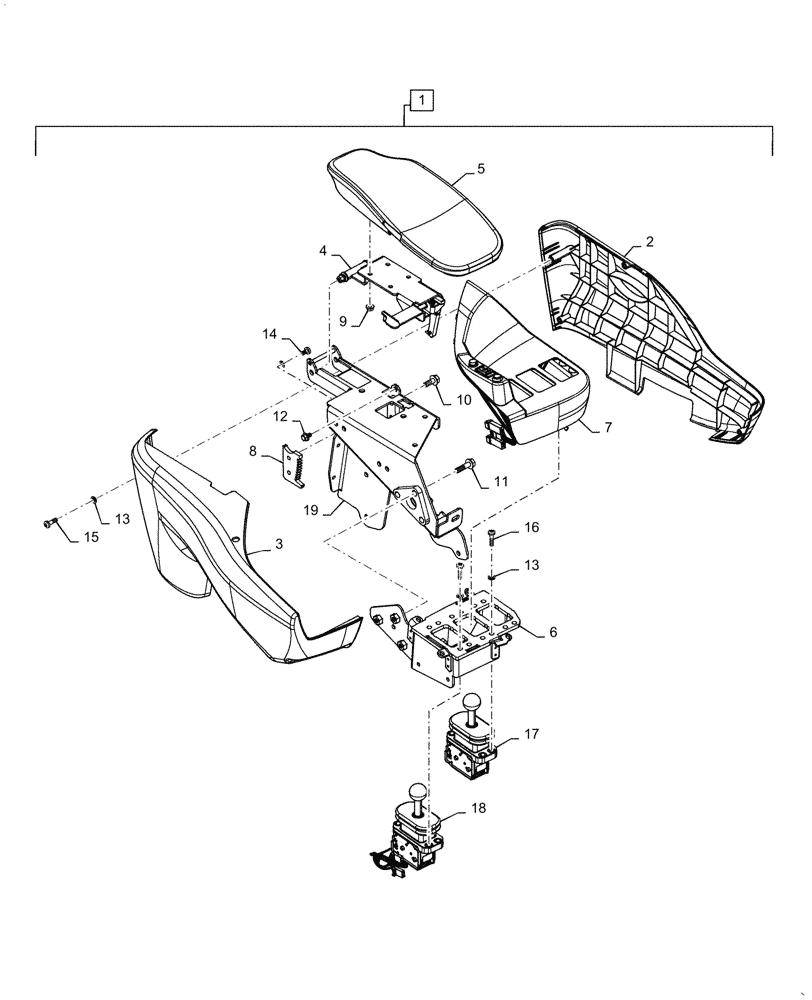

Запчасти Case 521G (90.120.060) - VAR - 734051 - 2-LEVER LOADER CONTROL ASSEMBLY (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47982349

ARMREST

Assembly, Incl 2 - 19

1шт.

2

47982590

SHELL

RH Armrest, Left Side

1шт.

3

47982591

SHELL

RH Armrest, Right Side

1шт.

4

48002322

HINGE

Adjustment

1шт.

5

47982592

CUSHION

RH Armrest

1шт.

6

48002325

BRACKET

Levers

1шт.

7

47982588

BEZEL

RH Armrest, Lever Control

1шт.

8

48002323

PLATE

Pawl Detent

1шт.

9

86619800

FLANGE NUT,M6 x 1, Cl 8

4шт.

10

86511479

BOLT,Hex Flg, M8 x 20mm

3шт.

11

86511480

BOLT,M8 x 1.25 x 38.1mm

3шт.

12

86512252

BOLT,Hex Flg, M6 x 10mm

1шт.

13

10571577

WASHER

22шт.

14

86511828

SCREW,Phillips Drive, Pan HD, M6 x 12mm, Cl 4.8

1шт.

15

86016585

SCREW,Phil Pan Hd, M6 x 20mm, Cl 4.8

13шт.

16

13276621

SCREW,Pozidriv Pan Hd, M6 x 25mm, Cl 8.8, Full Thd

8шт.

17

48021092

JOYSTICK

Boom Lever

1шт.

18

47869063

JOYSTICK

Bucket Lever

1шт.

19

48014116

BRACKET

Main Armrest

1шт.
