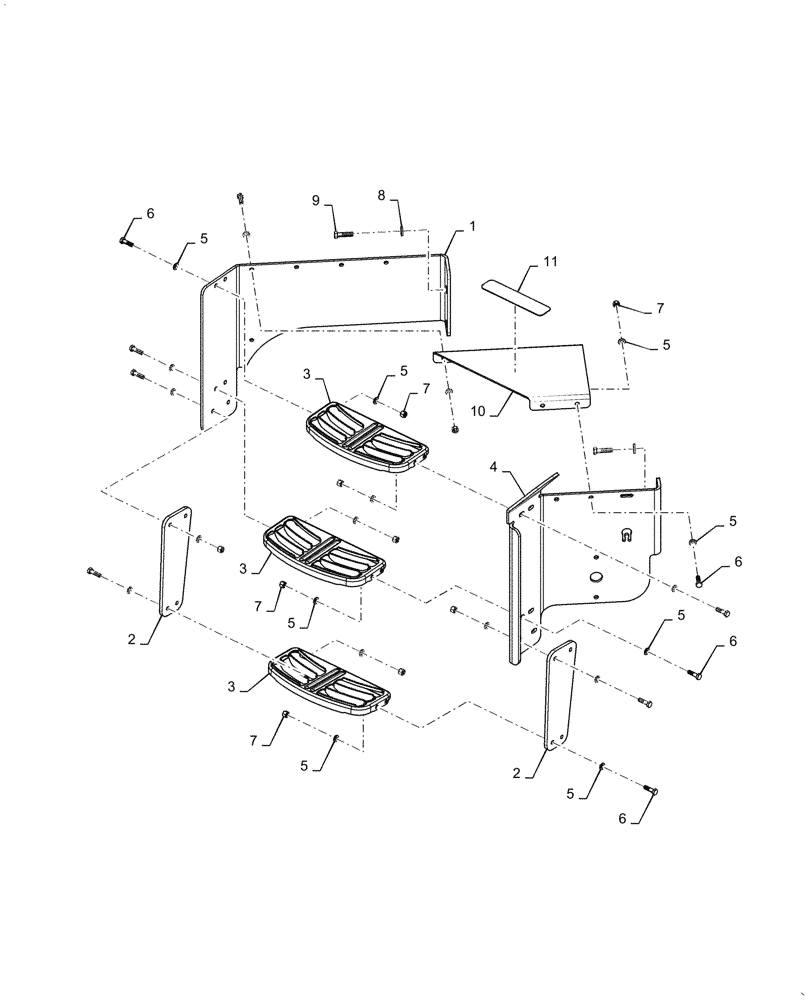

Запчасти Case 521G (90.118.020) - VAR - 782510, 782511 - STEP, RIGHT SIDE (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47905833

SUPPORT

RH, Rear Step

1шт.

2

47894712

STRAP

Bottom Step

2шт.

3

47639539

STEP

3шт.

4

47978753

SUPPORT

RH, Front Step

1шт.

5

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

46шт.

6

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

23шт.

7

832-10410

NUT,M10 x 1.5, Cl 8

23шт.

8

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

4шт.

9

627-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

4шт.

10

47965510

PLATFORM

RH Steps

1шт.

11

D55216

PAD,2" x 9"

1шт.
