(90.116.030) - VAR - 782509, 782510, 782511 - FENDER, WHEEL WELL

Запчасти Case 521G (90.116.030) - VAR - 782509, 782510, 782511 - FENDER, WHEEL WELL (90) - PLATFORM, CAB, BODYWORK AND DECALS

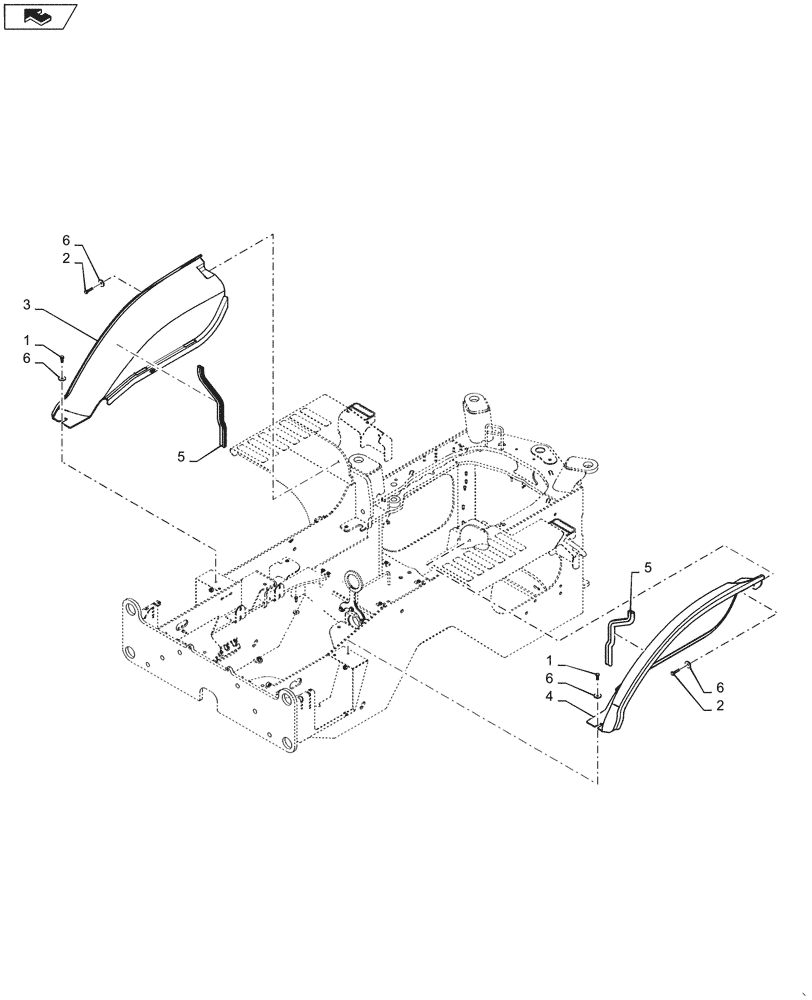

Схема запчастей Case 521G - (90.116.030) - VAR - 782509, 782510, 782511 - FENDER, WHEEL WELL (90) - PLATFORM, CAB, BODYWORK AND DECALS
5
6
4
1
home
6
6
6
2
1
5
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

2

627-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

2шт.

3

409497A2

FENDER

Wheel Well LH Case Power Tan

1шт.

4

409498A2

FENDER

Wheel Well RH Case Power Tan

1шт.

5

47570157

Seal Fan Shroud

2шт.

5

383541A1

RUBBER SEAL,464mm L

Seal Fan Shroud

2шт.

6

39519

WASHER,10.31mm ID x 34.9mm OD x 3.57mm Thk

4шт.
