(90.116.010[02]) - VAR - 782510 - REAR FENDER, SHORT

Запчасти Case 521G (90.116.010[02]) - VAR - 782510 - REAR FENDER, SHORT (90) - PLATFORM, CAB, BODYWORK AND DECALS

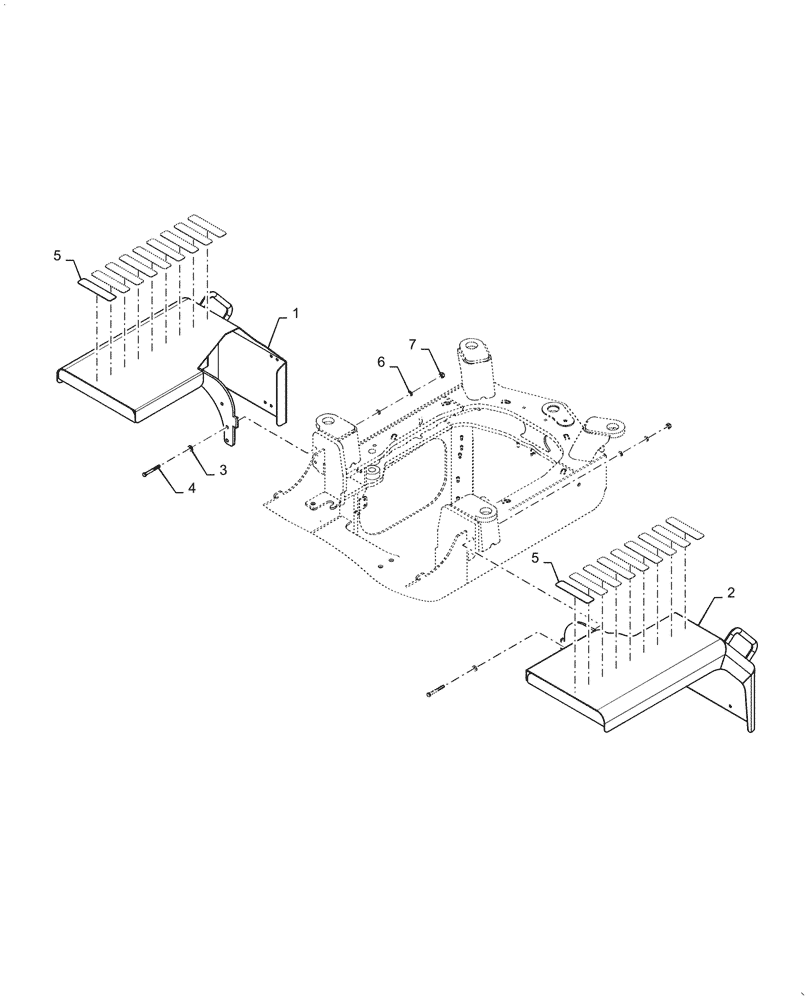

Схема запчастей Case 521G - (90.116.010[02]) - VAR - 782510 - REAR FENDER, SHORT (90) - PLATFORM, CAB, BODYWORK AND DECALS
1
7
4
5
3
2
6
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47920273

SUPPORT

LH Short

1шт.

2

47920275

SUPPORT

RH Short

1шт.

3

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

4шт.

4

827-12100

BOLT,Hex, M12 x 1.75 x 100mm, Cl 10.9

4шт.

5

D55216

PAD,2" x 9"

18шт.

6

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

8шт.

7

829-1412

NUT,M12, Cl 10.9

4шт.

Выбрано товаров: 7
