(90.108.010) - DECALS COMMON TO MODEL

Запчасти Case 521G (90.108.010) - DECALS COMMON TO MODEL (90) - PLATFORM, CAB, BODYWORK AND DECALS

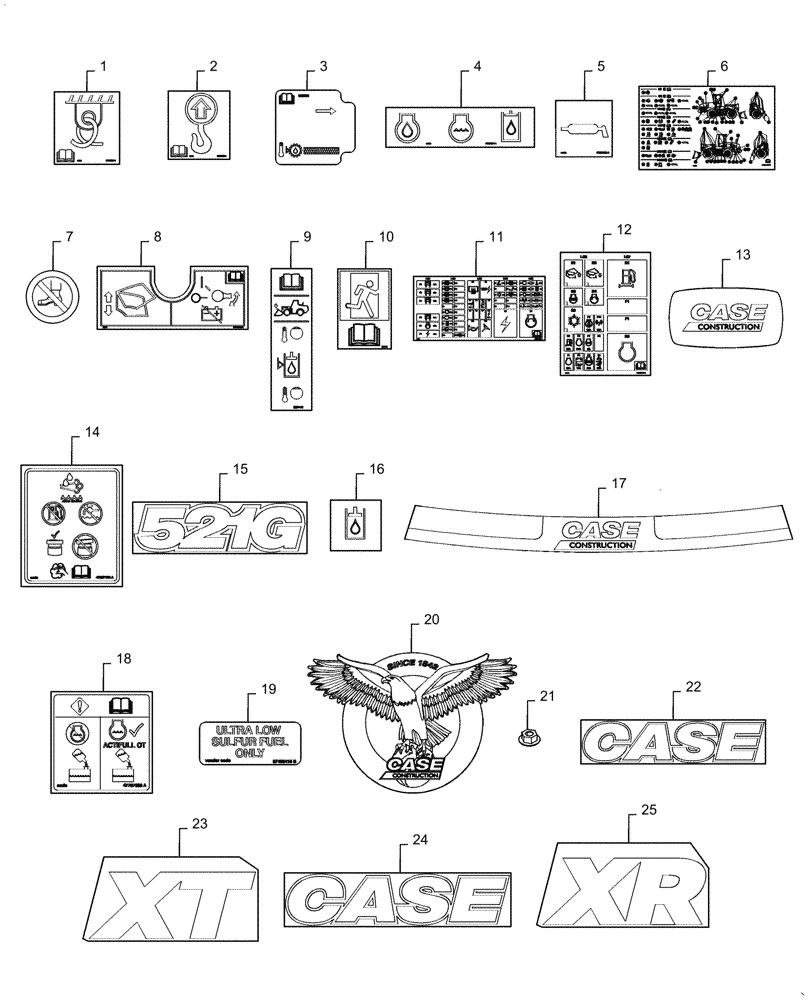

Схема запчастей Case 521G - (90.108.010) - DECALS COMMON TO MODEL (90) - PLATFORM, CAB, BODYWORK AND DECALS
1
15
16
14
19
12
6
11
20
4
25
9
5
10
13
7
18
8
3
21
24
17
23
2
22
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84409663

DECAL

Tie Down

4шт.

2

84409662

DECAL

Lift Point

4шт.

3

387148A2

DECAL

Trainsmission Oil Level

1шт.

4

47982011

DECAL

Fluid Drains

1шт.

5

47981900

DECAL

Grease Lube Point

2шт.

6

48016968

DECAL

Maintenance Chart

1шт.

7

E134402

DECAL

No Step

1шт.

8

47973605

DECAL

Disconnect Switch

1шт.

9

386741A2

DECAL

Hydraulic Fluid Temperature Level

1шт.

10

329051A1

DECAL

Emergency Exit

1шт.

11

47997341

DECAL

Fuse Chart

1шт.

12

47906428

DECAL

Fuse & Relay

1шт.

13

84558035

DECAL,70mm x 58mm H

Case, Engine

3шт.

14

47657122

DECAL

DEF

1шт.

15

47919883

DECAL

521G Model Number

2шт.

16

395895A1

DECAL

Hydraulic Oil

1шт.

17

47964669

DECAL

Cab Visor

1шт.

18

47757330

DECAL,50mm x 50mm H

Coolant

2шт.

19

87493418

DECAL,50mm x 21mm H

Ultra Low Sulfer Fuel

1шт.

20

47940064

DECAL

Case Eagle, 109.6mm

1шт.

21

131-431

PUSH-ON NUT,Self, Threading, 1/4"

for Case Emblem, Ref. 20

2шт.

22

47918919

DECAL

Case Logo, XT

2шт.

23

47921957

DECAL

XT Decal

2шт.

24

47918909

DECAL

Case Logo, Z-Bar / XR

2шт.

25

47921956

DECAL

XR Decal

2шт.
