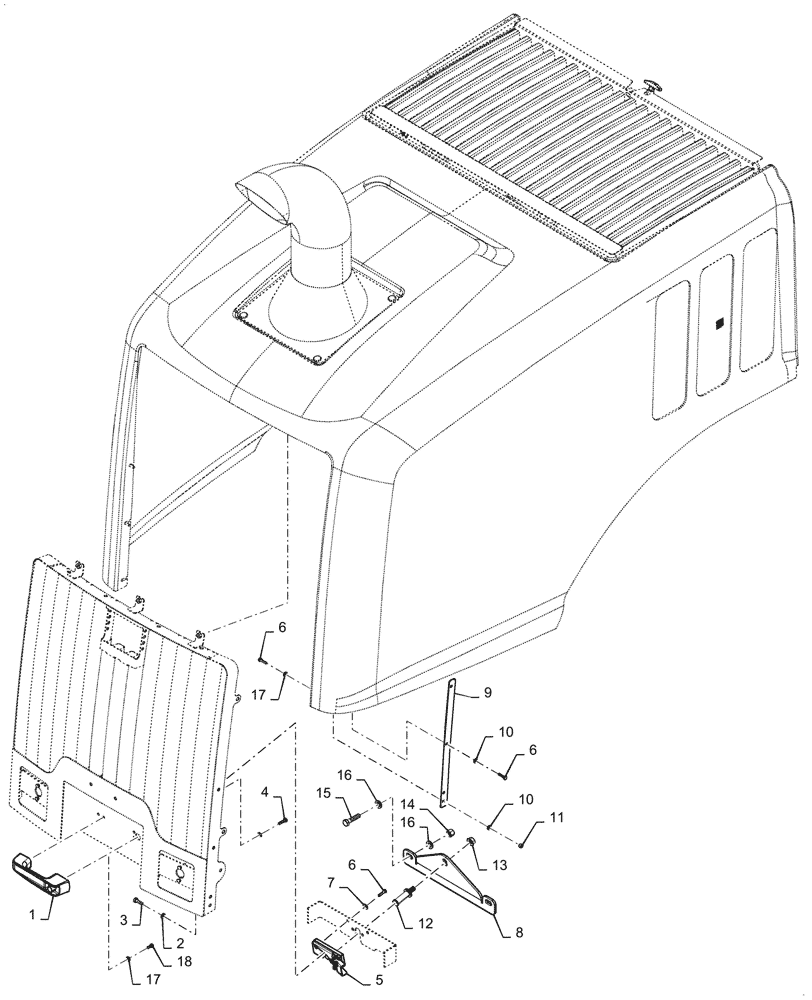

Запчасти Case 521G (90.100.020[02]) - ENGINE HOOD INSTALLATION (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

60-7083T1

HANDLE

Hood

1шт.

2

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

3

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

1шт.

4

426-416

BOLT,Hex, 1/4" - 20 x 1", Gr 8

1шт.

5

366176A2

LATCH

Hood

1шт.

6

627-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 10.9, Full Thd

10шт.

7

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

4шт.

8

47878529

PLATE

Striker

1шт.

9

47454920

PLATE

Backing, Grille

2шт.

10

892-11006

LOCK WASHER,M6

6шт.

11

832-10406

NUT,M6 x 1, Cl 8

2шт.

12

301081A1

BOLT

1шт.

13

43436

FLANGE NUT,M12

1шт.

14

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

15

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

2шт.

16

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

17

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

6шт.

18

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

4шт.
