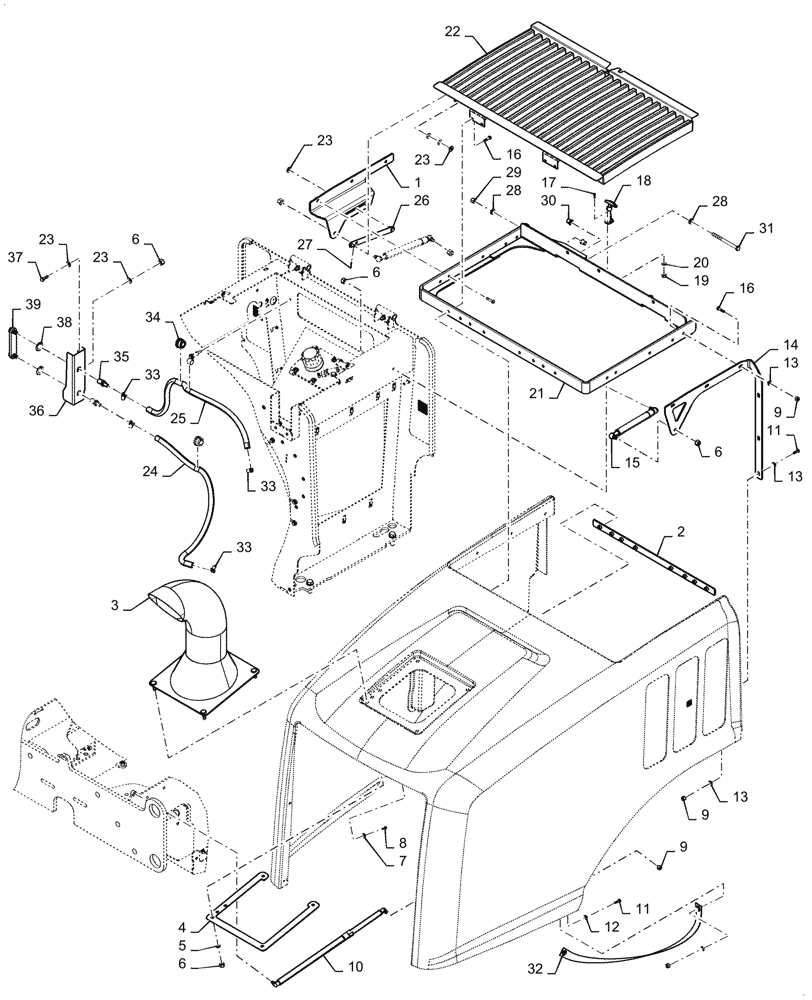

Запчасти Case 521G (90.100.020[01]) - ENGINE HOOD INSTALLATION (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47787582

BRACKET

Top Screen

1шт.

2

382712A2

PLATE ASSY.

Rear Backing

1шт.

3

47417626

EXHAUST SYSTEM PIPE

1шт.

4

47397265

PLATE

Exhaust Backing

1шт.

5

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

4шт.

6

832-10410

NUT,M10 x 1.5, Cl 8

10шт.

7

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

3шт.

8

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

3шт.

9

832-10408

NUT,M8 x 1.25, Cl 8.8

9шт.

10

398767A1

GAS STRUT

1шт.

11

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.

12

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

13

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

9шт.

14

47982385

BRACKET

Hood Strut

1шт.

15

87000505

CYLINDER ASSY.

2шт.

16

827-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 10.9

14шт.

17

864-5016

HEX SOC SCREW,M5 x 16mm, Cl 8.8

2шт.

18

384774A1

LATCH

Flexible Draw

1шт.

19

824-1405

NUT,M5, Cl 5

2шт.

20

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

2шт.

21

47578990

SUPPORT

Hood

1шт.

22

47703837

SCREEN

1шт.

23

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

8шт.

24

47579096

HOSE,12.5mm ID x 815mm L, SAE100R6

Sight Gauge

1шт.

25

47941945

HOSE,12.5mm ID x 910mm L, SAE100R6

Sight Gauge

1шт.

26

47578962

BAR

1шт.

27

733-3220

COTTER PIN,M3.2 x 20

2шт.

28

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

29

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

30

382495A1

BUSHING

4шт.

31

827-12150

BOLT,Hex, M12 x 1.75 x 150mm, Cl 10.9

2шт.

32

47596198

STRAP

1шт.

33

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

4шт.

34

198826C1

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

2шт.

35

76086829

HYD CONNECTOR

2шт.

36

47935486

BRACKET

Sight Gauge

1шт.

37

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.

38

131-141

PUSH-ON NUT,.74", Push-on

2шт.

39

86988366

SIGHTGLASS

1шт.
