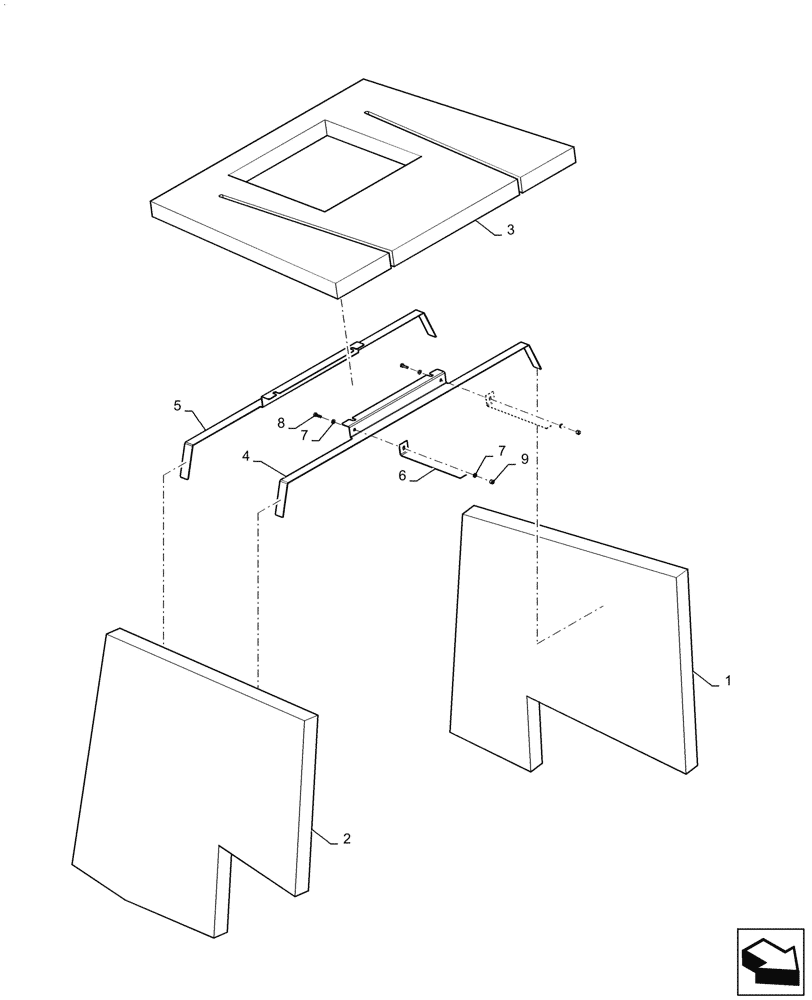

Запчасти Case 521G (90.100.010) - VAR - 782559 - HOOD NOISE SUPPRESSION PANELS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

48023676

PANEL

LH, Hood, Noise Suppression

1шт.

2

47974936

PANEL

RH, Hood, Noise Suppression

1шт.

3

47974938

PANEL

Top, Hood, Noise Suppression

1шт.

4

47976047

BRACKET

Front, Top Panel Support

1шт.

5

47978959

BRACKET

Rear, Top Panel Support

1шт.

6

47974938

PANEL

Extension, Upper Panel

4шт.

7

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

8шт.

8

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

4шт.

9

832-10406

NUT,M6 x 1, Cl 8

4шт.
