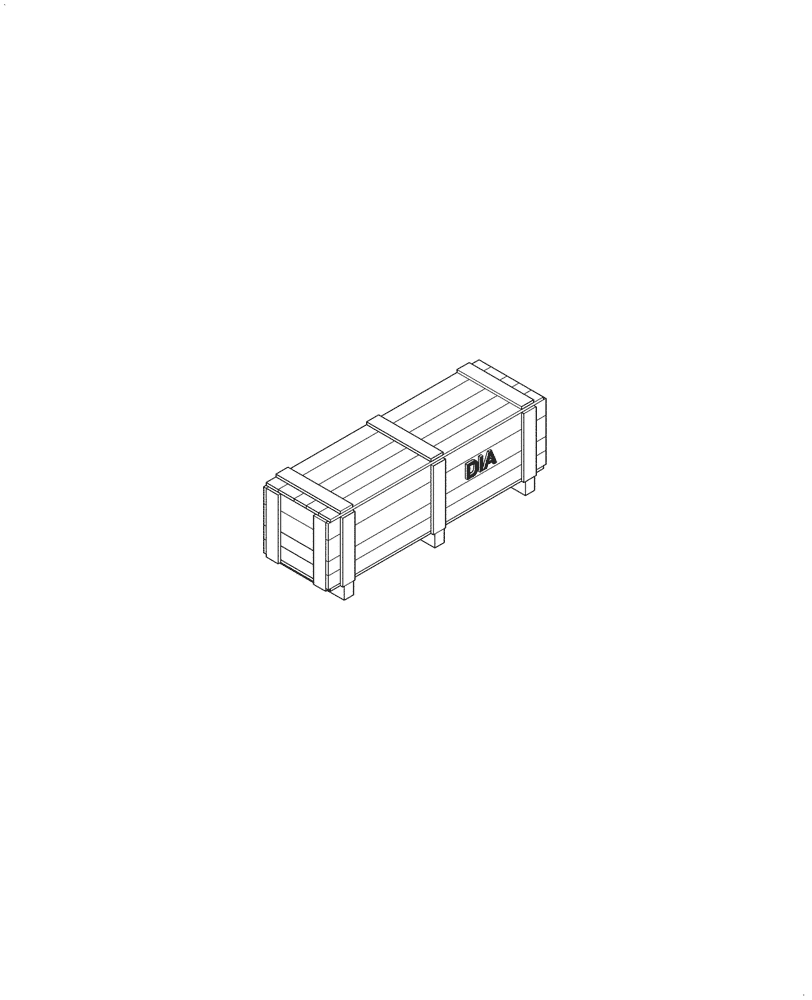

Запчасти Case 521G (88.100.50) - DIA KIT, AIR CONDITIONER (88) - ACCESSORIES

1

47686348

KIT

DIA KIT, Air Conditioner, Incl 2 - 74

1шт.

2

47923565

INSTRUCTION

1шт.

3

225-14108

NUT,#8-32

2шт.

4

47980881

BELT

Air Conditioner

1шт.

5

284273A2

SWITCH, A/C HIGH PRE

High Pressure A/C

1шт.

6

379374A1

BLOCK

Tube Mounting

1шт.

7

433723A1

CLAMP

2шт.

8

440-1088

SCREW,Cross Pan Hd, #8-32 x 1/2"

2шт.

9

47407361

SUPPORT

1шт.

10

47470850

TENSIONER

1шт.

11

47563378

HOSE

Condenser to Dryer

1шт.

12

47624200

WASHER

1шт.

13

47624208

SEALING WASHER

1шт.

14

47689567

PLATE

1шт.

15

47724181

HOSE

Cab to Compressor

1шт.

16

47724182

HOSE

Dryer to Cab

1шт.

17

47728710

FOAM

1шт.

18

47821526

RECEIVER-DRYER

Horizontal

1шт.

19

47911863

HOSE

Compressor to Condenser

1шт.

20

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

1шт.

21

515-24190

CLAMP,3/4", Insul, 7/16" Bolt

1шт.

22

515-24238

CLAMP,15/16", Insul, 7/16" Bolt

1шт.

23

515-25159

CLAMP,5/8", Insul, 1/2" Bolt

2шт.

24

515-25254

CLAMP,1", Insul, 1/2" Bolt

1шт.

25

60-4640T1

LATCH

1шт.

26

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

6шт.

27

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

1шт.

28

825-1406

NUT,M6, Cl 8

1шт.

29

827-12130

BOLT,Hex, M12 x 1.75 x 130mm, Cl 10.9

1шт.

30

827-6040

BOLT,Hex, M6 x 40mm, Cl 10.9

2шт.

31

827-8080

BOLT,Hex, M8 x 1.25 x 80mm, Cl 10.9

1шт.

32

827-8100

BOLT,Hex, M8 x 1.25 x 100mm, Cl 10.9

2шт.

33

827-8110

BOLT,Hex, M8 x 1.25 x 110mm, Cl 10.9

2шт.

34

829-1412

NUT,M12, Cl 10.9

1шт.

35

832-10406

NUT,M6 x 1, Cl 8

2шт.

36

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

37

832-10410

NUT,M10 x 1.5, Cl 8

5шт.

38

84411602

PLATE

1шт.

39

84591180

HEX SOC SCREW,M8 x 16mm, Cl 12.9

2шт.

40

8500133

OIL SEAL

1шт.

41

8500878

CONDENSER

1шт.

42

86625261

WASHER,5.5mm ID x 10mm OD x 1mm Thk

1шт.

43

87017353

BOLT,Hex, M10 x 60mm, Cl 10.9

3шт.

44

87429951

SPACER,12.5mm ID x 22.4mm OD x 27mm L

1шт.

45

87432328

SEAL

1шт.

46

87587637

PLASTIC-RUBBER TUBE

1шт.

47

87634118

AIRCOND. COMPRESSOR

1шт.

48

87634122

SUPPORT

1шт.

49

892-11008

LOCK WASHER,8mm ID

4шт.

50

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

51

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

52

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

1шт.

53

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1шт.

54

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

7шт.

55

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

3шт.

56

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

57

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

5шт.

58

L11541

CABLE TIE,203.2mm L, Nylon

3шт.

59

87302564

SPACER,9.2mm ID x 13.7mm OD x 50.8mm L

1шт.

60

47562425

BRACKET

1шт.

61

47694282

GUARD

1шт.

62

627-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 10.9, Full Thd

4шт.

63

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

64

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

2шт.

65

47675929

AIR CONDITIONER

1шт.

66

47748651

PANEL

1шт.

67

367489A1

BLOCK

2шт.

68

84153830

FUSE,5A, Mini, Beige

1шт.

69

47688490

FOAM

1шт.

70

833-40306

SPRING NUT,M6, U

4шт.

71

198826C1

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

1шт.

72

198825C1

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

1шт.

73

388113A1

DECAL

Belt Intanglement Hazard

1шт.

74

84511275

DECAL

Maintenance Chart

1шт.
