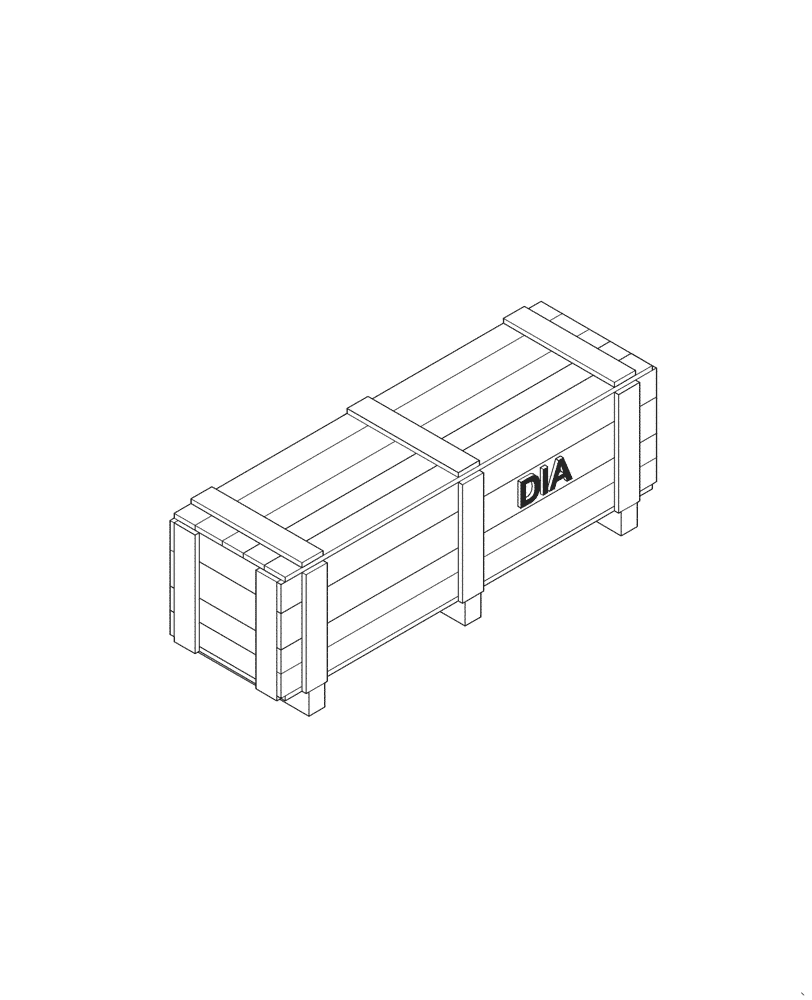

Запчасти Case 521G (88.100.39[02]) - DIA KIT, FRONT CHASSIS GUARD (88) - ACCESSORIES

1

48044358

KIT

FRONT CHASSIS GUARD, Incl 2 - 8

1шт.

2

48044380

INSTRUCTION

1шт.

3

87597597

SKID PLATE

FRONT LEFT SKID

1шт.

4

87597598

SKID PLATE

FRONT RIGHT SKID

1шт.

5

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

10шт.

6

892-11012

LOCK WASHER,M12

10шт.

7

627-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

10шт.

8

87597594

SKID PLATE

FRONT

1шт.
