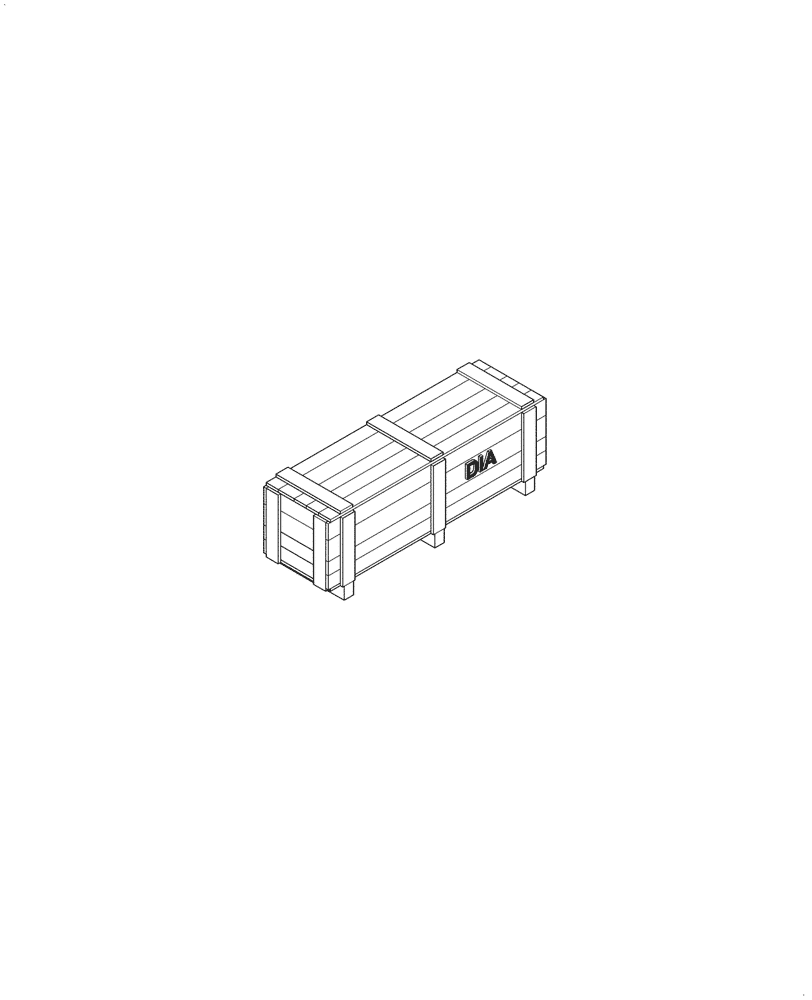

Запчасти Case 521G (88.100.35[14]) - DIA KIT, XT FOURTH SPOOL CONVERSION (88) - ACCESSORIES

1

472191001

KIT

XT Fourth Spool Conversion, Incl 2 - 22

1шт.

2

84536367

INSTRUCTION

1шт.

3

367658A1

PLATE

Cover Clamp

1шт.

4

372453A1

BLOCK

Tube Mounting

2шт.

5

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

2шт.

6

700-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

2шт.

7

701-914

PLUG,Hex, 1-3/16" - 12 ORFS

2шт.

8

701-1249

BHD LOCK NUT,1-3/16" - 12

2шт.

9

827-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 10.9

4шт.

10

827-10110

BOLT,Hex, M10 x 1.5 x 110mm, Cl 10.9

2шт.

11

832-10410

NUT,M10 x 1.5, Cl 8

6шт.

12

8500858

PLATE

Cover Clamp

2шт.

13

87302137

ELBOW,45 Degree, 1 3/16"-12, ORFS, Blkhd

2шт.

14

87304918

HOSE ASSY.

2120 mm, XT Accessory Upper

1шт.

15

87304919

HOSE ASSY.

1990 mm, XT Accessory Lower

1шт.

16

87444440

BRACKET

Hose Mounting

1шт.

17

87448148

HYD TUBE,16mm ID x19mm OD x 934mm L

Fourth Spool XT Right

1шт.

18

87448150

HYD TUBE,16mm ID x 19mm OD x 854mm L

Fourth Spool XT Left

1шт.

19

87452747

CLAMP,33.4mm ID

Tube Mounting

2шт.

20

892-11010

LOCK WASHER,M10

2шт.

21

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

8шт.

22

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.
