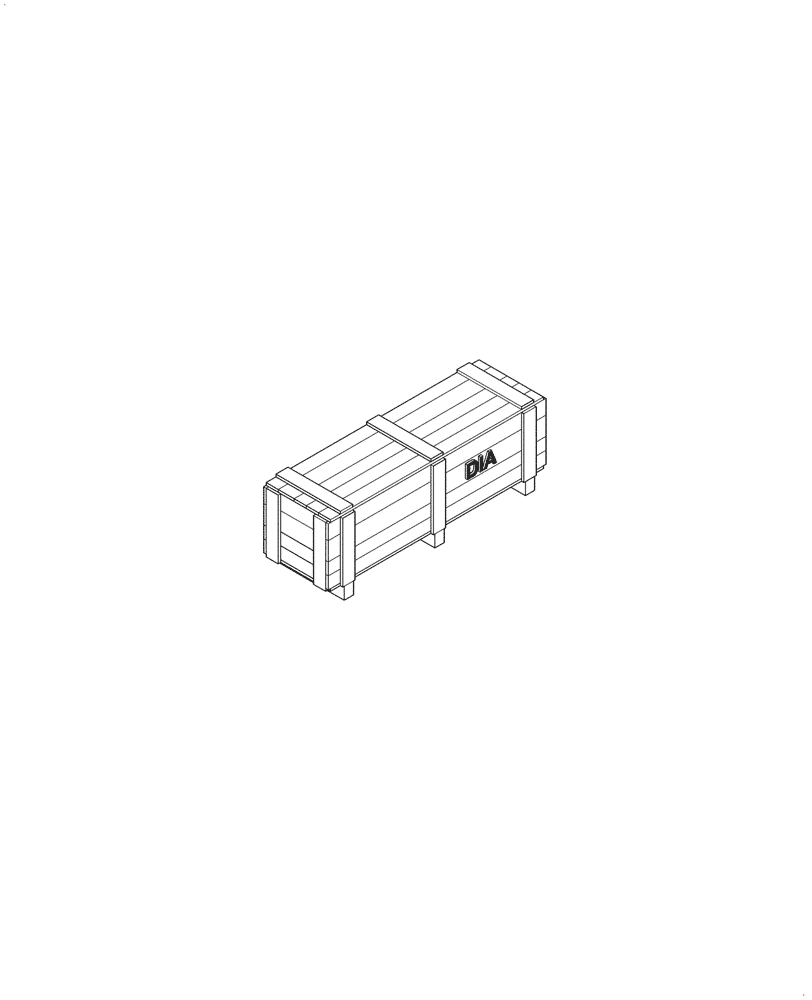

Запчасти Case 521G (88.100.10[01]) - DIA KIT, COLD WEATHER PACKAGE (88) - ACCESSORIES

1

47686520

KIT

DIA KIT, Cold Weather Package, Incl 2 - 24

1шт.

2

48027960

INSTRUCTION

1шт.

3

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

1шт.

4

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

1шт.

5

196466A1

ELECTRIC CABLE

Engine Heater

1шт.

6

84266054

CABLE TIE

1шт.

7

47615205

CABLE

Grid Heater Power

1шт.

8

84540512

RELAY,150A

Power

1шт.

9

2854701

GASKET,0.8mm Thk

Air Intake

1шт.

10

87300128

HEATER,24V, 2400W

Assembly

1шт.

11

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

12

87398558

CABLE

Grid Heater Ground

1шт.

13

832-10406

NUT,M6 x 1, Cl 8

1шт.

14

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

15

L11541

CABLE TIE,203.2mm L, Nylon

1шт.

16

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

1шт.

17

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

1шт.

18

47411271

ELECTRIC CABLE

Grid Heater Relay Power

1шт.

19

47728994

DECAL

Warning, Ether

1шт.

20

47728074

DECAL

Warning, Ether, French

1шт.

21

8603094

WARNING DECAL

Warning, Ether, Spanish

1шт.

22

8603095

WARNING DECAL

Warning, Ether, ISO EU

1шт.

23

84374315

WET BATTERY

1шт.

24

84389191

WATER SEPARATOR

W/ Heater

1шт.
