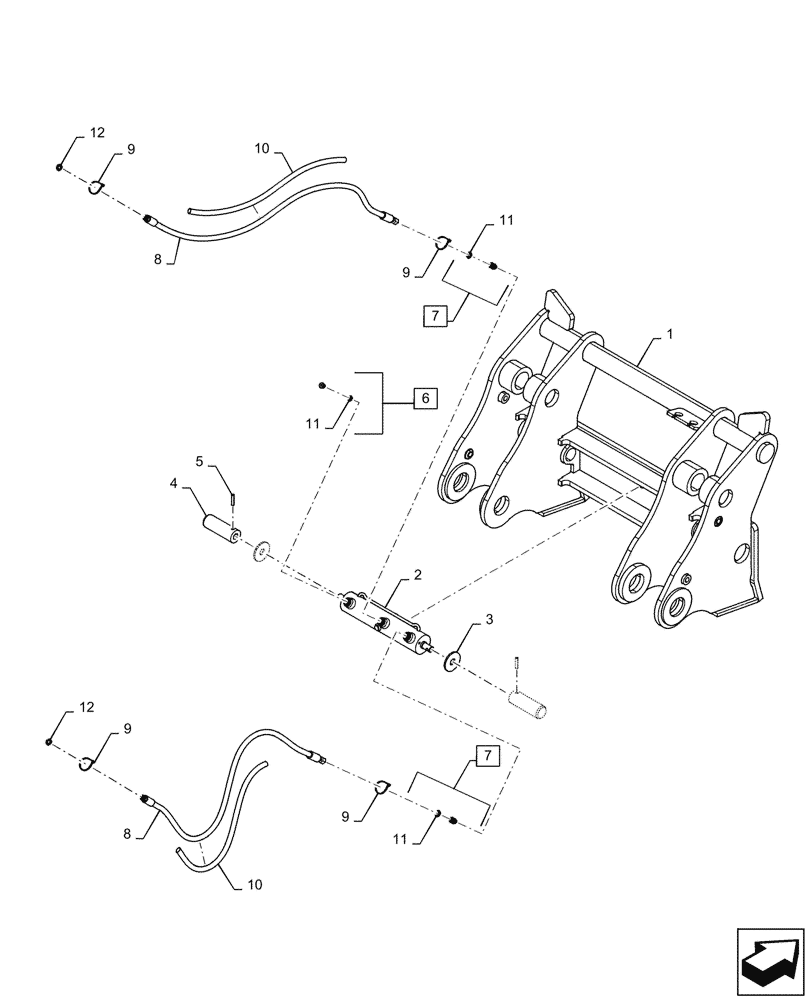

Запчасти Case 521G (82.100.050) - VAR - 424988, 424250, 424249 - BUCKET, COUPLING, XT, JRB COMPATIBLE (82) - FRONT LOADER & BUCKET

1

87492038

FRAME

Bucket Coupler, XT

1шт.

2

84139131

HYDRAULIC CYLINDER,Double Acting, 25.4mm Rod, 206.5mm Stroke

1шт.

3

87741104

INDICATOR

Visual, Ring

2шт.

4

87736653

SPECIAL PIN,50.8mm OD x 145.57mm L

Plunger

2шт.

5

87023162

PIN,9.53mm OD x 44.45mm L

Plunger

2шт.

6

221576A1

PLUG,Hex Soc, M14 x 1.5, ORB

Incl 11

1шт.

7

86579671

HYD CONNECTOR,11/16" - 16 ORFS x M14 x 1.5 ORB

Incl 11

2шт.

8

87492052

HOSE ASSY.

Hydraulic, 1041mm Lg

2шт.

9

86566989

CABLE TIE,208mm L

4шт.

10

86024407

PROTECTING COVER

HYD Hose Protector

2шт.

11

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

3шт.

12

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.
