(82.100.030) - VAR - 734007, 424249, 424250 - BUCKET, COUPLING, COMPONENTS ACS COMPATIBLE

Запчасти Case 521G (82.100.030) - VAR - 734007, 424249, 424250 - BUCKET, COUPLING, COMPONENTS ACS COMPATIBLE (82) - FRONT LOADER & BUCKET

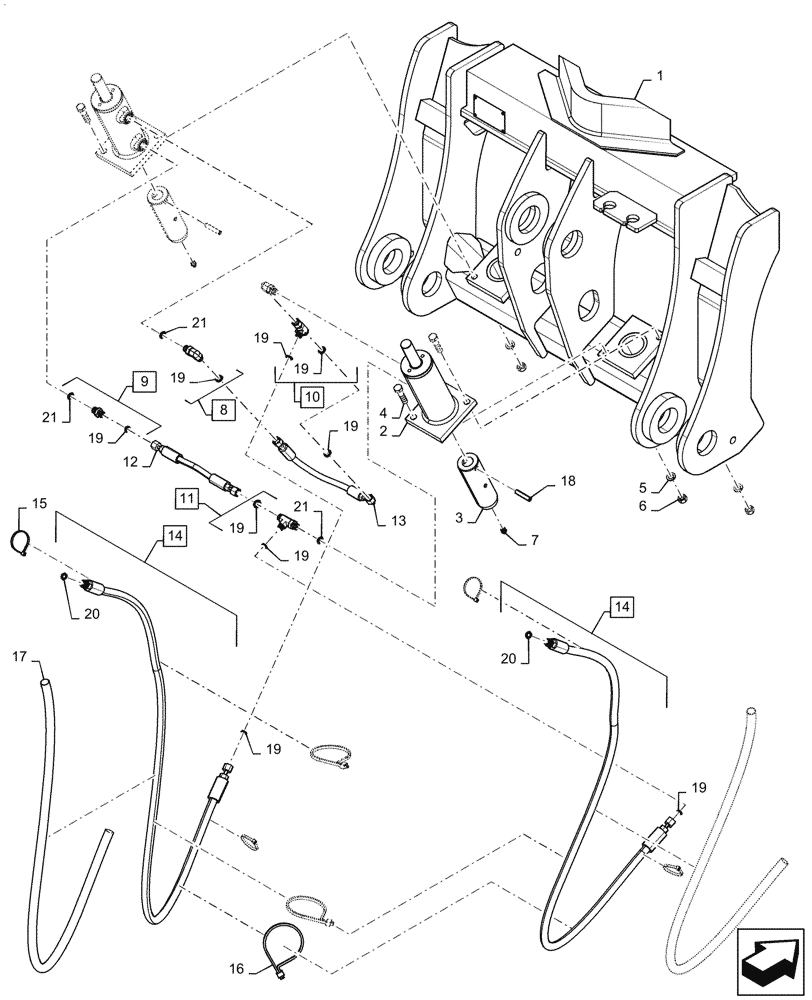

Схема запчастей Case 521G - (82.100.030) - VAR - 734007, 424249, 424250 - BUCKET, COUPLING, COMPONENTS ACS COMPATIBLE (82) - FRONT LOADER & BUCKET
21
1
17
14
5
19
9
19
4
21
18
13
19
20
19
12
19
2
8
19
15
19
20
14
21
6
19
10
3
11
16
19
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84538680

FRAME

Coupler, Z-Bar and XR

1шт.

2

84538634

HYDRAULIC CYLINDER

Coupler

2шт.

3

84538636

PIN,50.8mm OD x 162.6mm L

2шт.

4

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

4шт.

5

892-11012

LOCK WASHER,M12

4шт.

6

829-1412

NUT,M12, Cl 10.9

4шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

8

700-378

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Incl 19,21

2шт.

9

700-153

HYD CONNECTOR,9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Incl 19, 21

1шт.

10

701-421

TEE,9/16" - 18 Male ORFS x 9/16" - 18 Male ORFS x 9/16" - 18 Female ORFS

Incl 19

1шт.

11

700-456

TEE,9/16" - 18 Male ORFS x 9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Incl 19, 21

1шт.

12

84539838

HYDRAULIC HOSE

263mm L

1шт.

13

84538677

HYDRAULIC HOSE

367mm L

1шт.

14

84561076

HOSE ASSY.

1676mm L, Incl 20

2шт.

15

86566989

CABLE TIE,208mm L

4шт.

16

L18331

CABLE TIE,375.9mm L, Nylon, Black

3шт.

17

87492055

PROTECTIVE SLEEVE

2шт.

18

87023162

PIN,9.53mm OD x 44.45mm L

2шт.

19

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

10шт.

20

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

21

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

3шт.
