(82.100.020) - VAR - 734006, 734007 - BUCKET COUPLING, XT

Запчасти Case 521G (82.100.020) - VAR - 734006, 734007 - BUCKET COUPLING, XT (82) - FRONT LOADER & BUCKET

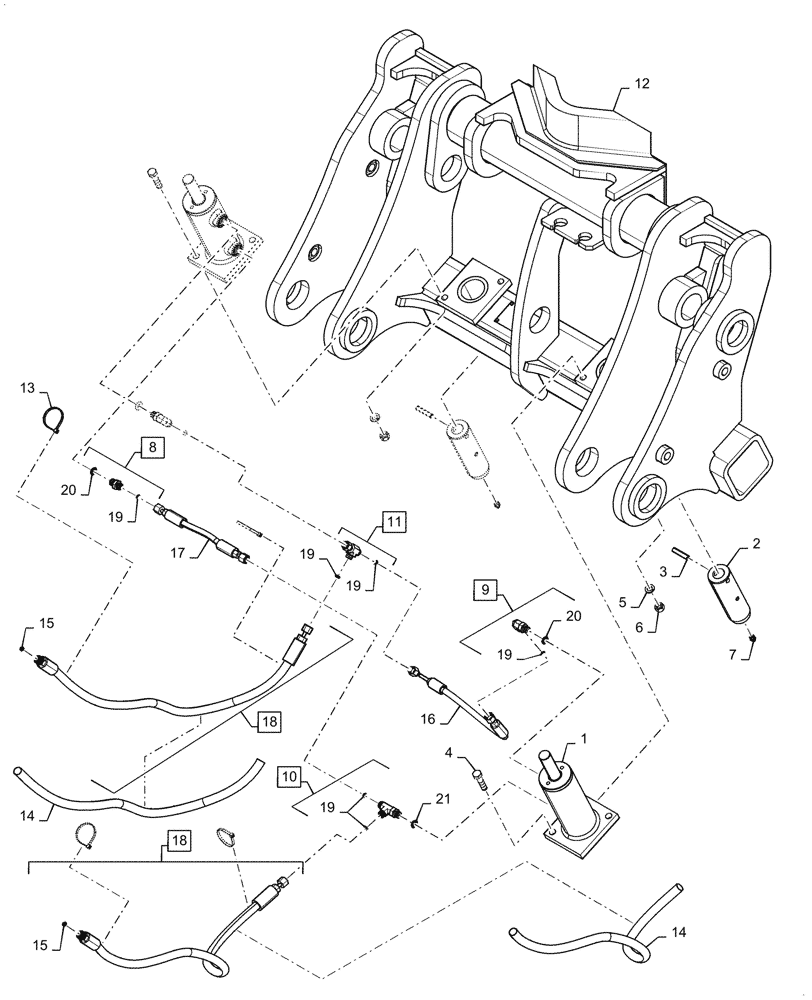

Схема запчастей Case 521G - (82.100.020) - VAR - 734006, 734007 - BUCKET COUPLING, XT (82) - FRONT LOADER & BUCKET
19
20
19
11
10
19
4
7
16
15
20
2
5
18
19
14
14
1
21
9
8
6
13
17
15
12
19
18
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84538634

HYDRAULIC CYLINDER

2шт.

2

84538636

PIN,50.8mm OD x 162.6mm L

2шт.

3

87023162

PIN,9.53mm OD x 44.45mm L

2шт.

4

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

4шт.

5

892-11012

LOCK WASHER,M12

4шт.

6

829-1412

NUT,M12, Cl 10.9

4шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

8

700-153

HYD CONNECTOR,9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Incl 19, 20

1шт.

9

700-378

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Incl 19, 20

2шт.

10

700-456

TEE,9/16" - 18 Male ORFS x 9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Incl 19, 21

1шт.

11

701-421

TEE,9/16" - 18 Male ORFS x 9/16" - 18 Male ORFS x 9/16" - 18 Female ORFS

Incl 19

1шт.

12

48014758

FRAME

Coupler

1шт.

13

86566989

CABLE TIE,208mm L

4шт.

14

86024407

PROTECTING COVER

1.25" ID x 1170mm L

2шт.

15

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

16

84538677

HYDRAULIC HOSE

367mm L

1шт.

17

84539838

HYDRAULIC HOSE

263mm L

1шт.

18

84561077

HOSE ASSY.

1041mm L, XT Coupler, Incl 15

2шт.

19

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

4шт.

20

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

2шт.

21

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.
