Запчасти Case 521G (55.988.020) - SELECTIVE CATALYTIC REDUCTION SENSOR HARNESS ASSEMBLY (55) - ELECTRICAL SYSTEMS

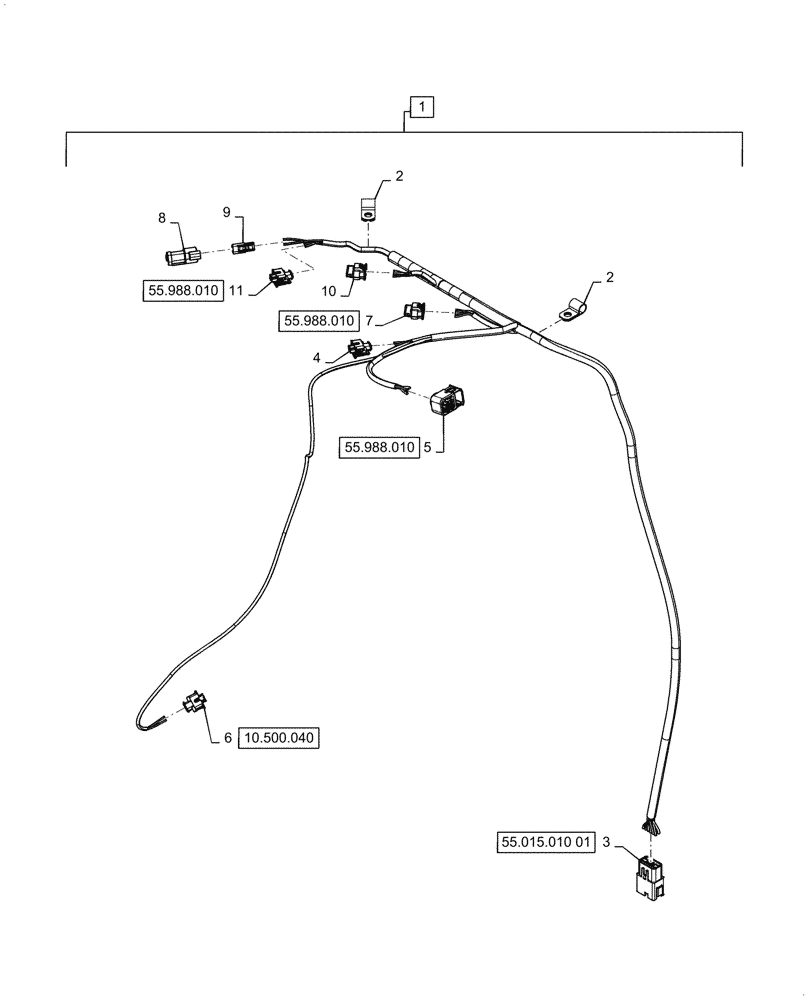

Схема запчастей Case 521G - (55.988.020) - SELECTIVE CATALYTIC REDUCTION SENSOR HARNESS ASSEMBLY (55) - ELECTRICAL SYSTEMS
55.988.010
9
2
3
4
11
1
10
5
6
8
7
2
10.500.040
55.015.010 01
55.988.010
55.988.010

Артикул

Название

Примечание

Количество

1

47732071

WIRE HARNESS

SCR Sensors, Complete Harness, Incl 2 - 11

1шт.

2

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

2шт.

3

87695724

ELEC CONNECTOR,Male, 12 Pole

SCR harness to Main Engine Harness

1шт.

3

87697947

ELEC. TERMINAL PIN,Nickel, 0.50 - 1.00mm

12шт.

3

87698541

LOCKING TAB,Wedge Lock, 12-Pin

1шт.

4

87709793

WIRE CONNECTOR,Female, 2 Cavities

Downstream Exhaust Temp Sensor

1шт.

4

87705971

CONTACT

2шт.

5

84146686

ELEC CONNECTOR,Female, 4 Cavities

NH3 ECU

1шт.

6

87709798

ELEC CONNECTOR,Female, 2 Cavities

2 Way Receptacle Housing, DEF Injector Unit

1шт.

6

84152584

TERMINAL,Tin, 0.50 - 1.00mm

4шт.

7

84190317

WIRE CONNECTOR,Female, 5 Cavities

NOX Sensor

1шт.

7

47400436

TERMINAL

5шт.

8

84058092

CONTACT HOUSING,120 Ohm Resistor

Downstream Temp Sensor

1шт.

9

225295C1

ELEC CONNECTOR,Female, 3 Pin

Downstream Temp Sensor Resistor Plug

1шт.

9

87695609

ELEC. TERMINAL PIN,Female, 0.5 - 1.2 mm2

3шт.

9

84074639

LOCKING TAB,Wedge Lock

Wedge Lock

1шт.

10

84190317

WIRE CONNECTOR,Female, 5 Cavities

NOX Sensor

1шт.

10

47400436

TERMINAL

5шт.

11

87709793

WIRE CONNECTOR,Female, 2 Cavities

Upstream Exhaust Temp Sensor

1шт.

11

87705971

CONTACT

2шт.

Выбрано товаров: 20
