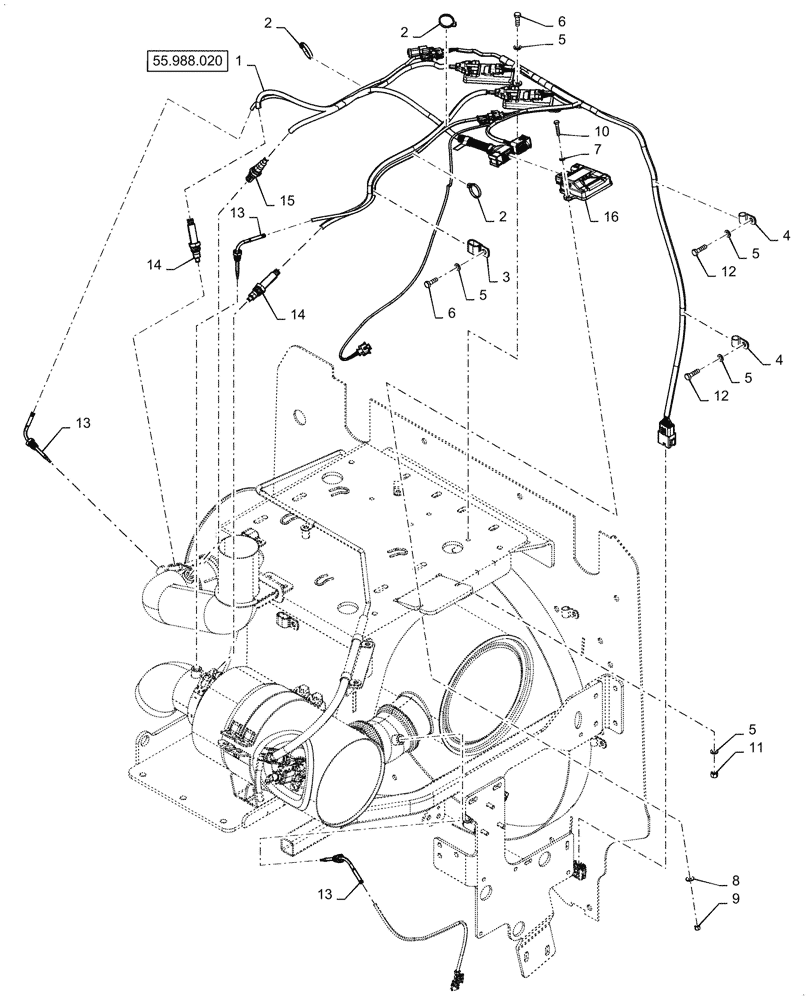

Запчасти Case 521G (55.988.010) - SELECTIVE CATALYTIC REDUCTION SENSOR HARNESS INSTALLATION (55) - ELECTRICAL SYSTEMS

1

47732071

WIRE HARNESS

SCR Sensors

1шт.

2

L11541

CABLE TIE,203.2mm L, Nylon

11шт.

3

L19029

CLAMP

2шт.

4

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

2шт.

5

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

14шт.

6

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

8шт.

7

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

8

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

2шт.

9

832-10406

NUT,M6 x 1, Cl 8

2шт.

10

627-6030

BOLT,Hex, M6 x 1 x 30mm, Cl 10.9, Full Thd

2шт.

11

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

12

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

2шт.

13

47478880

TEMPERATURE SENDER,50mm, Closed

3шт.

14

84498212

SENSOR

NOX

2шт.

15

47520140

SENSOR,8 Pin

NH3

1шт.

16

47368959

ECU

NH3

1шт.
