(55.530.010[01]) - VAR - 424234 - REAR VIEW CAMERA

Запчасти Case 521G (55.530.010[01]) - VAR - 424234 - REAR VIEW CAMERA (55) - ELECTRICAL SYSTEMS

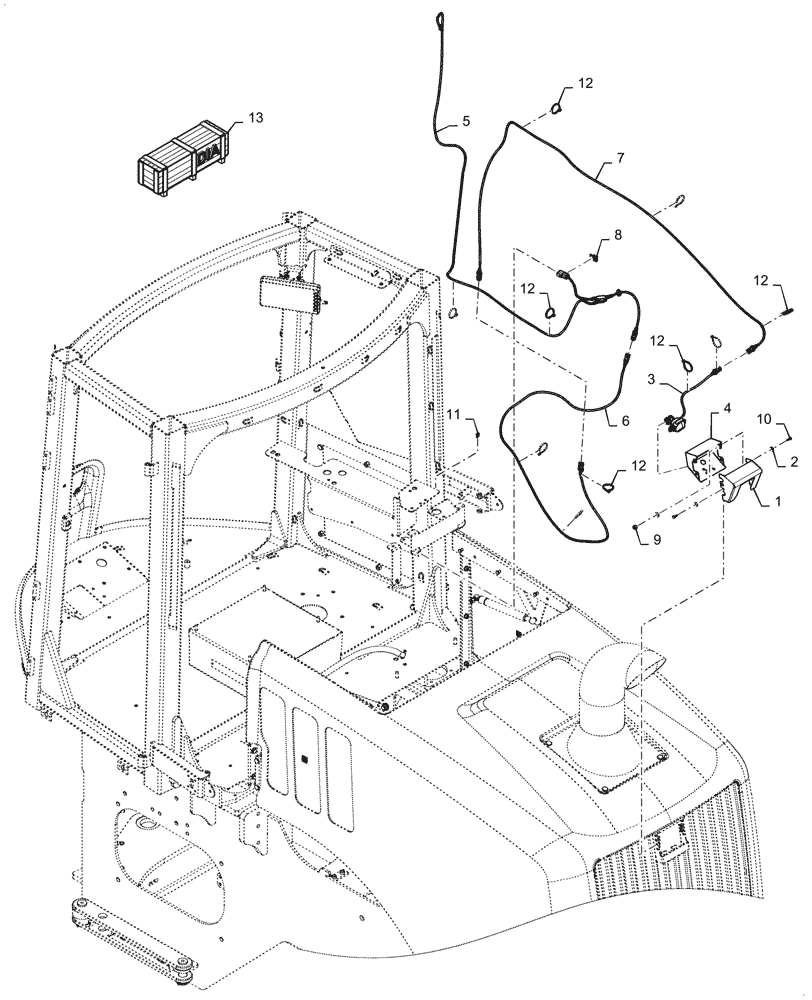

Схема запчастей Case 521G - (55.530.010[01]) - VAR - 424234 - REAR VIEW CAMERA (55) - ELECTRICAL SYSTEMS
10
5
12
7
13
11
2
1
12
8
3
9
12
4
6
12
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47405023

COVER

Camera, Black

1шт.

2

47513820

WASHER,6.4mm ID x 15mm OD x 1.5mm Thk

12шт.

3

48024374

VIDEO CAMERA

Color, Dual Voltage

1шт.

4

47816329

BRACKET

Monitor

1шт.

5

47829973

CABLE

Monitor

1шт.

6

47830016

CABLE EXTENSION

Camera

1шт.

7

47830018

CABLE EXTENSION

Camera

1шт.

8

84322203

CLIP

Mounting

1шт.

9

86500656

LOCK NUT,M6 x 1, Cl 8

4шт.

10

87020138

BOLT,Hex, M6 x 16mm, Cl 8.8

8шт.

11

121410A1

FUSE,5A, Mini, Tan

Load Center 2, Position F11

1шт.

12

L11541

CABLE TIE,203.2mm L, Nylon

16шт.

13

47982517

KIT

DIA KIT, Rear View Camera, Incl 1 - 12, Instruction Sheet 47982519

1шт.
