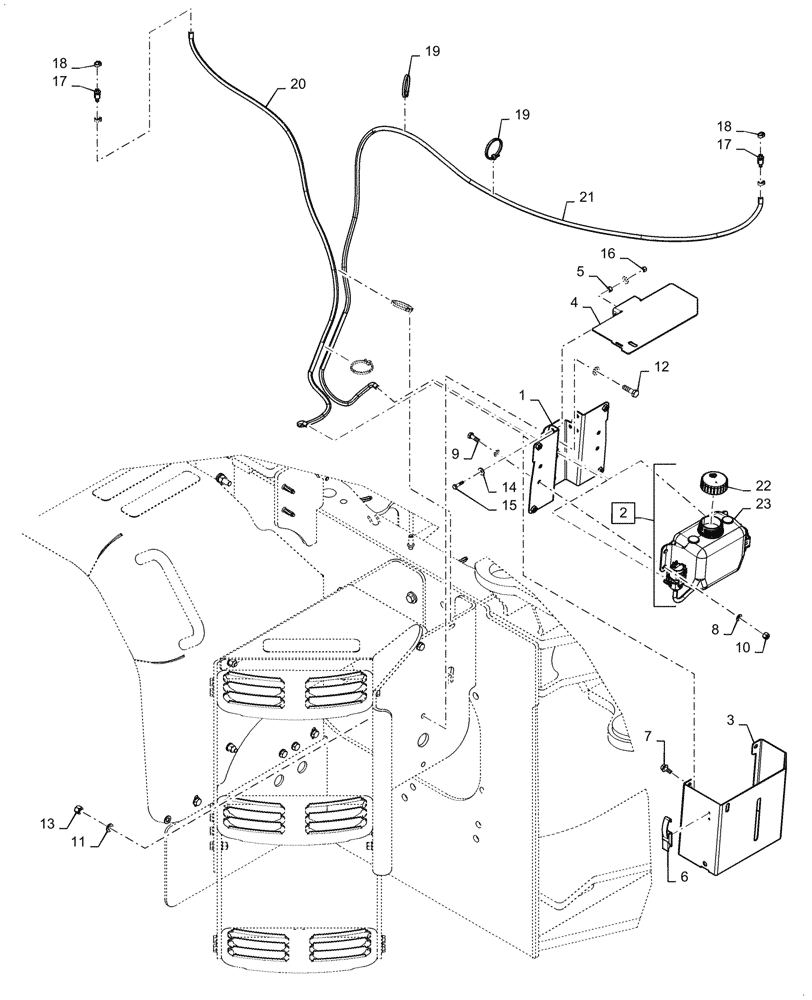

Запчасти Case 521G (55.518.010) - WINDSHIELD WASHER RESERVOIR (55) - ELECTRICAL SYSTEMS

1

48053334

BRACKET

Washer Bottle

1шт.

2

87661890

CONTAINER

Reservoir, Incl 22, 23

1шт.

3

48053336

SHIELD

Washer Bottle

1шт.

4

47969128

COVER

Washer Bottle

1шт.

5

87605321

SPACER,6.8mm ID x 10.3mm OD x 6.4mm L

2шт.

6

60-1640T1

SUPPORT

Latch

1шт.

7

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

4шт.

8

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

8шт.

9

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.

10

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

11

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

12

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

2шт.

13

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

14

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

4шт.

15

627-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 10.9, Full Thd

2шт.

16

832-10406

NUT,M6 x 1, Cl 8

2шт.

17

84037530

VALVE

2шт.

18

84477330

HOSE CLAMP,8.97mm - 10.11mm

4шт.

19

L11541

CABLE TIE,203.2mm L, Nylon

4шт.

20

87661888

HOSE,0.188 ID x 54.00"

82' L

1шт.

21

371846A1

HOSE

54' L

1шт.

22

87439461

CAP

Reservoir

1шт.

23

48042633

PUMP,24V

Washer Pump

1шт.
