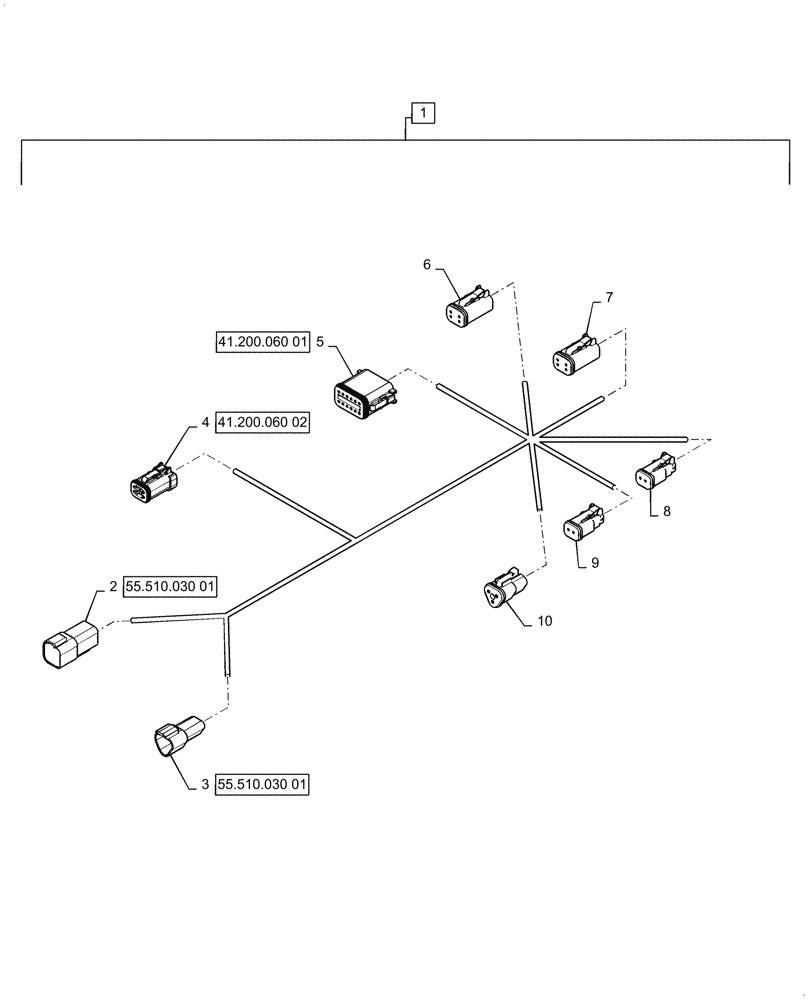

Запчасти Case 521G (55.512.020) - VAR - 482913, 482930 - JOYSTICK HARNESS ASSEMBLY (55) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
47996948
WIRE HARNESS
Incl 2 - 10
1шт.
3
87695723
ELEC CONNECTOR,Male , 3 Pole
JSS Frame to Cab Can
1шт.
3
84068583
PLUG,12 - 16 Ga, White
Cavity C
1шт.
3
84149208
WEDGE
Wedge Lock
1шт.
4
84563557
ELEC CONNECTOR
Steering Wheel Motion Sensor
1шт.
4
87695921
CONTACT,Female, Nickel, 0.50 - 1.00mm
4шт.
4
84074640
LOCKING TAB,Wedge Lock
1шт.
5
87695592
CONTACT HOUSING,Female, 12 Pole
Joystick Steering Valve
1шт.
5
87695921
CONTACT,Female, Nickel, 0.50 - 1.00mm
Cavities 4 - 10
7шт.
5
84068583
PLUG,12 - 16 Ga, White
Cavities 1- 3, 11, 12
5шт.
5
87695651
LOCKING TAB,Wedge Lock
1шт.
6
87694153
CONTACT HOUSING,Female, 4 Cavities
Cut Off Sensor
1шт.
6
87695921
CONTACT,Female, Nickel, 0.50 - 1.00mm
Cavities 1, 2, 4
3шт.
6
84068583
PLUG,12 - 16 Ga, White
Cavity 3
1шт.
6
84074640
LOCKING TAB,Wedge Lock
1шт.
7
87694153
CONTACT HOUSING,Female, 4 Cavities
Cut Off Sensor
1шт.
7
87695921
CONTACT,Female, Nickel, 0.50 - 1.00mm
Cavities 1,2, 4
3шт.
7
84068583
PLUG,12 - 16 Ga, White
Cavity 3
1шт.
7
84074640
LOCKING TAB,Wedge Lock
1шт.
8
87695582
ELEC CONNECTOR,Female, 2 Pole
Cut Off Valve Solenoid
1шт.
8
87695921
CONTACT,Female, Nickel, 0.50 - 1.00mm
2шт.
9
87695582
ELEC CONNECTOR,Female, 2 Pole
Cut Off Valve Solenoid
1шт.
9
87695921
CONTACT,Female, Nickel, 0.50 - 1.00mm
2шт.
10
87695580
ELEC CONNECTOR,Female, 3 Pole
Terminator Can
1шт.
10
87695921
CONTACT,Female, Nickel, 0.50 - 1.00mm
Cavities A, B
2шт.
10
84068583
PLUG,12 - 16 Ga, White
Cavity C
1шт.
10
84058092
CONTACT HOUSING,120 Ohm Resistor
1шт.
10
84058194
PLUG
1шт.
Выбрано товаров: 34
