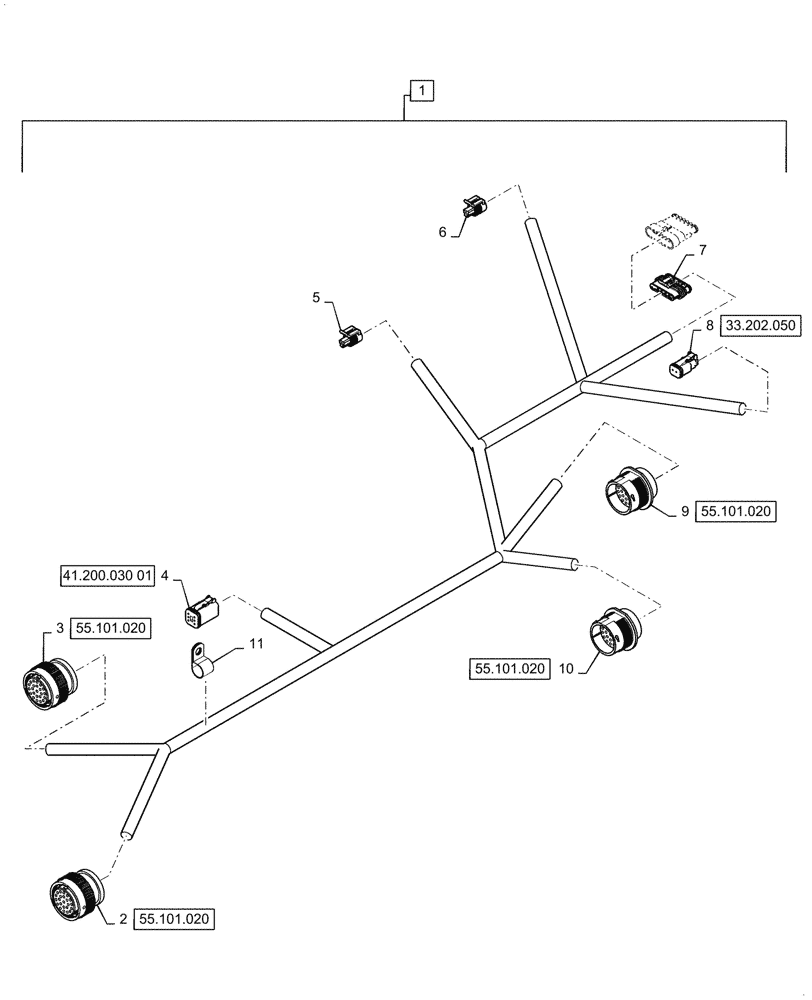

Запчасти Case 521G (55.510.020[02]) - CAB BOTTOM HARNESS ASSEMBLY (55) - ELECTRICAL SYSTEMS

1

48004589

WIRE HARNESS

Cab Bottom, Incl 2 - 11

1шт.

2

87704523

ELEC CONNECTOR

Bottom to Cab, Standard

1шт.

2

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Cavities, 3 - 15, 17 - 28

25шт.

2

84068583

PLUG,12 - 16 Ga, White

Cavities, 1, 2, 16, 29 - 31

6шт.

3

84281075

ELEC CONNECTOR

Bottom to Cab, EH

1шт.

3

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Cavities, A - N, S, T, W, X

17шт.

3

84068583

PLUG,12 - 16 Ga, White

Cavities, O - R, U, V

6шт.

4

87694112

ELEC CONNECTOR,Female, 6 Pole

Bottom to Sec Strg

1шт.

4

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Cavities, 1 - 4

4шт.

4

84068583

PLUG,12 - 16 Ga, White

Cavities, 5, 6

2шт.

4

84391167

CAP

1шт.

4

87694150

LOCKING TAB,Wedge Lock

1шт.

5

84078681

WIRE CONNECTOR,Female

Brake Supply Pressure Warning

1шт.

5

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

3шт.

6

84078681

WIRE CONNECTOR,Female

Brake Pressure Sensor

1шт.

6

84078681

WIRE CONNECTOR,Female

3шт.

7

87710588

ELEC CONNECTOR

Brake Pedal Angle

1шт.

7

82012085

TERMINAL CONNECTOR,Female, Tin, 0.75 - 1.5mm

Cavities, 1 - 3

3шт.

7

87680691

PLUG

Cavities 4 - 6

3шт.

7

87691968

ELEC CONNECTOR,Female, 6 Cavities

Superseal

1шт.

8

87695582

ELEC CONNECTOR,Female, 2 Pole

Parking Brake Valve

1шт.

8

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

2шт.

8

84074638

LOCKING TAB,Locking Wedge, Green

1шт.

9

87696087

ELEC CONNECTOR

Bottom to Front, Standard

1шт.

9

87695623

ELEC. TERMINAL PIN

Cavities, A, C, F, H - V

15шт.

9

84068583

PLUG,12 - 16 Ga, White

Cavities, B, D, E, G, W, X

6шт.

9

84420455

LOCK WASHER,48mm ID x 45.8mm OD

1шт.

9

87271930

NUT

Plast Panel Nut

1шт.

10

87700160

ELEC CONNECTOR

Bottom to Front, EH

1шт.

10

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Cavities, A - N, P, Q, S, T, V - X

20шт.

10

84068583

PLUG,12 - 16 Ga, White

Cavities, O, R, U

3шт.

10

84420455

LOCK WASHER,48mm ID x 45.8mm OD

1шт.

10

87271930

NUT

Plastic Panel Nut

1шт.

11

515-24222

CLAMP,7/8", Insul, 7/16" Bolt

1шт.
