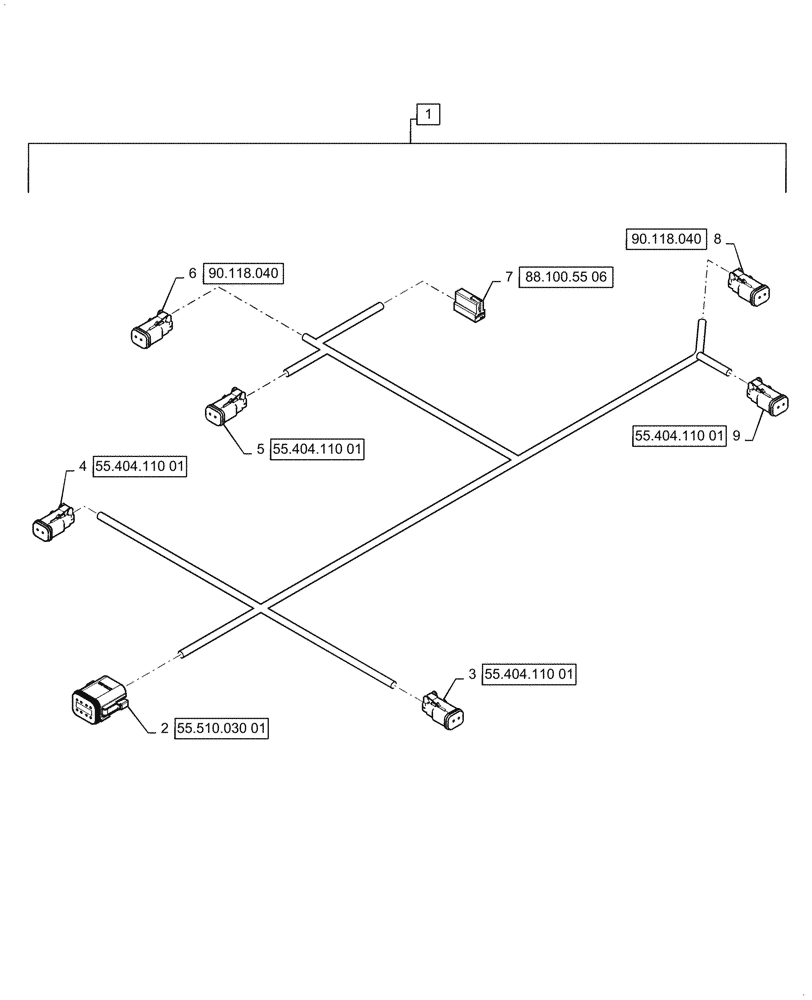

Запчасти Case 521G (55.510.010[02]) - CAB ROOF HARNESS ASSEMBLY (55) - ELECTRICAL SYSTEMS

1

47892206

WIRE HARNESS

Roof, Incl 2 - 9

1шт.

2

87700325

ELEC CONNECTOR,Female, 8 Cavities

Roof to Cab

1шт.

2

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Cavities, 1 - 7

7шт.

2

84068583

PLUG,12 - 16 Ga, White

Cavity 8

1шт.

2

47438785

COVER

Shell

1шт.

2

84806312

LOCKING TAB,Wedge Lock

Wedge Lock

1шт.

3

87695582

ELEC CONNECTOR,Female, 2 Pole

Right Rear Work Light

1шт.

3

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

2шт.

3

84074638

LOCKING TAB,Locking Wedge, Green

1шт.

4

87695582

ELEC CONNECTOR,Female, 2 Pole

Left Rear Work Light

1шт.

4

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

2шт.

4

84074638

LOCKING TAB,Locking Wedge, Green

1шт.

5

87695582

ELEC CONNECTOR,Female, 2 Pole

Left Front Work Light

1шт.

5

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

2шт.

5

84074638

LOCKING TAB,Locking Wedge, Green

1шт.

6

87695582

ELEC CONNECTOR,Female, 2 Pole

Heated Mirror, Left

1шт.

6

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

2шт.

6

84074638

LOCKING TAB,Locking Wedge, Green

1шт.

7

84015523

WIRE CONNECTOR,Female

Beacon

1шт.

7

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

2шт.

8

87695582

ELEC CONNECTOR,Female, 2 Pole

Heated Mirror, Right

1шт.

8

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

2шт.

8

84074638

LOCKING TAB,Locking Wedge, Green

1шт.

9

87695582

ELEC CONNECTOR,Female, 2 Pole

Right Front Work Light

1шт.

9

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

2шт.

9

84074638

LOCKING TAB,Locking Wedge, Green

1шт.
