(55.425.020) - ELECTROHYDRAULIC SENSOR, LIFT AND TILT, XT

Запчасти Case 521G (55.425.020) - ELECTROHYDRAULIC SENSOR, LIFT AND TILT, XT (55) - ELECTRICAL SYSTEMS

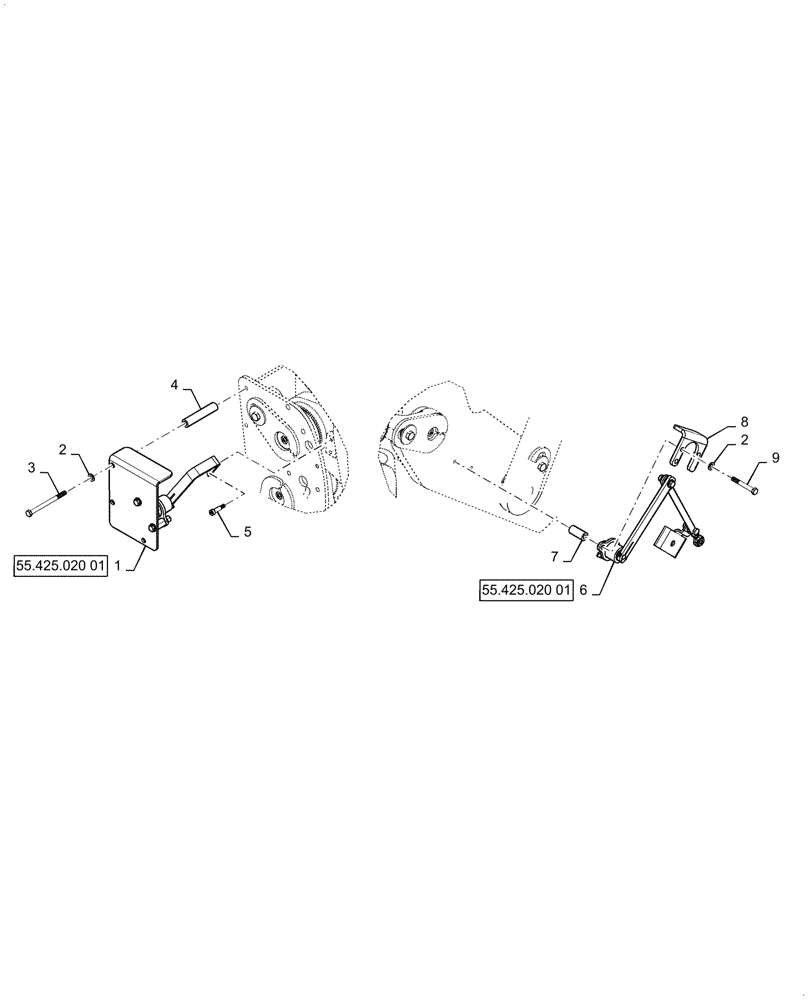

Схема запчастей Case 521G - (55.425.020) - ELECTROHYDRAULIC SENSOR, LIFT AND TILT, XT (55) - ELECTRICAL SYSTEMS
55.425.020 01
4
5
8
2
7
3
2
1
6
9
55.425.020 01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47772148

SENSOR

EH, Lift

1шт.

2

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

5шт.

3

827-12150

BOLT,Hex, M12 x 1.75 x 150mm, Cl 10.9

EH Sensor, Standoff

3шт.

4

47786834

SPACER

3шт.

5

561-707

HEX SOC SCREW,M10 x 34.4, 12 x 30mm shldr, Cl 12.9

1шт.

6

47772612

SENSOR

EH, Tilt

1шт.

7

47786277

SUPPORT

EH Sensor, Standoff

2шт.

8

47772552

COVER

1шт.

9

827-12090

BOLT,Hex, M12 x 1.75 x 90mm, Cl 10.9

2шт.
