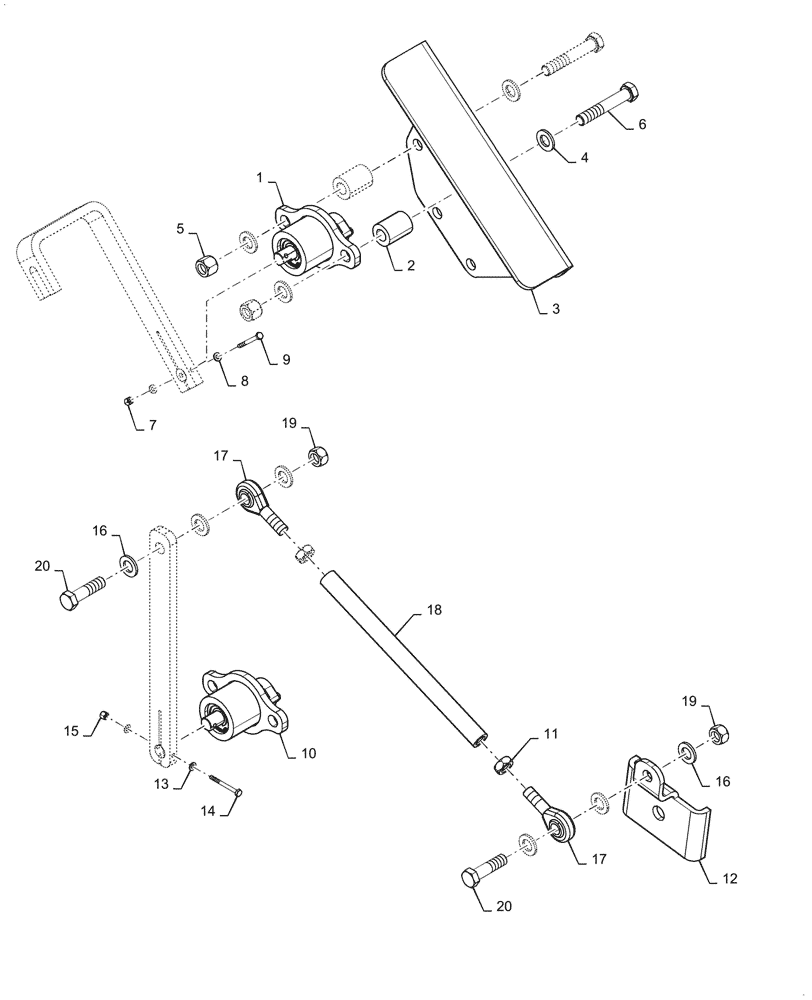

Запчасти Case 521G (55.425.020[01]) - ELECTROHYDRAULIC SENSOR ASSEMBLY, LIFT AND TILT, XT (55) - ELECTRICAL SYSTEMS

1

47772374

SENSOR

LIft

1шт.

2

47786469

Support

SUPPORT

2шт.

3

48084219

Cover

COVER

1шт.

4

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

4шт.

5

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

6

827-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

2шт.

7

832-10404

NUT,M4 x 0.7, Cl 8.8

1шт.

8

895-11004

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

2шт.

9

87384106

BOLT,M4 x 42.92mm, Cl 8.8

1шт.

10

47772374

SENSOR

Tilt

1шт.

11

47715978

NUT

2шт.

12

47885410

MOUNT

1шт.

13

895-11004

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

2шт.

14

87384106

BOLT,M4 x 42.92mm, Cl 8.8

1шт.

15

832-10404

NUT,M4 x 0.7, Cl 8.8

1шт.

16

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

6шт.

17

87695355

BALL JOINT HEAD,1/2" - 20

2шт.

18

47772541

ROD

1шт.

19

829-1412

NUT,M12, Cl 10.9

2шт.

20

627-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

2шт.
