(55.425.010) - ELECTROHYDRAULIC SENSOR, LIFT AND TILT, Z-BAR & XR

Запчасти Case 521G (55.425.010) - ELECTROHYDRAULIC SENSOR, LIFT AND TILT, Z-BAR & XR (55) - ELECTRICAL SYSTEMS

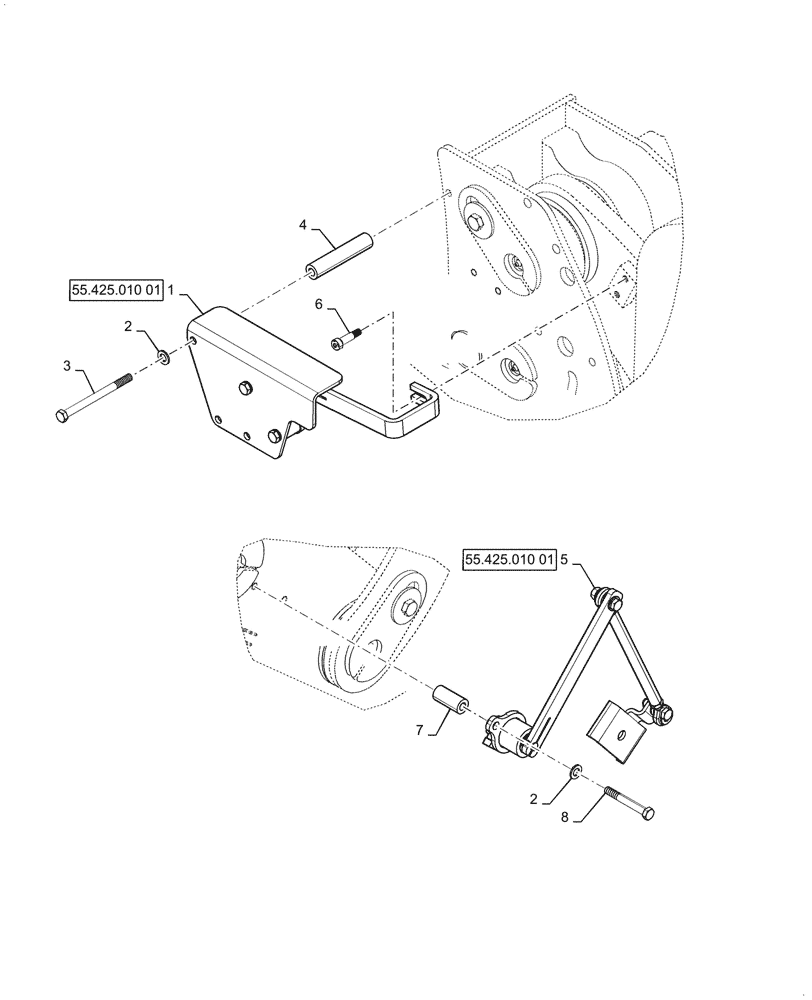

Схема запчастей Case 521G - (55.425.010) - ELECTROHYDRAULIC SENSOR, LIFT AND TILT, Z-BAR & XR (55) - ELECTRICAL SYSTEMS
55.425.010 01
8
6
1
2
7
5
2
3
4
55.425.010 01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

Please Follow Figure Link

1шт.

2

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

5шт.

3

827-12150

BOLT,Hex, M12 x 1.75 x 150mm, Cl 10.9

3шт.

4

47786834

SPACER

Eh Sensor Standoff

3шт.

5

NSS

NOT SOLD SEPARAT

Please Follow Figure Link

1шт.

6

561-707

HEX SOC SCREW,M10 x 34.4, 12 x 30mm shldr, Cl 12.9

2шт.

7

47788220

SUPPORT

EH Sensor

2шт.

8

827-12100

BOLT,Hex, M12 x 1.75 x 100mm, Cl 10.9

2шт.
