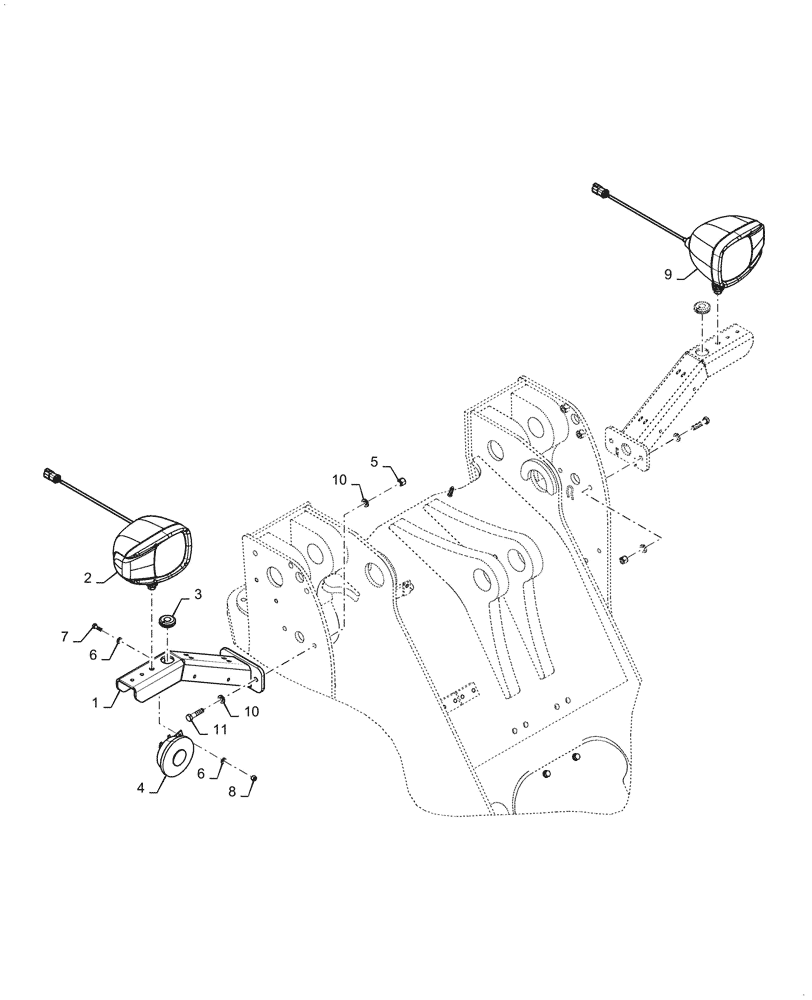

Запчасти Case 521G (55.404.030) - VAR - 734088 - FRONT LIGHT INSTALLATION, LED (55) - ELECTRICAL SYSTEMS

1

48003408

BRACKET

Light

2шт.

2

47933005

LAMP

RH, W/ Turn Lamp, No Serviceable Parts

1шт.

3

248-23108

GROMMET,3/4" ID x 1 7/16" Groove Dia, Str Cut

2шт.

4

87382200

HORN

300 Hz

1шт.

5

832-10412

NUT,M12 x 1.75, Cl 8

4шт.

6

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

2шт.

7

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

1шт.

8

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

9

47933011

LAMP

LH, W/ Turn Lamp, No Serviceable Parts

1шт.

10

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

8шт.

11

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

4шт.
