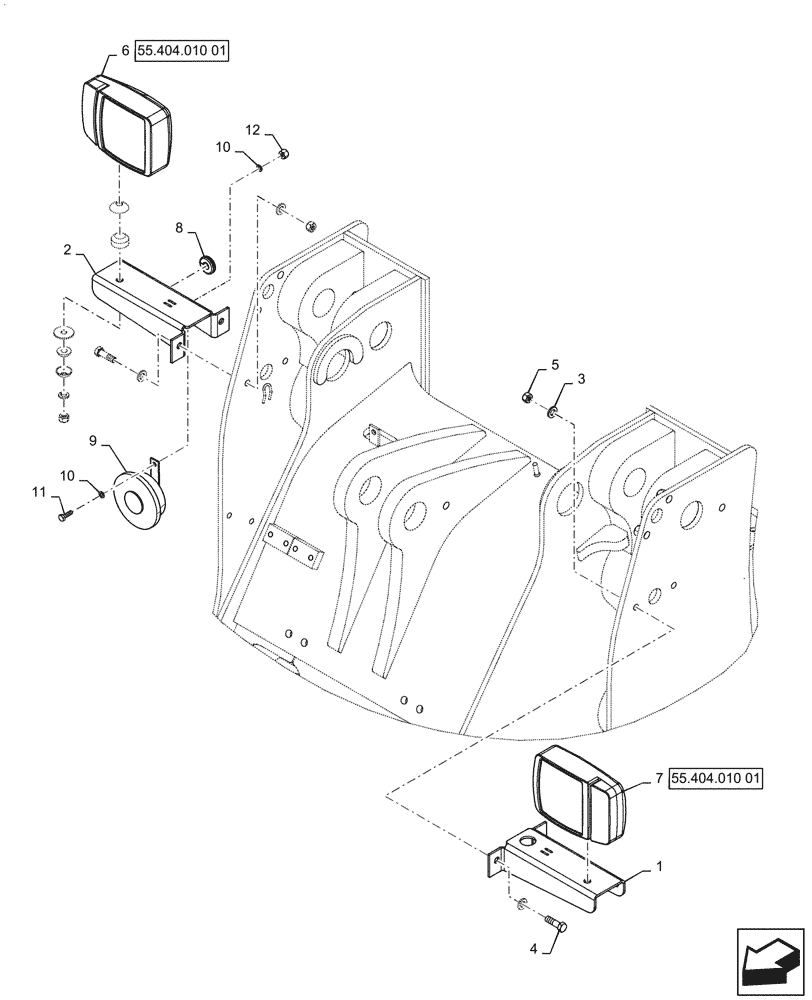

Запчасти Case 521G (55.404.010) - VAR - 734087 - FRONT LIGHT INSTALLATION (55) - ELECTRICAL SYSTEMS

1

87749485

BRACKET

Left Hand

1шт.

2

87749490

BRACKET

Right Hand

1шт.

3

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

8шт.

4

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

4шт.

5

829-1412

NUT,M12, Cl 10.9

4шт.

6

368056A1

LIGHT,Halogen, 24V, 70W, Clear

Left Hand

1шт.

7

368055A1

LIGHT,Halogen, 24V, 70W, Clear

Right Hand

1шт.

8

248-2376

GROMMET,5/8" ID x 1 1/4" Groove Dia, Str Cut

Rubber

2шт.

9

87382200

HORN

300Hz

1шт.

10

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

11

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

1шт.

12

412250

NUT,M8 x 1.25, Cl 8

1шт.
