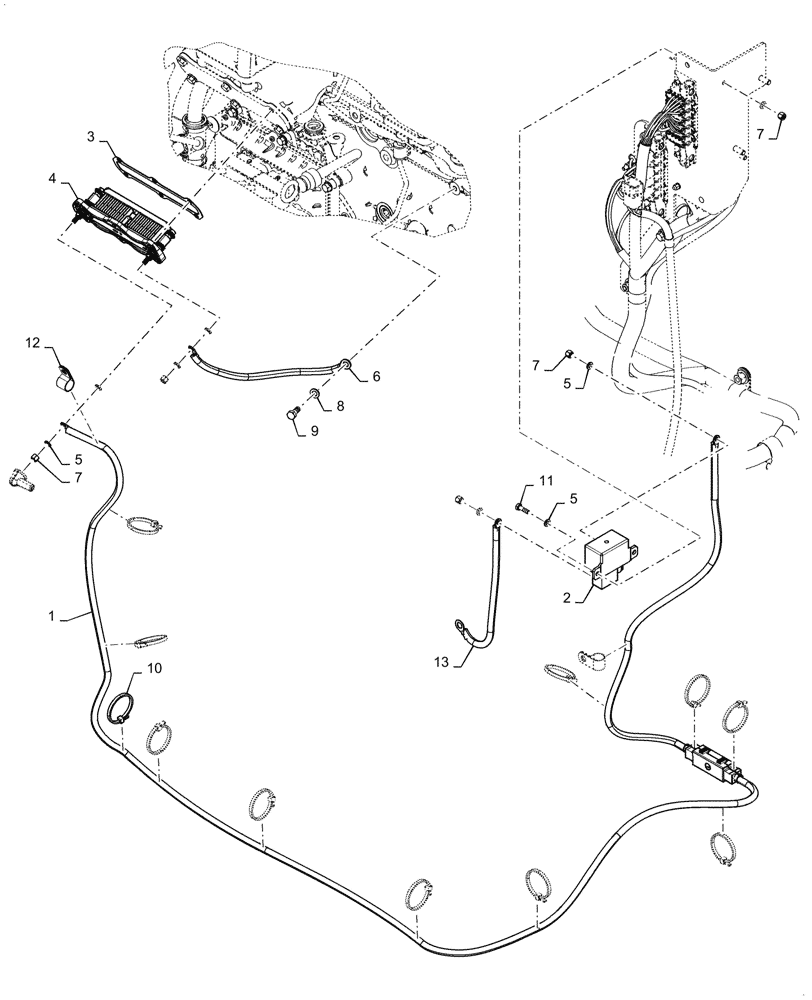

Запчасти Case 521G (55.202.010) - VAR - 482322 - GRID HEATER INSTALLATION (55) - ELECTRICAL SYSTEMS

1

47615205

CABLE

Grid, Heater Power

1шт.

2

84540512

RELAY,150A

1шт.

3

2854701

GASKET,0.8mm Thk

1шт.

4

87300128

HEATER,24V, 2400W

1шт.

5

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

5шт.

6

87398558

CABLE

Grid, Heater Ground

1шт.

7

832-10406

NUT,M6 x 1, Cl 8

7шт.

8

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

9

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

1шт.

10

L11541

CABLE TIE,203.2mm L, Nylon

11шт.

11

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

2шт.

12

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

2шт.

13

47411271

ELECTRIC CABLE

Grid, Heater Relay Power

1шт.
