Запчасти Case 521G (55.101.040) - FRONT CHASSIS HARNESS ASSEMBLY, XR (55) - ELECTRICAL SYSTEMS

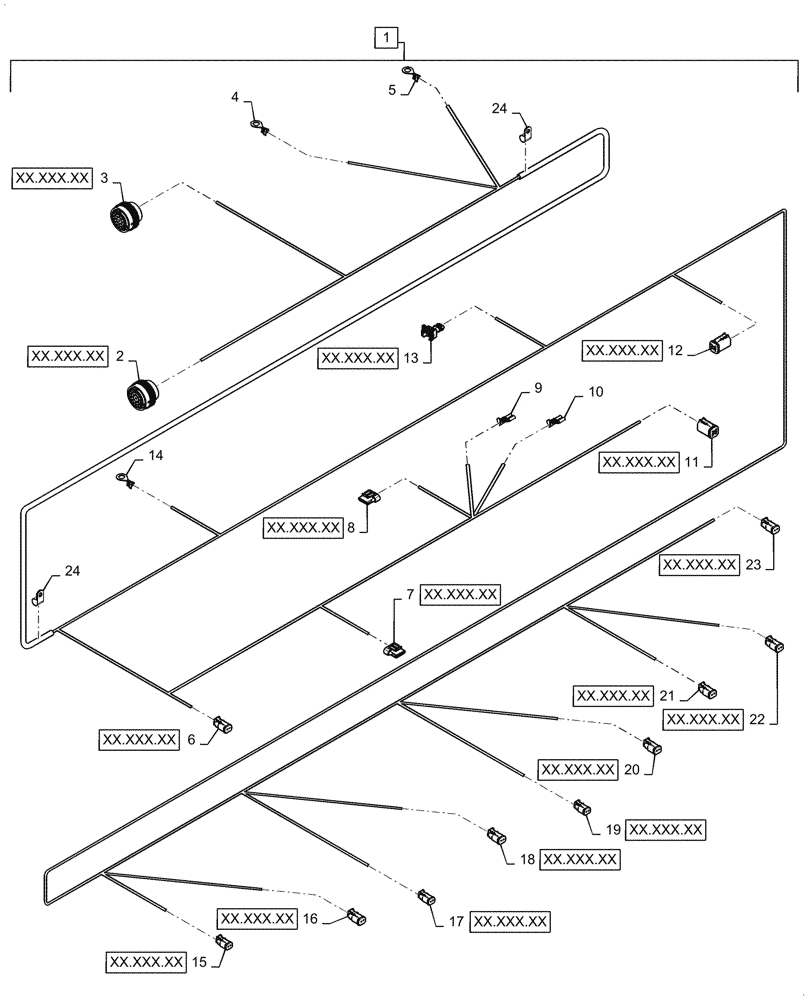

Схема запчастей Case 521G - (55.101.040) - FRONT CHASSIS HARNESS ASSEMBLY, XR (55) - ELECTRICAL SYSTEMS
1
10
xx.xxx.xx
3
14
xx.xxx.xx
xx.xxx.xx
xx.xxx.xx
xx.xxx.xx
15
12
xx.xxx.xx
4
6
xx.xxx.xx
7
17
xx.xxx.xx
xx.xxx.xx
11
20
18
xx.xxx.xx
13
22
xx.xxx.xx
23
2
xx.xxx.xx
xx.xxx.xx
16
9
xx.xxx.xx
xx.xxx.xx
5
21
xx.xxx.xx
24
19
24
xx.xxx.xx
8

Артикул

Название

Примечание

Количество

1

47977416

WIRE HARNESS

Front Chassis, Incl 2 - 24

1шт.

2

87704426

ELEC CONNECTOR

Front to Bottom Standard

1шт.

2

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Cavities, C, F, H - T, V

13шт.

2

84068583

PLUG,12 - 16 Ga, White

Cavities, A, B, D, E, G, U, W, X

8шт.

3

87700170

WIRE CONNECTOR

Front to Bottom EH

1шт.

3

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Cavities, A - N, P, Q, S, T, V - X

20шт.

3

84068583

PLUG,12 - 16 Ga, White

Cavities, O, R, U

3шт.

4

84426126

TERMINAL

Ground

1шт.

5

84140737

TERMINAL CONNECTOR

Ground

1шт.

6

87695582

ELEC CONNECTOR,Female, 2 Pole

Coupler Valve

1шт.

6

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

2шт.

6

84074638

LOCKING TAB,Locking Wedge, Green

1шт.

7

84403598

WIRE CONNECTOR

Bucket Angle Sensor

1шт.

7

87690510

ELEC. TERMINAL PIN,Female, 0.75 - 1 mm2

6шт.

8

84403598

WIRE CONNECTOR

Boom Angle Sensor

1шт.

9

87697629

ELEC. TERMINAL PIN,Female, 18 - 14 SAE

Horn Ground

1шт.

10

87697629

ELEC. TERMINAL PIN,Female, 18 - 14 SAE

Horn Power

1шт.

11

87694109

ELEC CONNECTOR

Front Combo Lamp, RH

1шт.

11

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Cavities, 1 - 5

5шт.

11

84068583

PLUG,12 - 16 Ga, White

Cavity 6

1шт.

11

84253889

JUNCTION

Shell

1шт.

11

87694149

ELEC CONNECTOR

Wedge Lock

1шт.

12

87694109

ELEC CONNECTOR

Front Combo Lamp, LH

1шт.

12

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Cavities, 1 - 5

5шт.

12

84068583

PLUG,12 - 16 Ga, White

Cavity 6

1шт.

12

84253889

JUNCTION

Shell

1шт.

12

87694149

ELEC CONNECTOR

Wedge Lock

1шт.

13

84607243

ELEC CONNECTOR,Female, 2 Cavities

Ride Control Solenoid

1шт.

13

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

2шт.

14

84140737

TERMINAL CONNECTOR

Chassis Ground

1шт.

15

87695582

ELEC CONNECTOR,Female, 2 Pole

Aux 2, RH

1шт.

15

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

2шт.

15

84074638

LOCKING TAB,Locking Wedge, Green

1шт.

16

87695582

ELEC CONNECTOR,Female, 2 Pole

Aux 2, LH

1шт.

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

2шт.

16

84074638

LOCKING TAB,Locking Wedge, Green

1шт.

17

87695582

ELEC CONNECTOR,Female, 2 Pole

Aux 1, RH

1шт.

17

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

2шт.

17

84074638

LOCKING TAB,Locking Wedge, Green

1шт.

18

87695582

ELEC CONNECTOR,Female, 2 Pole

Aux 1, LH

1шт.

18

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

2шт.

18

84074638

LOCKING TAB,Locking Wedge, Green

1шт.

19

87695582

ELEC CONNECTOR,Female, 2 Pole

Bucket Roll Solenoid

1шт.

19

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

2шт.

19

84074638

LOCKING TAB,Locking Wedge, Green

1шт.

20

87695582

ELEC CONNECTOR,Female, 2 Pole

Boom Raise

1шт.

20

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

2шт.

20

84074638

LOCKING TAB,Locking Wedge, Green

1шт.

21

87695582

ELEC CONNECTOR,Female, 2 Pole

Bucket Dump

1шт.

21

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

2шт.

21

84074638

LOCKING TAB,Locking Wedge, Green

1шт.

22

87695582

ELEC CONNECTOR,Female, 2 Pole

Boom Lower

1шт.

22

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

2шт.

22

84074638

LOCKING TAB,Locking Wedge, Green

1шт.

23

87695582

ELEC CONNECTOR,Female, 2 Pole

Pilot Enable

1шт.

23

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

2шт.

23

84074638

LOCKING TAB,Locking Wedge, Green

1шт.

24

515-24190

CLAMP,3/4", Insul, 7/16" Bolt

2шт.
