Запчасти Case 521G (55.024.010[02]) - TRANSMISSION HARNESS ASSEMBLY (55) - ELECTRICAL SYSTEMS

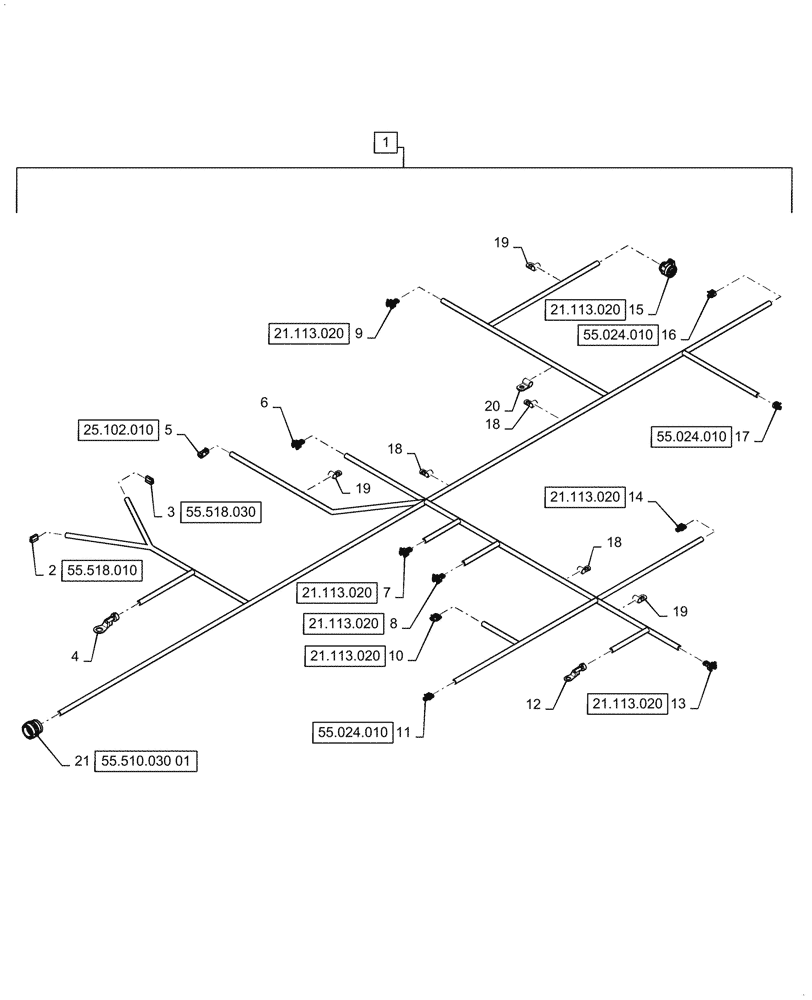

Схема запчастей Case 521G - (55.024.010[02]) - TRANSMISSION HARNESS ASSEMBLY (55) - ELECTRICAL SYSTEMS
55.518.030
4
12
10
20
14
2
17
13
18
18
6
7
19
9
18
19
5
16
15
11
3
19
1
21
8
25.102.010
55.518.010
55.510.030 01
21.113.020
21.113.020
21.113.020
21.113.020
21.113.020
21.113.020
21.113.020
55.024.010
55.024.010
55.024.010

Артикул

Название

Примечание

Количество

1

47865827

WIRE HARNESS

Transmission Harness, Incl 1-21

1шт.

2

84015523

WIRE CONNECTOR,Female

Front Washer Motor

1шт.

2

87697619

TERMINAL

Tin

2шт.

3

84015523

WIRE CONNECTOR,Female

Rear Washer Motor

1шт.

3

87697619

TERMINAL

Tin

2шт.

4

84140737

TERMINAL CONNECTOR

Chassis Ground

1шт.

5

87695582

ELEC CONNECTOR,Female, 2 Pole

Diff Lock Solenoid

1шт.

5

84074638

LOCKING TAB,Locking Wedge, Green

1шт.

5

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

2шт.

6

84364854

ELEC CONNECTOR

Speed Sensor, Engine

1шт.

6

84364855

WIRE CONNECTOR

Cap

1шт.

6

87702681

TERMINAL

Female

2шт.

6

87691480

SEAL

Cavity Seal

1шт.

7

84364854

ELEC CONNECTOR

Speed Sensor, Middle Wheel Chain, Male 2 Pin

1шт.

7

84364855

WIRE CONNECTOR

Cap

1шт.

7

87702681

TERMINAL

Female

2шт.

7

87691480

SEAL

Cavity Seal

1шт.

8

84364854

ELEC CONNECTOR

Speed Sensor, Turbine, Male 2 Pin

1шт.

8

84364855

WIRE CONNECTOR

Cap

1шт.

8

87702681

TERMINAL

Female

2шт.

8

87691480

SEAL

Cavity Seal

1шт.

9

84364854

ELEC CONNECTOR

Gear Oil Temp, Male 2 Pin

1шт.

9

84364855

WIRE CONNECTOR

Cap

1шт.

9

87702681

TERMINAL

Female

2шт.

9

87691480

SEAL

Cavity Seal

1шт.

10

84062580

CONNECTOR, ELEC

Speed Sensor, Gear Trans

1шт.

10

82035828

ELEC CONNECTOR

Cap

1шт.

10

82012085

TERMINAL CONNECTOR,Female, Tin, 0.75 - 1.5mm

3шт.

11

82012083

WIRE CONNECTOR,Female

Oil Filter Pressure Switch

1шт.

11

82012085

TERMINAL CONNECTOR,Female, Tin, 0.75 - 1.5mm

2шт.

12

84352277

TERMINAL

Hydraulic Filter Sensor, Ring Terminal

1шт.

13

84607243

ELEC CONNECTOR,Female, 2 Cavities

Hydraulic Oil Temp

1шт.

13

87702681

TERMINAL

Female, Tin

2шт.

14

82012083

WIRE CONNECTOR,Female

Trans Lockup Solenoid

1шт.

14

82012085

TERMINAL CONNECTOR,Female, Tin, 0.75 - 1.5mm

2шт.

15

47669071

ELEC CONNECTOR

Trans Controller On Transmission

1шт.

15

47703737

ELEC CONNECTOR

Cavity Plug

7шт.

16

84078681

WIRE CONNECTOR,Female

Redundant Brake Switch

1шт.

16

47633591

TERMINAL

0.35-0.50mm, Gold

3шт.

17

84078681

WIRE CONNECTOR,Female

Redundant Brake Switch

1шт.

17

47633591

TERMINAL

0.35-0.50mm, Gold

3шт.

18

515-24190

CLAMP,3/4", Insul, 7/16" Bolt

3шт.

19

515-2495

CLAMP,3/8", Insul, 7/16" Bolt

3шт.

20

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

1шт.

21

87696949

ELEC CONNECTOR

Transmission To Cab, Male 31 Pin

1шт.

21

86500035

ELEC. TERMINAL PIN,Male, 0.75 - 2mm

Cavities 1-6,10-12,14-29,31

26шт.

21

87697956

TERMINAL

Gold, Cavities 7-9,13,30

5шт.

Выбрано товаров: 47
