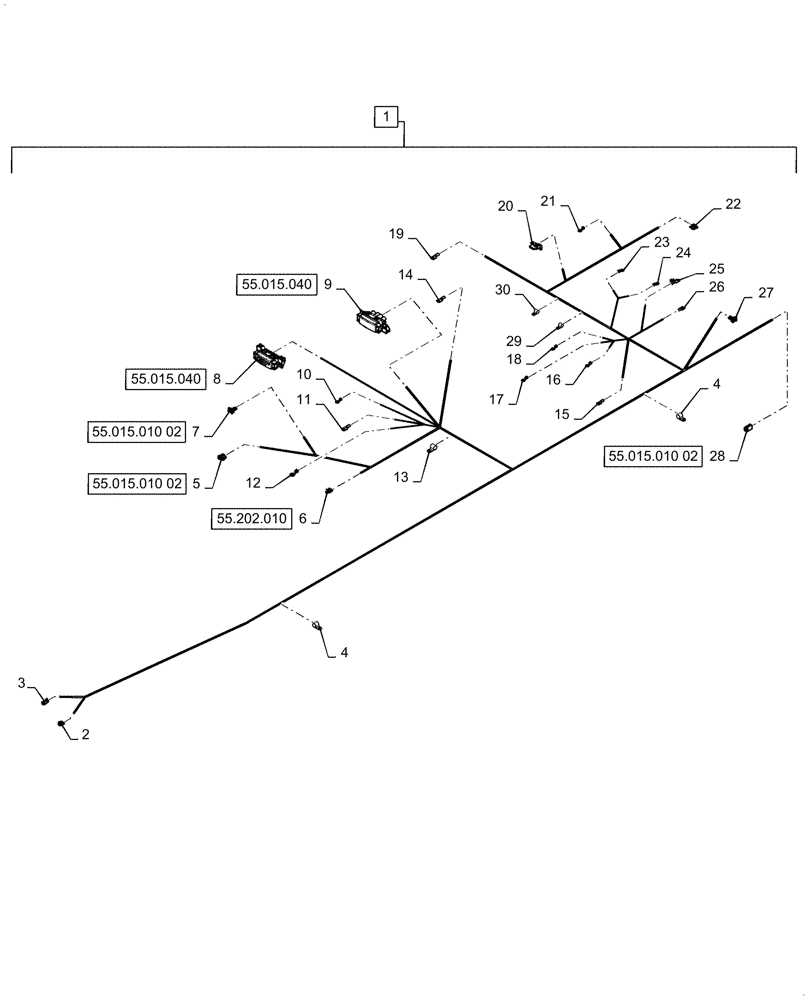

Запчасти Case 521G (55.015.020[02]) - ENGINE & REAR CHASSIS HARNESS ASSEMBLY (55) - ELECTRICAL SYSTEMS

1

47892929

WIRE HARNESS

Engine & Rear Chassis Harness, Incl 2 - 30

1шт.

2

87693821

ELEC CONNECTOR,Female, 2 Cavities

Solenoid Fan Control

1шт.

2

87688852

ELEC. TERMINAL PIN

2шт.

2

87705073

STOP LOCK

1шт.

3

87695582

ELEC CONNECTOR,Female, 2 Pole

Fan Reverser Solenoid

1шт.

3

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

2шт.

3

84074638

LOCKING TAB,Locking Wedge, Green

1шт.

4

515-25254

CLAMP,1", Insul, 1/2" Bolt

1шт.

5

87709809

ELEC CONNECTOR

Humidity & Temperature Sensor

1шт.

5

84130602

TERMINAL CONNECTOR

4шт.

6

82012083

WIRE CONNECTOR,Female

Grid Heater Control

1шт.

6

82012085

TERMINAL CONNECTOR,Female, Tin, 0.75 - 1.5mm

2шт.

7

84607243

ELEC CONNECTOR,Female, 2 Cavities

Air Filter Switch

1шт.

7

87702681

TERMINAL

2шт.

8

84380518

FUSE BOX

Load Center 6

1шт.

8

47609837

TERMINAL

Cavities, 1 - 11, 13 - 15, 17 - 20, 23 - 26, 29 - 36

30шт.

8

87686742

PLUG

Cavities, 12, 16, 21, 22, 28, 29, 37 - 48

18шт.

8

47563654

ELEC CONNECTOR

Cover

1шт.

8

84127702

FUSE,10A, Mini, Red

1шт.

8

84127704

FUSE,20A, Mini, Yellow

2шт.

8

84127705

FUSE,25A, Mini, White

1шт.

8

84127708

FUSE,30A, Mini, Green

1шт.

8

84152583

FUSE,7.5A, Mini, Brown

2шт.

8

84153830

FUSE,5A, Mini, Beige

1шт.

8

87312626

RELAY,24V

1шт.

8

87318986

RELAY,4 Pin, 24V

2шт.

9

84563565

FUSE HOLDER

Load Center 7

1шт.

9

84574203

TERMINAL

Cavities, 1 - 4, 9 - 12

8шт.

9

47563646

ELEC CONNECTOR

Cavities, 5 - 8

4шт.

9

47406522

RELAY,4 Pin, 24V

2шт.

9

47563654

ELEC CONNECTOR

Cover

1шт.

10

84253168

TERMINAL

Junction Stud, B+

1шт.

11

84399576

ELEC. TERMINAL PIN,5/16" Ring, 13mm - 19mm

Junction Stud, B+

1шт.

12

84186853

TERMINAL

Junction Stud, B+

1шт.

13

515-23254

CLAMP,1", Insul, 3/8" Bolt

1шт.

14

84399576

ELEC. TERMINAL PIN,5/16" Ring, 13mm - 19mm

Cab Power From Rear Stud

1шт.

15

84401295

TERMINAL

Starter

1шт.

16

84140737

TERMINAL CONNECTOR

Ground, Engine Block

1шт.

17

84140737

TERMINAL CONNECTOR

Ground, Engine Block

1шт.

18

84140737

TERMINAL CONNECTOR

Ground, Engine Block

1шт.

19

84399576

ELEC. TERMINAL PIN,5/16" Ring, 13mm - 19mm

Alternator B+

1шт.

19

87451484

BOOT

Insulator Cap

1шт.

20

8602487

PLUG

1шт.

20

84163444

TERMINAL

Cavities, 3, 4

2шт.

20

87714249

SEAL PROTECTION

Cavities, 1, 2, 5

3шт.

20

47476920

ELEC CONNECTOR

Cover

1шт.

21

84140737

TERMINAL CONNECTOR

Power Stud

1шт.

22

87687242

ELEC CONNECTOR,4 Way

Isolator

1шт.

22

82012085

TERMINAL CONNECTOR,Female, Tin, 0.75 - 1.5mm

Cavities, 1 - 3

3шт.

22

87680691

PLUG

Cavity, 4

1шт.

23

84140737

TERMINAL CONNECTOR

Ground, Engine Block

1шт.

24

84140737

TERMINAL CONNECTOR

Ground, Engine Block

1шт.

25

84426134

TERMINAL

Start Signal to Starter

1шт.

26

84401295

TERMINAL

Cab Power

1шт.

27

84607243

ELEC CONNECTOR,Female, 2 Cavities

Engine Coolant Temperature

1шт.

27

87702681

TERMINAL

2шт.

28

87694112

ELEC CONNECTOR,Female, 6 Pole

Disconect Switch

1шт.

28

87680656

CONTACT

Cavities, 1, 3, 4, 6

4шт.

28

84068583

PLUG,12 - 16 Ga, White

Cavities, 2, 5

2шт.

28

87694150

LOCKING TAB,Wedge Lock

1шт.

29

515-25190

CLAMP,3/4", Insul, 1/2" Bolt

1шт.

30

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

1шт.
